| 32000-14090 |
Converter Assy, Torque |

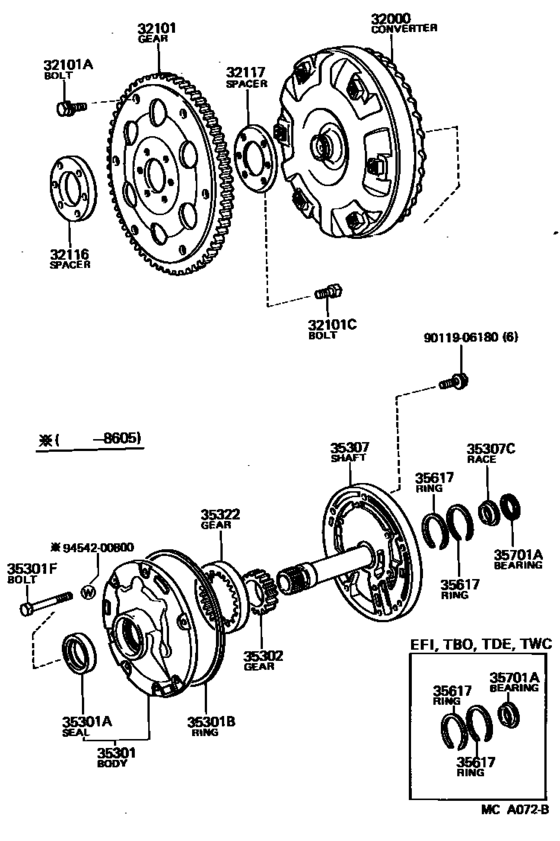

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 32000-14091 |
Converter Assy, Torque |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 32101-30051 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 32116-30020 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 32117-30020 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35301-30030 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35321-22010 |
Gear Sub-Assy, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35321-22090 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35322-22010 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35322-22090 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35370-22030 |
Shaft Sub-Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35370-22031 |
Shaft Sub-Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35617-16010 |
Ring, Oil Seal (For Overdrive Case) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 35789-22010 |
Race, Thrust Bearing(For Overdrive Planetary Gear) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90101-08042 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90105-08137 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90105-12014 |
Bolt, Hexagon(For Drive Plate Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90109-08107 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90109-08113 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90119-06180 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90119-08498 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90301-99010 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90311-38020 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90311-38129 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 90374-23012 |
Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 91611-60812 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 91611-B0812 |
Bolt |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
| 94542-00800 |
New Genuine Part |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1983 - ] (8308- )GS120,121,LS12#,MS120,123..ATM..DSL,E FI,LPG,TBO,TDE,TWC) |
