LS120

Toyota CROWN-MAJESTA · 1983 · 5,377 parts · 196 categories

← Back to categories

5,377 items

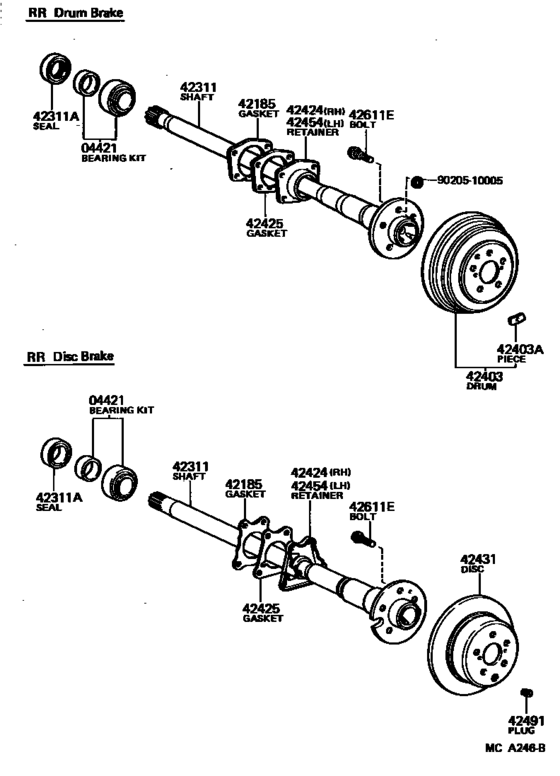

Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120) 18

#	OEM	Part name
4421	04421-30030	Bearing Kit, Rear Axle Shaft
4421	04421-30031	Bearing Kit, Rear Axle Shaft
42185	42185-30061	Gasket, Rear Axle Housing End
42311	42311-30070	Shaft, Rear Axle
42311	42311-30071	Shaft, Rear Axle
42311	90311-52059	Seal, Oil (For Rear Axle Shaft)
42311	90310-52001	Seal, Oil (For Rear Axle Shaft)
42403	42431-30111	Drum Sub-Assy, Rear Brake
42403	42431-30110	Drum Sub-Assy, Rear Brake
42403	42431-30230	Disc, Rear
42403	90937-01100	Piece, Balance (For Rear Brake Drum)
42403	90937-01117	Piece, Balance (For Rear Brake Drum)
42403	90937-01118	Piece, Balance (For Rear Brake Drum)
42403	90937-01119	Piece, Balance (For Rear Brake Drum)
42424	42424-30040	Retainer, Rear Axle Bearing, Outer, Rh
42425	42425-30031	Gasket, Rear Axle Bearing Retainer
42611	90942-02047	Bolt, Hub
9020510005	90205-10005	New Genuine Part

OEM	Part name	Category
04421-30030	Bearing Kit, Rear Axle Shaft	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
04421-30031	Bearing Kit, Rear Axle Shaft	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42185-30061	Gasket, Rear Axle Housing End	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42311-30070	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42311-30071	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42424-30040	Retainer, Rear Axle Bearing, Outer, Rh	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42425-30031	Gasket, Rear Axle Bearing Retainer	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42431-30110	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42431-30111	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
42431-30230	Disc, Rear	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90205-10005	New Genuine Part	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90310-52001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90311-52059	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90937-01100	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90937-01117	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90937-01118	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90937-01119	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([08.1983 - ] (8308- )GS120,126,LS12#,MS120,YS120)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 196
Collected: 2026-08-03
