Search › Model › LS111

LS111

Toyota CROWN-MAJESTA · 1982 · 4,639 parts · 167 categories

4,639 items

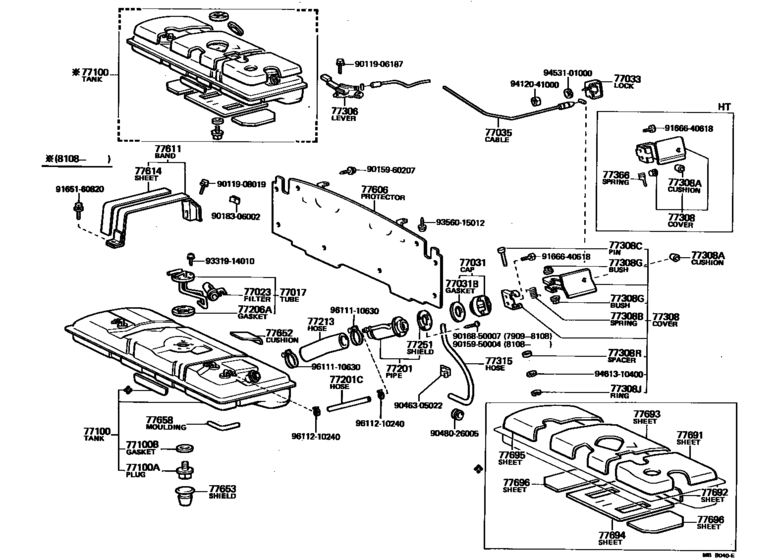

Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC) 58

#	OEM	Part name
77017	77017-30080	Tube Sub-Assy, Fuel And Evaporation Vent
77017	77017-30100	Tube Sub-Assy, Fuel And Evaporation Vent
77031	77310-35061	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77033	77033-14020	Lock Sub-Assy, Fuel Tank Cap
77035	77035-30040	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-39025	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77201	77201-30131	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-22015	Hose, Fuel(For Fuel Evaporative Separator)
77201	90445-22002	Hose, Fuel, No.1(For Fuel Tank)
77206	77169-14020	Gasket, Fuel Tank Vent
77213	77213-30030	Hose, Fuel Tank Sub Inlet
77251	77291-12010	Shield, Fuel Tank, Inlet, No.1
77306	77051-30030-03	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30030-04	Lever Sub-Assy, Fuel Lid Lock Open
77306	77051-30030-05	Lever Sub-Assy, Fuel Lid Lock Open
77308	77350-30100	Cover Sub-Assy, Fuel Inlet Box
77308	90541-06001	Cushion(For Fuel Inlet Box Cover)
77315	90446-09004	Hose, Fuel Filler Opening
77366	77366-30020	Spring, Fuel Filler Opening Lid Hinge
77606	77606-30130	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-30070	Band, Fuel Tank
77614	77616-30050	Seat, Fuel Tank Band
77652	77651-30050	Cushion, Fuel Tank, No.1
77653	77292-30020	Shield, Fuel Tank Drain Plug
77658	77658-30030	Moulding, Fuel Tank Edge
77691	77691-30010	Sheet, Fuel Tank Silencer, Upper No.1
77692	77692-30010	Sheet, Fuel Tank Silencer, Lower No.1
77692	77692-30020	Sheet, Fuel Tank Silencer, Lower No.1
77693	77693-30010	Sheet, Fuel Tank Silencer, Upper No.2
77694	77694-30010	Sheet, Fuel Tank Silencer, Lower No.2
77695	77695-30010	Sheet, Fuel Tank Silencer, Upper No.3
77695	77695-30020	Sheet, Fuel Tank Silencer, Upper No.3
77696	77696-30010	Sheet, Fuel Tank Silencer, Lower No.3
77696	77696-30020	Sheet, Fuel Tank Silencer, Lower No.3
9011906187	90119-06187	New Genuine Part
9011906187	90119-06490	BOLT W-WASHER
9011908019	90119-08019	Bolt, Stud(For Manifold To Carburetor)
9015950004	90159-50004	New Genuine Part
9015960207	90159-60207	New Genuine Part
9016850007	90168-50007	New Genuine Part
9018306002	90183-06002	Retainer, Fuel Filler Pipe Protector
9046305022	90463-05022	New Genuine Part
9048026005	90480-26005	New Genuine Part
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9166640618	91666-40618	New Genuine Part
9166640618	91661-60616	BOLT
9331914010	93319-14010	SCREW
9356015012	93560-15012	New Genuine Part
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9453101000	94531-01000	WASHER
9461310400	94613-10400	New Genuine Part
9611110630	96111-10630	Clamp, Hose
9611210240	96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
77001-39025	Tank Assy, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77017-30080	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77017-30100	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77033-14020	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77035-30040	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77051-30030-03	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77051-30030-04	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77051-30030-05	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77201-30131	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77213-30030	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77291-12010	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77292-30020	Shield, Fuel Tank Drain Plug	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77310-35061	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77350-30100	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77366-30020	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77601-30070	Band, Fuel Tank	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77606-30130	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77616-30050	Seat, Fuel Tank Band	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77651-30050	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77658-30030	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77691-30010	Sheet, Fuel Tank Silencer, Upper No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77692-30010	Sheet, Fuel Tank Silencer, Lower No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77692-30020	Sheet, Fuel Tank Silencer, Lower No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77693-30010	Sheet, Fuel Tank Silencer, Upper No.2	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77694-30010	Sheet, Fuel Tank Silencer, Lower No.2	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77695-30010	Sheet, Fuel Tank Silencer, Upper No.3	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77695-30020	Sheet, Fuel Tank Silencer, Upper No.3	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77696-30010	Sheet, Fuel Tank Silencer, Lower No.3	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
77696-30020	Sheet, Fuel Tank Silencer, Lower No.3	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90119-06187	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90119-06490	BOLT W-WASHER	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90119-08019	Bolt, Stud(For Manifold To Carburetor)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90159-50004	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90159-60207	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90168-50007	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90170-A0002	Nut	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90183-06002	Retainer, Fuel Filler Pipe Protector	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90445-22002	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90445-22015	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90446-09004	Hose, Fuel Filler Opening	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90463-05022	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90480-26005	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
90541-06001	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
91651-60820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
91661-60616	BOLT	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
91666-40618	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
93319-14010	SCREW	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
93560-15012	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
94120-41000	Nut(For Clutch Pedal Stopper)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
94531-01000	WASHER	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
94613-10400	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC)
