Search › Model › LS111

LS111

Toyota CROWN-MAJESTA · 1982 · 4,639 parts · 167 categories

4,639 items

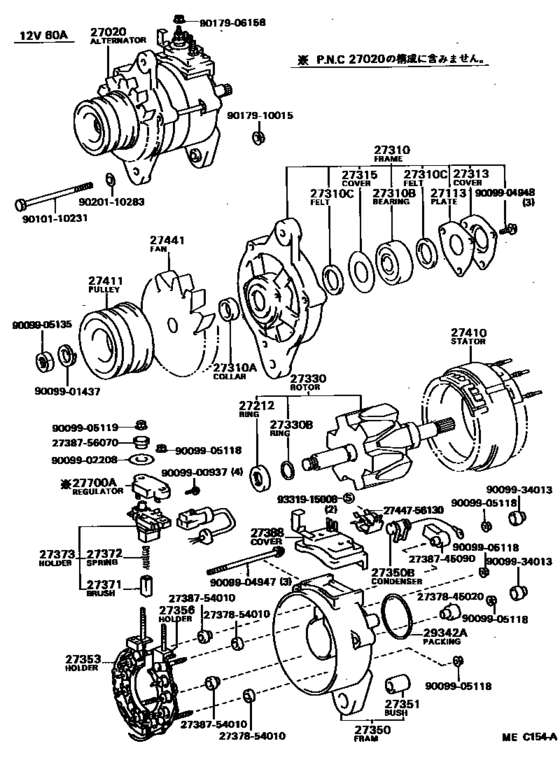

Alternator ([08.1982 - ] (8208- )2LT#) 51

#	OEM	Part name
27020	27020-54170	Alternator Assy
27113	27312-57060	Plate, Bearing Retainer, Alternator
27212	27333-57060	Ring, Space(For Alternator Rotor)
27310	27310-54130	Frame Assy, Drive End, Alternator
27310	27310-54131	Frame Assy, Drive End, Alternator
27310	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-64030	Rotor Assy, Alternator
27330	27330-64170	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27350	27350-54130	Frame Assy, Rectifier End
27350	90099-52082	Condenser, Alternator
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27353	27353-57070	Holder, W/rectifier Positive, Alternator
27353	27353-54180	Holder, W/rectifier Positive, Alternator
27356	27356-54170	Holder, W/rectifier Negative, Alternator
27356	27356-54180	Holder, W/rectifier Negative, Alternator
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27373	27373-57070	Holder, Alternator Brush, A
27388	27388-54070	Cover, Frame Brush
27411	27411-54170	Pulley, Alternator
27411	27411-54171	Pulley, Alternator
27441	27441-64030	Fan, Alternator
27700	27700-57060	Regulator Assy, Generator
27700	27700-64030	Regulator Assy, Generator
27700	90099-05118	New Genuine Part
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
2744756130	27447-56130	Clip, Alternator Cord
9009900937	90099-00937	New Genuine Part
9009901437	90099-01437	New Genuine Part
9009902208	90099-02208	New Genuine Part
9009904947	90099-04947	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905135	90099-05135	New Genuine Part
9009934013	90099-34013	Cap, Alternator Terminal
9010110231	90101-10231	Bolt(For Alternator)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910015	90179-10015	NUT
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9331915008	93319-15008	SCREW

OEM	Part name	Category
27020-54170	Alternator Assy	Alternator ([08.1982 - ] (8208- )2LT#)
27310-54130	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27310-54131	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([08.1982 - ] (8208- )2LT#)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([08.1982 - ] (8208- )2LT#)
27330-64030	Rotor Assy, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27330-64170	Rotor Assy, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([08.1982 - ] (8208- )2LT#)
27350-54130	Frame Assy, Rectifier End	Alternator ([08.1982 - ] (8208- )2LT#)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1982 - ] (8208- )2LT#)
27353-54180	Holder, W/rectifier Positive, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27353-57070	Holder, W/rectifier Positive, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27356-54170	Holder, W/rectifier Negative, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27356-54180	Holder, W/rectifier Negative, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27371-54412	Brush, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27371-56070	Brush, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27372-56070	Spring, Alternator Brush	Alternator ([08.1982 - ] (8208- )2LT#)
27373-57070	Holder, Alternator Brush, A	Alternator ([08.1982 - ] (8208- )2LT#)
27378-45020	Insulator, Alternator, No.1	Alternator ([08.1982 - ] (8208- )2LT#)
27378-54010	Insulator, Alternator, No.2	Alternator ([08.1982 - ] (8208- )2LT#)
27387-45090	Insulator, Terminal	Alternator ([08.1982 - ] (8208- )2LT#)
27387-54010	Insulator, Terminal	Alternator ([08.1982 - ] (8208- )2LT#)
27387-56070	Insulator, Terminal	Alternator ([08.1982 - ] (8208- )2LT#)
27388-54070	Cover, Frame Brush	Alternator ([08.1982 - ] (8208- )2LT#)
27411-54170	Pulley, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27411-54171	Pulley, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1982 - ] (8208- )2LT#)
27441-64030	Fan, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
27447-56130	Clip, Alternator Cord	Alternator ([08.1982 - ] (8208- )2LT#)
27700-57060	Regulator Assy, Generator	Alternator ([08.1982 - ] (8208- )2LT#)
27700-64030	Regulator Assy, Generator	Alternator ([08.1982 - ] (8208- )2LT#)
90099-00937	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-01437	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-02208	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([08.1982 - ] (8208- )2LT#)
90099-04947	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-04948	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-05118	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-05119	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-05135	New Genuine Part	Alternator ([08.1982 - ] (8208- )2LT#)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([08.1982 - ] (8208- )2LT#)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([08.1982 - ] (8208- )2LT#)
90099-14055	Packing, Vacuum Pump	Alternator ([08.1982 - ] (8208- )2LT#)
90099-34013	Cap, Alternator Terminal	Alternator ([08.1982 - ] (8208- )2LT#)
90099-52082	Condenser, Alternator	Alternator ([08.1982 - ] (8208- )2LT#)
90101-10231	Bolt(For Alternator)	Alternator ([08.1982 - ] (8208- )2LT#)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1982 - ] (8208- )2LT#)
90179-10015	NUT	Alternator ([08.1982 - ] (8208- )2LT#)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([08.1982 - ] (8208- )2LT#)
93319-15008	SCREW	Alternator ([08.1982 - ] (8208- )2LT#)
