Search › Model › LS110

LS110

Toyota CROWN-MAJESTA · 1979 · 5,871 parts · 186 categories

5,871 items

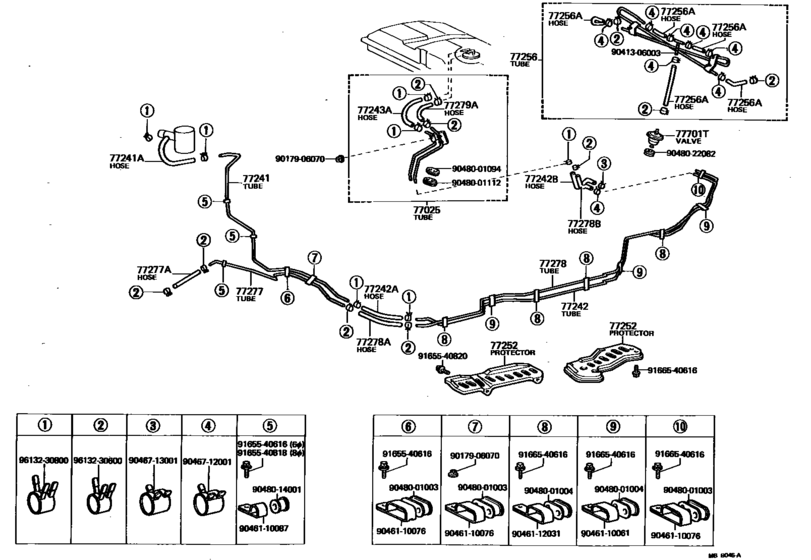

Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED) 51

#	OEM	Part name
77025	77025-30100	Tube Sub-Assy, Fuel Main & Return, Rear
77241	77252-30120	Tube, Fuel Main, No.1
77241	95335-08020	Hose, Fuel, No.1 (For Main Tube, No.1)
77241	95336-08020	Hose, Fuel Pipe Support To Regulator
77242	77253-30100	Tube, Fuel Main, No.2
77242	90445-14064	Hose, Fuel, No.1 (For Main Tube, No.2)
77242	77259-30070	Hose, Fuel, No.2 (For Main Tube, No.2)
77243	95332-08020	Hose, Fuel Pipe, No.1
77243	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77252	77266-30030	Protector, Fuel Tube
77252	77267-30040	Protector, Fuel Tube
77256	77028-30060	Tube, Fuel Emission, No.3
77256	95332-06010	Hose, Fuel Pipe, No.1
77256	95333-06010	Hose, Fuel
77256	95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77256	95337-06020	Hose, Differential Pressure Control
77256	95332-06030	Hose(For Carburetor)
77256	95333-06030	Hose, Fuel
77277	77256-30081	Tube, Fuel Return, No.1
77277	90447-12033	Hose, Fuel, No.1(For Return Tube, No.1) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77278	77257-30080	Tube, Fuel Return, No.2
77278	77279-30020	Hose, Fuel, No.2 (For Return Tube, No.2)
77701	90917-10020	Valve, Check (For Main Fuel Tank)
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9041306003	90413-06003	New Genuine Part
9046110061	90461-10061	New Genuine Part
9046110076	90461-10076	New Genuine Part
9046110087	90461-10087	New Genuine Part
9046112031	90461-12031	New Genuine Part
9046712001	90467-12001	Clip(For Carburetor Fuel Hose)
9046712001	96132-51100	Clip (For Hose)
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9048001003	90480-01003	New Genuine Part
9048001004	90480-01004	New Genuine Part
9048001094	90480-01094	New Genuine Part
9048001112	90480-01112	New Genuine Part
9048014001	90480-14001	New Genuine Part
9048022082	90480-22082	New Genuine Part
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9165540818	91655-40818	New Genuine Part
9165540818	91651-60816	BOLT
9165540820	91655-40820	New Genuine Part
9165540820	91653-40820	BOLT, W/WASHER
9166540616	91665-40616	Screw(For Steering Column Tube)
9166540616	90080-11247	New Genuine Part
9613230600	96132-30600	Clip(For Actuator Hose)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
77025-30100	Tube Sub-Assy, Fuel Main & Return, Rear	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77028-30060	Tube, Fuel Emission, No.3	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77252-30120	Tube, Fuel Main, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77253-30100	Tube, Fuel Main, No.2	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77256-30081	Tube, Fuel Return, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77257-30080	Tube, Fuel Return, No.2	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77259-30070	Hose, Fuel, No.2 (For Main Tube, No.2)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77266-30030	Protector, Fuel Tube	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77267-30040	Protector, Fuel Tube	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
77279-30020	Hose, Fuel, No.2 (For Return Tube, No.2)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90080-11247	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90413-06003	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90445-14064	Hose, Fuel, No.1 (For Main Tube, No.2)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90447-12033	Hose, Fuel, No.1(For Return Tube, No.1) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90461-10061	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90461-10076	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90461-10087	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90461-12031	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90467-12001	Clip(For Carburetor Fuel Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-01003	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-01004	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-01094	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-01112	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-14001	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90480-22082	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
90917-10020	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91651-60614	Bolt	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91651-60816	BOLT	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91653-40820	BOLT, W/WASHER	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91655-40616	Bolt	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91655-40818	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91655-40820	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
91665-40616	Screw(For Steering Column Tube)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95332-06030	Hose(For Carburetor)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95332-08020	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95335-08020	Hose, Fuel, No.1 (For Main Tube, No.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95336-08020	Hose, Fuel Pipe Support To Regulator	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
96135-51300	Clamp, Hose	Fuel Tank & Tube ([09.1979 - ] (7909- )LS110,111..HT,SED)
