LS110

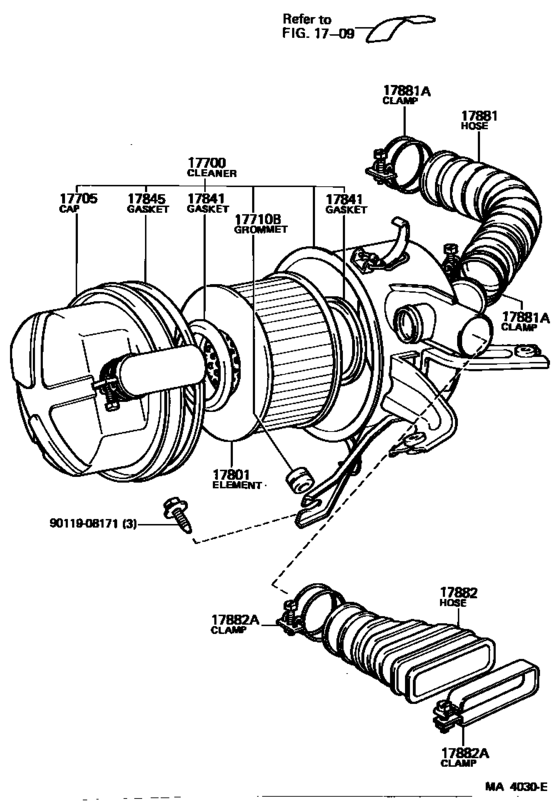

Air Cleaner ([09.1979 - ] (7909- )L) 13
| # | OEM | Part name |
|---|---|---|
| 17700 | 17710-54040 | Cleaner Assy, Air |
| 17705 | 17705-54020 | Cap Sub-Assy, Air Cleaner |
| 17710 | 90480-16009 | Grommet |
| 17801 | 17801-54010 | Element Sub-Assy, Air Cleaner Filter |
| 17841 | 17841-54010 | Gasket, Filter Element |
| 17845 | 17845-54010 | Gasket, Air Cleaner Cap |
| 17881 | 17881-54040 | Hose, Air Cleaner, No.1 |
| 17881 | 96111-10690 | Clamp, Hose |
| 17882 | 17882-54040 | Hose, Air Cleaner, No.2 |
| 17882 | 90460-01008 | Clamp(For Air Cleaner Hose, No.2) |
| 17882 | 96111-10670 | Clamp, Hose |
| 9011908171 | 90119-08171 | New Genuine Part |
| 9011908171 | 90119-08806 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 17705-54020 | Cap Sub-Assy, Air Cleaner | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17710-54040 | Cleaner Assy, Air | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17801-54010 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17841-54010 | Gasket, Filter Element | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17845-54010 | Gasket, Air Cleaner Cap | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17881-54040 | Hose, Air Cleaner, No.1 | Air Cleaner ([09.1979 - ] (7909- )L) |
| 17882-54040 | Hose, Air Cleaner, No.2 | Air Cleaner ([09.1979 - ] (7909- )L) |
| 90119-08171 | New Genuine Part | Air Cleaner ([09.1979 - ] (7909- )L) |
| 90119-08806 | BOLT WWASHER | Air Cleaner ([09.1979 - ] (7909- )L) |
| 90460-01008 | Clamp(For Air Cleaner Hose, No.2) | Air Cleaner ([09.1979 - ] (7909- )L) |
| 90480-16009 | Grommet | Air Cleaner ([09.1979 - ] (7909- )L) |
| 96111-10670 | Clamp, Hose | Air Cleaner ([09.1979 - ] (7909- )L) |
| 96111-10690 | Clamp, Hose | Air Cleaner ([09.1979 - ] (7909- )L) |
