Search › Model › LN55

LN55

Toyota HILUX-4RUNNER-TRUCK · 1983 · 3,424 parts · 142 categories

3,424 items

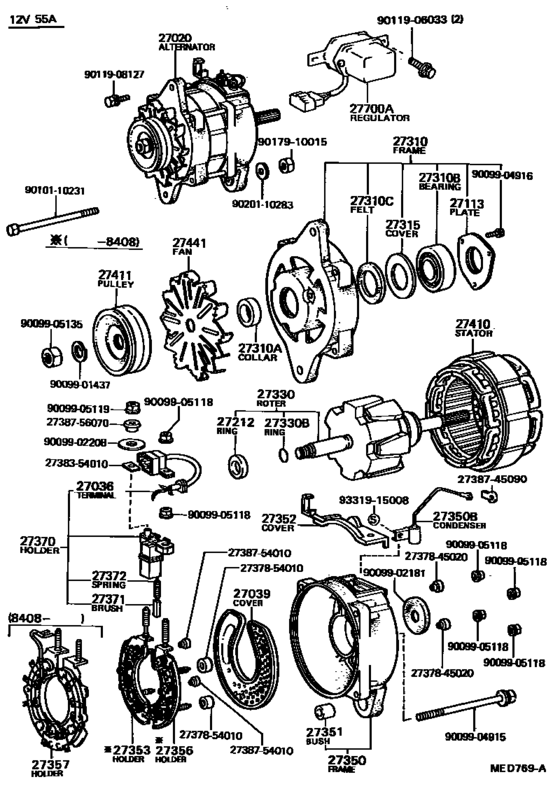

Alternator ([11.1983 - 08.1985] (8311-8508)L) 54

#	OEM	Part name
27020	27020-54012	Alternator Assy
27036	27036-54010	Terminal Sub-Assy, Lead Wire, Alternator
27039	27039-56090	Cover, Alternator Rear End
27113	27312-56070	Plate, Bearing Retainer, Alternator
27212	27412-54040	Ring, Space(For Alternator Rotor)
27310	27310-54012	Frame Assy, Drive End, Alternator
27310	27310-54080	Frame Assy, Drive End, Alternator
27310	90099-19251	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10120	Bearing(For Alternator Drive End Frame)
27310	90099-02207	Felt(For Alternator Drive End Frame)
27315	27315-56070	Cover, Alternator Felt, Inner No.1
27330	27330-54011	Rotor Assy, Alternator
27330	90099-07108	Ring, Snap(For Alternator Rotor)
27350	27350-54010	Frame Assy, Rectifier End
27350	27350-57061	Frame Assy, Rectifier End
27350	90099-52066	Condenser, Alternator
27350	90099-52035	Condenser, Alternator - RECTIFIER END
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27352	27388-54011	Cover, Frame Brush
27353	27353-54010	Holder, W/rectifier Positive, Alternator
27356	27356-54010	Holder, W/rectifier Negative, Alternator
27357	27357-64060	Holder, Alternator, W/rectifier
27370	27370-54010	Holder Assy, Alternator Brush
27370	27370-54250	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27410	27410-43040	Stator Assy, Alternator
27410	27410-64010	Stator Assy, Alternator
27411	27411-54020	Pulley, Alternator
27441	27441-54040	Fan, Alternator
27700	27700-72030	Regulator Assy, Generator
27700	27700-63010	Regulator Assy, Generator
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9009901437	90099-01437	New Genuine Part
9009902181	90099-02181	Felt (For Alternator Rectifier End Frame)
9009902208	90099-02208	New Genuine Part
9009904915	90099-04915	New Genuine Part
9009904916	90099-04916	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905135	90099-05135	New Genuine Part
9010110231	90101-10231	Bolt(For Alternator)
9011906033	90119-06033	Bolt
9011906033	90119-06157	Bolt
9011908127	90119-08127	BOLT
9017910015	90179-10015	NUT
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9331915008	93319-15008	SCREW

OEM	Part name	Category
27020-54012	Alternator Assy	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27036-54010	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27039-56090	Cover, Alternator Rear End	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27310-54012	Frame Assy, Drive End, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27310-54080	Frame Assy, Drive End, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27312-56070	Plate, Bearing Retainer, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27315-56070	Cover, Alternator Felt, Inner No.1	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27330-54011	Rotor Assy, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27350-54010	Frame Assy, Rectifier End	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27350-57061	Frame Assy, Rectifier End	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27353-54010	Holder, W/rectifier Positive, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27356-54010	Holder, W/rectifier Negative, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27357-64060	Holder, Alternator, W/rectifier	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27370-54010	Holder Assy, Alternator Brush	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27370-54250	Holder Assy, Alternator Brush	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27371-54412	Brush, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27371-56070	Brush, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27372-56070	Spring, Alternator Brush	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27378-45020	Insulator, Alternator, No.1	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27378-54010	Insulator, Alternator, No.2	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27387-45090	Insulator, Terminal	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27387-54010	Insulator, Terminal	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27387-56070	Insulator, Terminal	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27388-54011	Cover, Frame Brush	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27410-43040	Stator Assy, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27410-64010	Stator Assy, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27411-54020	Pulley, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27412-54040	Ring, Space(For Alternator Rotor)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27441-54040	Fan, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27700-63010	Regulator Assy, Generator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
27700-72030	Regulator Assy, Generator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-01437	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-02181	Felt (For Alternator Rectifier End Frame)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-02207	Felt(For Alternator Drive End Frame)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-02208	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-04915	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-04916	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-05118	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-05119	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-05135	New Genuine Part	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-07108	Ring, Snap(For Alternator Rotor)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-10120	Bearing(For Alternator Drive End Frame)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-19251	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-52035	Condenser, Alternator - RECTIFIER END	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90099-52066	Condenser, Alternator	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90101-10231	Bolt(For Alternator)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90119-06033	Bolt	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90119-06157	Bolt	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90119-08127	BOLT	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90179-10015	NUT	Alternator ([11.1983 - 08.1985] (8311-8508)L)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([11.1983 - 08.1985] (8311-8508)L)
93319-15008	SCREW	Alternator ([11.1983 - 08.1985] (8311-8508)L)

Source: Public OEM parts-catalog data
Variants: 2 / 42
Category: 142
Collected: 2026-08-03
