LN40

Toyota HILUX-4RUNNER-TRUCK · 1979 · 3,346 parts · 159 categories

3,346 items

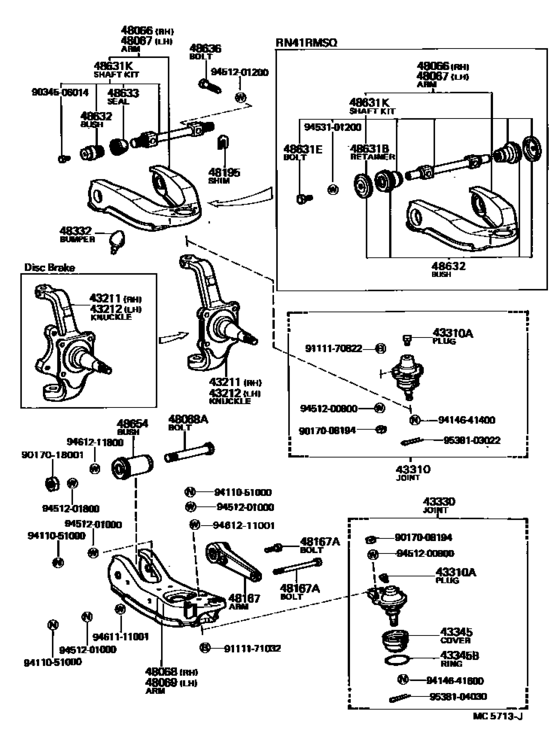

Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41) 46

#	OEM	Part name
43211	43211-26020	Knuckle, Steering, Rh
43211	43211-26030	Knuckle, Steering, Rh
43212	43212-26010	Knuckle, Steering, Lh
43310	43360-39055	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-39045	Joint Assy, Lower Ball, Front
43330	43340-39075	Joint Assy, Lower Ball, Front
43345	43345-35010	Cover, Lower Ball Joint Dust
43345	90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)
43345	90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)
48066	48066-35030	Arm Sub-Assy, Front Suspension, Upper Rh
48068	48605-35050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90114-18001	Bolt(For Front Suspension Lower Arm)
48069	48606-35050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48167-35010	Arm, Torque
48167	90101-10389	Bolt(For Torque Arm Setting)
48167	91111-51025	Bolt(For Torque Arm Setting)
48167	91112-61025	Bolt(For Clutch Pedal Stopper)
48195	90565-12023	Shim, Camber Adjust
48195	90565-12024	Shim, Camber Adjust
48195	90565-12025	Shim, Camber Adjust
48332	48332-35010	Bumper, Front Spring, No.2
48631	04485-35020	Shaft Kit, Upper Suspension Arm
48632	48632-30012	Bush, Upper Arm
48633	48633-35010	Seal, Upper Arm Pivot Dust
48636	90101-12036	Bolt, Upper Arm Set
48654	48654-35010	Bush, Lower Arm
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9017018001	90170-18001	NUT
9111170822	91111-70822	New Genuine Part
9111171032	91111-71032	New Genuine Part
9111171032	91112-71030	New Genuine Part
9411051000	94110-51000	Nut(For Steering Center Arm)
9414641400	94146-41400	Nut, Castle(For Tie Rod End)
9414641600	94146-41600	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9451201800	94512-01800	WASHER
9453101200	94531-01200	WASHER
9461111001	94611-11001	Plate, Rear Seat Back Stopper
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9461211800	94612-11800	Washer (For Shift & Select Lever Shaft)
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN

OEM	Part name	Category
04485-35020	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43211-26020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43211-26030	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43212-26010	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43330-39045	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43340-39075	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43345-35010	Cover, Lower Ball Joint Dust	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
43360-39055	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48066-35030	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48167-35010	Arm, Torque	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48332-35010	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48605-35050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48606-35050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48632-30012	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48633-35010	Seal, Upper Arm Pivot Dust	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
48654-35010	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90101-10389	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90101-12036	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90114-18001	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90170-18001	NUT	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90565-12023	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90565-12024	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90565-12025	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
91111-51025	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
91111-70822	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
91111-71032	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
91112-61025	Bolt(For Clutch Pedal Stopper)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
91112-71030	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94110-51000	Nut(For Steering Center Arm)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94130-00802	Nut, No.1 (For Center Support Bearing)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94146-41400	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94146-41600	New Genuine Part	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94512-01200	Washer	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94512-01800	WASHER	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94531-01200	WASHER	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94611-11001	Plate, Rear Seat Back Stopper	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
94612-11800	Washer (For Shift & Select Lever Shaft)	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([08.1978 - ] (7808- )LN30,40,RN30,31,40,41)

Source: Public OEM parts-catalog data
Variants: 2 / 55
Category: 159
Collected: 2026-08-03
