Search › Model › LN40

LN40

Toyota HILUX-4RUNNER-TRUCK · 1979 · 3,346 parts · 159 categories

3,346 items

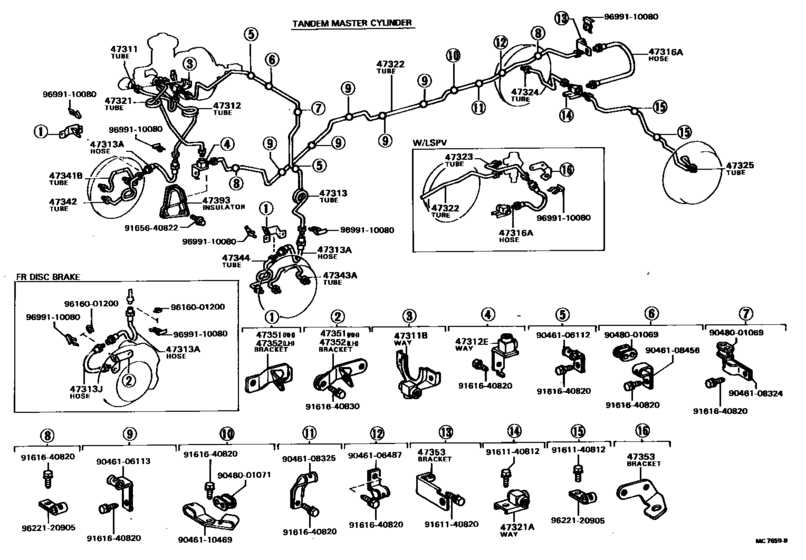

Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD) 45

#	OEM	Part name
47311	47311-35310	Tube, Front Brake, No.1
47311	90413-10058	Way, No.1(For Front Brake Tube)
47312	47312-35200	Tube, Front Brake, No.2
47312	90412-10049	Way, No.2(For Front Brake Tube)
47313	47313-35121	Tube, Front Brake, No.3
47313	90947-02382	Hose, Flexible, No.1(For Front)
47313	96960-32405	Hose, Flexible, No.2(For Front)
47316	96910-34005	Hose, Flexible(For Rear Brake Tube)
47321	47321-35110	Tube, Rear Brake, No.1
47321	90413-10054	Way(For Rear Brake Tube)
47322	47322-35040	Tube, Rear Brake, No.2
47322	47322-35041	Tube, Rear Brake, No.2
47323	47323-35020	Tube, Rear Brake, No.4 - REAR BRAKE, NO.3
47324	47324-35010	Tube, Rear Brake, No.4
47324	47324-35140	Tube, Rear Brake, No.4
47325	47325-35020	Tube, Rear Brake, No.5
47325	47325-35150	Tube, Rear Brake, No.5
47351	47354-35030	Bracket, Flexible Hose(For Front Rh)
47351	47354-35042	Bracket, Flexible Hose(For Front Rh)
47352	47355-35030	Bracket, Flexible Hose(For Front Lh)
47352	47355-35042	Bracket, Flexible Hose(For Front Lh)
47353	47352-35060	Bracket, Flexible Hose(For Rear)
47393	47393-35030	Insulator, Brake Tube Heat
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046106113	90461-06113	Clamp, Brake Tube, No.2
9046106487	90461-06487	New Genuine Part
9046106487	90461-08567	New Genuine Part
9046108324	90461-08324	New Genuine Part
9046108325	90461-08325	New Genuine Part
9046108456	90461-08456	New Genuine Part
9046110469	90461-10469	New Genuine Part
9048001069	90480-01069	Grommet(For Brake Tube)
9048001071	90480-01071	Grommet, No.2(For Front Brake Tube)
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9161640830	91616-40830	Bolt(For Clutch Release Cylinder Setting)
9161640830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9616001200	96160-01200	Ring, E(For Clutch Release Cable)
9622120905	96221-20905	New Genuine Part
9622120905	96221-34905	Clamp
9699110080	96991-10080	CLIP

OEM	Part name	Category
47311-35310	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47312-35200	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47313-35121	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47321-35110	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47322-35040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47322-35041	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47323-35020	Tube, Rear Brake, No.4 - REAR BRAKE, NO.3	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47324-35010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47324-35140	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47325-35020	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47325-35150	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47352-35060	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47354-35030	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47354-35042	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47355-35030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47355-35042	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
47393-35030	Insulator, Brake Tube Heat	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90412-10049	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90413-10054	Way(For Rear Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90413-10058	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-06113	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-06487	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-08324	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-08325	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-08456	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-08567	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90461-10469	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90480-01071	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
90947-02382	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91611-B0812	Bolt	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91616-40830	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91651-60818	BOLTWWASHER	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
91656-40822	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96221-20905	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96221-34905	Clamp	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96910-34005	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96960-32405	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
96991-10080	CLIP	Brake Tube & Clamp ([09.1979 - ] (7909- )LN30,40..RHD)
