LN36

Toyota HILUX-4RUNNER-TRUCK · 1981 · 4,619 parts · 189 categories

4,619 items

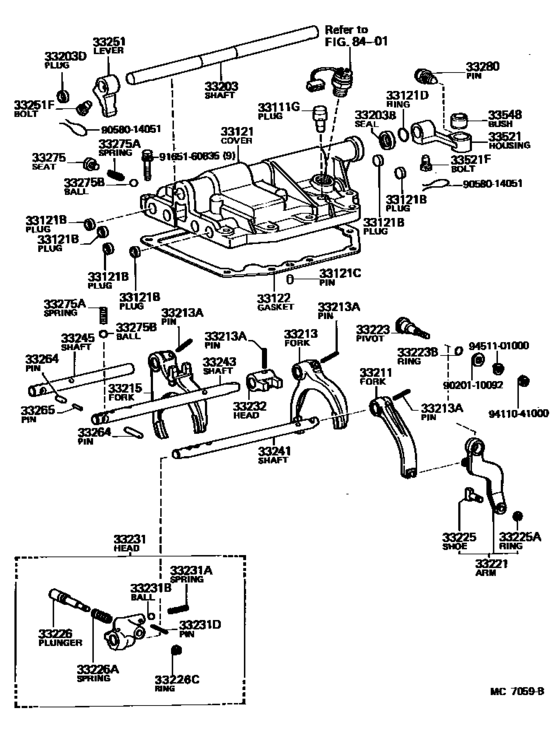

Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F) 51

#	OEM	Part name
33111	90930-03065	Plug, Breather(For Manual Transmission)
33121	33121-35080	Cover, Manual Transmission Case
33121	90331-14003	Plug(For Transmission Case)
33121	90331-14004	Plug, Manual Transmission Case
33121	90250-10214	Pin, Straight(For End Plate)
33121	90301-23003	Ring, O(For Transmission Case)
33122	33122-35020	Gasket, Manual Transmission Case Cover
33203	33261-35070	Shaft Sub-Assy, Shift Lever, No.1
33203	90312-17001	Seal, Oil(For Transfer Adapter)
33203	90331-16050	Plug(For Transmission Case)
33203	96411-11600	Plug
33211	33211-35020	Fork, Reverse Shift
33213	33212-35010	Fork, 1St & 2Nd Shift
33213	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
33215	33213-35020	Fork, 3Rd & 4Th Shift
33221	33201-35020	Arm, Reverse Shift
33223	33223-35020	Pivot, Shift Arm
33223	96710-01010	Ring, O(For Oil Pump)
33223	96711-19010	Ring, O(For Oil Level Gage Guide)
33225	33225-35020	Shoe, Shift Arm
33225	90520-08098	Ring, Shaft Snap(For Shift Arm Shoe)
33226	33226-35011	Plunger, Reverse Shift Return
33226	90501-14046	Spring, Compression(For Reverse Shift Return Plunger)
33226	90501-14074	Spring, Compression(For Reverse Shift Return Plunger)
33226	90520-06001	Ring, Shaft Snap(For Reverse Shift Return Plunger)
33231	33202-35010	Head, Reverse Shift
33231	90501-10046	Spring, Reverse Shift Restrict
33231	90501-12046	Spring, Reverse Shift Restrict
33231	90360-06004	Ball, Detent(For Gear Shift Head No.4)
33231	90080-36191	Ball, Check Valve
33231	90254-03050	Pin, Slotted Spring
33232	33232-35010	Head, 1St & 2Nd Shift
33241	33245-35030	Shaft, Reverse Shift Fork
33243	33242-35010	Shaft, 1St & 2Nd Shift Fork
33245	33243-28010	Shaft, 3Rd & 4Th Shift Fork
33251	33251-35050	Lever, Shift & Select
33251	33218-35010	Bolt, Shift Lever Lock
33264	90361-10001	Pin, Or Ball, Shift Inter Lock, No.1
33264	90361-10008	Pin, Or Ball, Shift Inter Lock, No.1
33265	90250-05010	Pin, Shift Inter Lock, No.2
33275	90341-12003	Seat, Shift Detent Ball Spring, No.1
33275	90501-13006	Spring, Compression (For Shift Detent Ball Low Side)
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33280	33280-20010	Pin Assy, Reverse Restrict
33521	33521-35060	Housing, Shift Lever
33548	33548-31010	Bush, Shift Lever
9020110092	90201-10092	Washer, Plate(For Cylinder Head Set)
9058014051	90580-14051	Wire (For Shift & Select Lever)
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9411041000	94110-41000	Nut(For Steering Damper)
9451101000	94511-01000	Washer(For Rear Drive Shaft)

OEM	Part name	Category
33121-35080	Cover, Manual Transmission Case	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33122-35020	Gasket, Manual Transmission Case Cover	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33201-35020	Arm, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33202-35010	Head, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33211-35020	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33212-35010	Fork, 1St & 2Nd Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33213-35020	Fork, 3Rd & 4Th Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33218-35010	Bolt, Shift Lever Lock	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33223-35020	Pivot, Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33225-35020	Shoe, Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33226-35011	Plunger, Reverse Shift Return	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33232-35010	Head, 1St & 2Nd Shift	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33242-35010	Shaft, 1St & 2Nd Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33243-28010	Shaft, 3Rd & 4Th Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33245-35030	Shaft, Reverse Shift Fork	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33251-35050	Lever, Shift & Select	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33261-35070	Shaft Sub-Assy, Shift Lever, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33280-20010	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33521-35060	Housing, Shift Lever	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
33548-31010	Bush, Shift Lever	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90080-36191	Ball, Check Valve	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90201-10092	Washer, Plate(For Cylinder Head Set)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90250-05010	Pin, Shift Inter Lock, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90250-10214	Pin, Straight(For End Plate)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90254-03050	Pin, Slotted Spring	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90301-23003	Ring, O(For Transmission Case)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90312-17001	Seal, Oil(For Transfer Adapter)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90331-14003	Plug(For Transmission Case)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90331-14004	Plug, Manual Transmission Case	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90331-16050	Plug(For Transmission Case)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90341-12003	Seat, Shift Detent Ball Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90360-06004	Ball, Detent(For Gear Shift Head No.4)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90361-10001	Pin, Or Ball, Shift Inter Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90361-10008	Pin, Or Ball, Shift Inter Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90501-10046	Spring, Reverse Shift Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90501-12046	Spring, Reverse Shift Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90501-13006	Spring, Compression (For Shift Detent Ball Low Side)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90501-14046	Spring, Compression(For Reverse Shift Return Plunger)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90501-14074	Spring, Compression(For Reverse Shift Return Plunger)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90520-06001	Ring, Shaft Snap(For Reverse Shift Return Plunger)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90520-08098	Ring, Shaft Snap(For Shift Arm Shoe)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90580-14051	Wire (For Shift & Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
90930-03065	Plug, Breather(For Manual Transmission)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
94110-41000	Nut(For Steering Damper)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
94511-01000	Washer(For Rear Drive Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
96411-11600	Plug	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
96710-01010	Ring, O(For Oil Pump)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
96711-19010	Ring, O(For Oil Level Gage Guide)	Gear Shift Fork & Lever Shaft (Mtm) ([03.1981 - 07.1983] (8103-8307)LN36,46..4F)
