Search › Model › LN36

LN36

Toyota HILUX-4RUNNER-TRUCK · 1981 · 4,619 parts · 189 categories

4,619 items

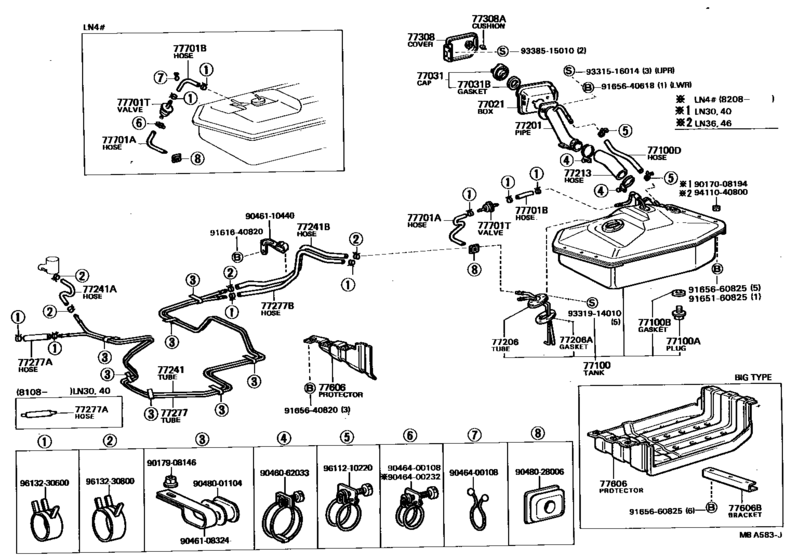

Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#) 62

#	OEM	Part name
77021	65507-89108	Box Assy, Fuel Tank Inlet
77031	77310-35060	Cap Assy, Fuel Tank
77031	77310-35061	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77100	77100-35150	Tank Assy, Fuel
77100	77100-35151	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-21883	Hose, Fuel, No.1(For Fuel Tank)
77201	77201-35101	Pipe Sub-Assy, Fuel Tank Inlet
77206	77203-35160	Tube Sub-Assy, Fuel Tank Suction
77206	83361-20030	Gasket, Fuel Tank Vent
77213	77213-35030	Hose, Fuel Tank Sub Inlet
77241	77251-35200	Tube, Fuel Main, No.1
77241	95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95332-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95333-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77277	77255-35110	Tube, Fuel Return, No.1
77277	90445-12086	Hose, Fuel, No.2 (For Emission Tube, No.1)
77277	95333-06030	Hose, Fuel
77277	95332-06030	Hose(For Carburetor)
77277	90445-12081	Hose, Fuel, No.2(For Return Tube, No.1)
77277	95333-06100	Hose (L=1000)
77308	77305-89101	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08003	Cushion(For Inspection Opening)
77606	77161-35010	Protector Sub-Assy, Fuel Tank, No.1
77606	77161-35020	Protector Sub-Assy, Fuel Tank, No.1
77606	77162-35010	Bracket, Fuel Tank Protector, Side
77701	77754-35110	Hose, Fuel, No.1 (For Breather Valve)
77701	95332-06010	Hose, Fuel Pipe, No.1
77701	95333-06010	Hose, Fuel
77701	90917-10054	Valve, Check (For Main Fuel Tank)
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9046062033	90460-62033	Clamp(For Air Cleaner Hose, No.1)
9046062033	96111-10620	Clamp, Hose(For Air Connector)
9046108324	90461-08324	New Genuine Part
9046110440	90461-10440	New Genuine Part
9046400108	90464-00108	New Genuine Part
9046400232	90464-00232	New Genuine Part
9048001104	90480-01104	New Genuine Part
9048028006	90480-28006	New Genuine Part
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9165640618	91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618	91651-60614	Bolt
9165640820	91656-40820	BOLT
9165640820	91651-60816	BOLT
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9331516014	93315-16014	Screw
9331914010	93319-14010	SCREW
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9411040800	94110-40800	Nut(For Steering Damper)
9611210220	96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
65507-89108	Box Assy, Fuel Tank Inlet	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77100-35150	Tank Assy, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77100-35151	Tank Assy, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77161-35010	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77161-35020	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77162-35010	Bracket, Fuel Tank Protector, Side	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77201-35101	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77203-35160	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77213-35030	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77251-35200	Tube, Fuel Main, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77255-35110	Tube, Fuel Return, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77305-89101	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77310-35060	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77310-35061	Cap Assy, Fuel Tank	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
77754-35110	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
83361-20030	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90179-08146	Nut	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90179-08204	Nut	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90445-12081	Hose, Fuel, No.2(For Return Tube, No.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90445-12086	Hose, Fuel, No.2 (For Emission Tube, No.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90445-21883	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90460-62033	Clamp(For Air Cleaner Hose, No.1)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90461-08324	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90461-10440	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90464-00108	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90464-00232	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90480-01104	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90480-28006	New Genuine Part	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90541-08003	Cushion(For Inspection Opening)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
90917-10054	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91651-60614	Bolt	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91651-60816	BOLT	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91656-40820	BOLT	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
93315-16014	Screw	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
93319-14010	SCREW	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
93385-15010	Screw(For Steering Tilt Lever)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
94110-40800	Nut(For Steering Damper)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95332-06030	Hose(For Carburetor)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95332-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95333-06100	Hose (L=1000)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
95333-08060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96111-10620	Clamp, Hose(For Air Connector)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([09.1979 - ] (7909- )LN3#,4#)
