LN170

Toyota HILUX-4RUNNER-TRUCK · 1997 · 4,439 parts · 201 categories
LN170 ×

← Back to categories

4,439 items

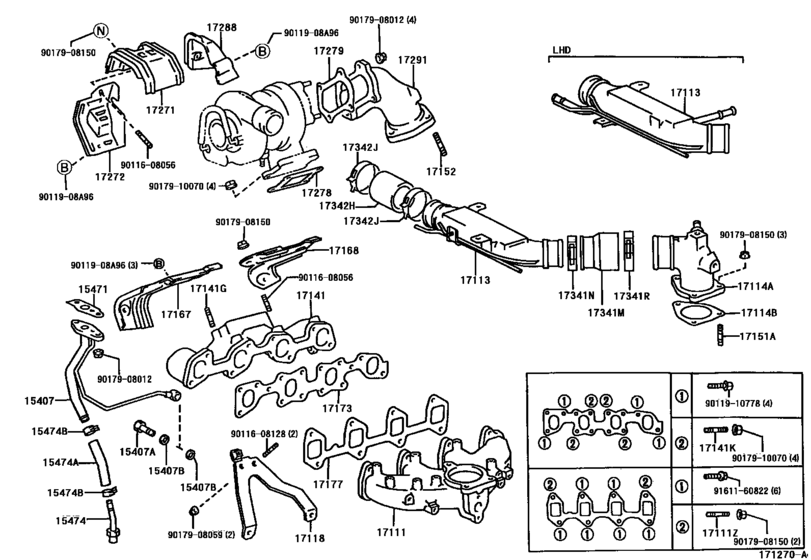

Manifold ([08.1997 - 05.1998] (9708-9805)2LT) 57
#OEMPart name
15407 15407-54040 Pipe Sub-Assy, Turbo Oil Inlet
15407 15407-54041 Pipe Sub-Assy, Turbo Oil Inlet
15407 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 96341-11000 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 90430-10035 Gasket(For Water Hole)
15407 90904-30004 Gasket(For Turbo Oil Inlet Pipe)
15471 15471-58010 Gasket, Turbo Oil Inlet
15474 15476-54020 Pipe, Turbo Oil Outlet
15474 15491-54020 Hose, Turbo Oil Outlet
15474 90467-26003 Clamp Or Clip(For Turbo Oil Outlet Hose)
15474 90467-26007 Clip(For Ventilation Hose No.2)
17111 17101-54092 Manifold, Intake
17111 17101-54101 Manifold, Intake
17111 90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)
17113 17103-54120 Pipe, Intake
17113 17113-54140 Pipe, Intake
17114 17114-54100 Flange, Intake
17114 17116-54021 Gasket, Intake Flange
17114 17116-54030 Gasket, Intake Flange
17118 17118-54040 Stay, Manifold
17141 17141-54100 Manifold, Exhaust
17141 17141-54140 Manifold, Exhaust
17141 90116-10094 Bolt, Stud(For Turbine Housing)
17141 90116-10140 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17151 90116-08293 Bolt, Stud(For Manifold To Venturi)
17152 90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)
17167 17167-54100 Insulator, Exhaust Manifold Heat, No.1
17168 17168-54040 Insulator, Exhaust Manifold Heat, No.2
17173 17173-54050 Gasket, Exhaust Manifold To Head
17177 17177-54021 Gasket, Intake Manifold To Head, No.1
17271 17271-54060 Insulator, Turbo, No.1
17271 17271-54100 Insulator, Turbo, No.1
17272 17272-54050 Insulator, Turbo, No.2
17278 17278-54021 Gasket, Turbo To Exhaust Manifold
17279 17279-54020 Gasket, Turbine Outlet Elbow
17279 17279-64010 Gasket, Turbine Outlet Elbow
17288 17288-54011 Insulator, Turbo, No.3
17291 17291-54060 Elbow, Turbine Outlet
17291 17291-54090 Elbow, Turbine Outlet
17341 17341-54010 Hose, Air, No.1
17341 90467-56001 Clamp Or Clip(For Air Hose, No.1)
17341 90467-60001 Clamp Or Clip(For Air Hose, No.1)
17342 17342-54020 Hose, Air, No.2
17342 17342-54030 Hose, Air, No.2(For Turbocharger)
17342 90467-48002 Clamp Or Clip(For Air Hose, No.1)
17342 90467-53002 Clamp, Hose
9011908 90119-08A96 BOLT WWASHER
9011608056 90116-08056 Bolt, Stud(For Manifold Stay)
9011608128 90116-08128 Bolt, Stud(For Manifold Stay)
9011910778 90119-10778 BOLT W-WASHER
9017908012 90179-08012 NUT
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9017908150 90179-08150 NUT
9017910070 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
9017910070 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
9161160822 91611-60822 Bolt
