Search › Model › LN110

LN110

Toyota HILUX-4RUNNER-TRUCK · 1988 · 6,237 parts · 217 categories
LN110 ×

← Back to categories

6,237 items

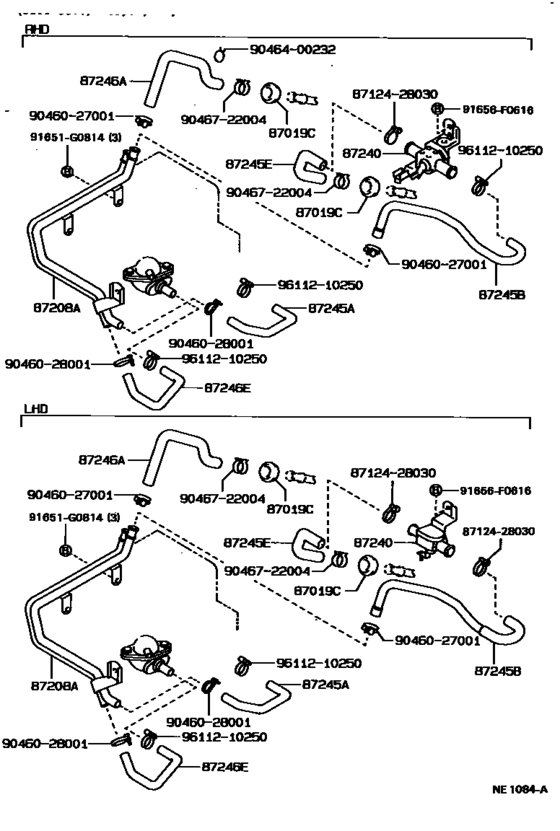

Heating & Air Conditioning - Water Piping ([08.1988 - 10.1988] (8808-8810)LN105,110,85,90..JPP) 23
#OEMPart name
87019 90480-36005 Grommet, Heater Hose
87208 87208-89136 Pipe Sub-Assy, Heater Water, A
87208 87207-89102 Pipe Sub-Assy, Heater Water, A
87208 87208-89143 Pipe Sub-Assy, Heater Water, A
87208 87208-89144 Pipe Sub-Assy, Heater Water, A
87240 87240-89125 Valve Assy, Heater Water
87245 87245-89238 Hose, Heater Water, Inlet A
87245 87245-89279 Hose, Heater Water, Inlet A
87245 87245-89281 Hose, Heater Water, Inlet B
87245 87245-89232 Hose, Heater Water, Inlet E
87246 87245-89242 Hose, Heater Water, Outlet A
87246 87245-89239 Hose, Heater Water, Outlet E
87246 87245-89280 Hose, Heater Water, Outlet E
91651 91651-G0814 New Genuine Part
91656 91656-F0616 New Genuine Part
91656 90119-06482 New Genuine Part
8712428030 87124-28030 Clamp, Heater
9046027001 90460-27001 Clamp Or Clip, Hose(for Water By-pass Hose)
9046027001 90467-21010 Clip(For Ventilation Hose No.2)
9046028001 90460-28001 New Genuine Part
9046400232 90464-00232 New Genuine Part
9046722004 90467-22004 Clip(For Ventilation Hose No.2)
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
