LN110

Toyota HILUX-4RUNNER-TRUCK · 1988 · 6,237 parts · 217 categories
LN110 ×

← Back to categories

6,237 items

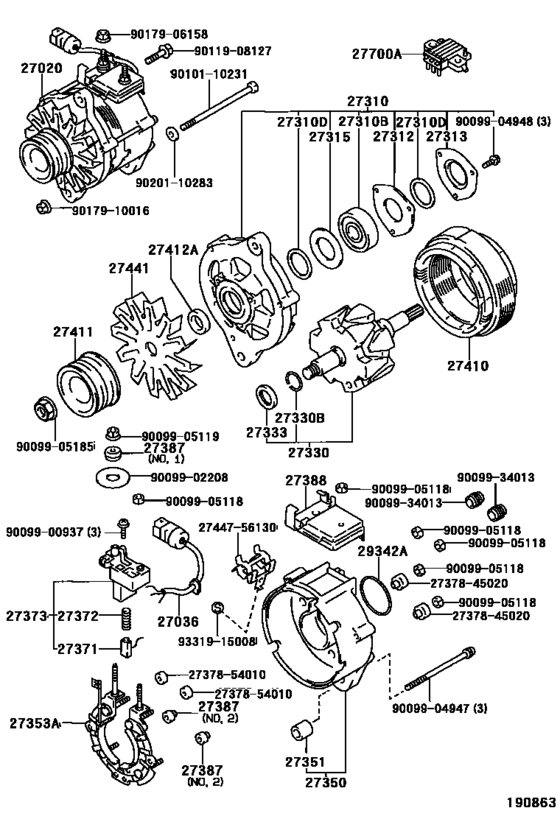

Alternator ([08.1988 - 03.1989] 12V 60A (8808-8903)2L..JPP..LHD) 66
#OEMPart name
27020 27020-54351 Alternator Assy
27020 27020-54352 Alternator Assy
27020 27020-54353 Alternator Assy
27020 27020-54700 Alternator Assy
27020 27020-54354 Alternator Assy
27020 27060-54100 Alternator Assy
27020 27060-54101 Alternator Assy
27036 27036-54250 Terminal Sub-Assy, Lead Wire, Alternator
27036 27036-54310 Terminal Sub-Assy, Lead Wire, Alternator
27310 27310-54130 Frame Assy, Drive End, Alternator
27310 27310-54131 Frame Assy, Drive End, Alternator
27310 90099-10137 Bearing(For Alternator Drive End Frame)
27310 90099-02209 Felt(For Alternator Drive End Frame)
27312 27312-57060 Plate, Bearing Retainer, Alternator
27313 27313-57060 Cover, Alternator Felt, Inner No.2
27315 27315-57060 Cover, Alternator Felt, Inner No.1
27330 27330-54270 Rotor Assy, Alternator
27330 27330-64010 Rotor Assy, Alternator
27330 27330-64011 Rotor Assy, Alternator
27330 27330-64012 Rotor Assy, Alternator
27330 27330-64170 Rotor Assy, Alternator
27330 90099-07103 Ring, Snap(For Alternator Rotor)
27333 27333-57060 Ring, Space(For Alternator Rotor)
27350 27350-54130 Frame Assy, Rectifier End
27351 27351-56013 Bush(For Alternator Rectifier End Frame)
27353 27353-64170 Holder, W/rectifier Positive, Alternator
27371 27371-54412 Brush, Alternator
27371 27371-56070 Brush, Alternator
27372 27372-56070 Spring, Alternator Brush
27373 27373-64170 Holder Assy, Alternator Brush
27387 27387-54010 Insulator, Terminal
27387 27387-54310 Insulator, Terminal
27387 27387-56070 Insulator, Terminal
27388 27388-54311 Cover, Alternator Brush
27388 27388-54320 Cover, Alternator Brush
27388 27388-54341 Cover, Alternator Brush
27388 27388-54342 Cover, Alternator Brush
27410 27410-43040 Stator Assy, Alternator
27411 27411-54350 Pulley, Alternator
27411 27411-54351 Pulley, Alternator
27412 27412-57060 Collar Or Nut(For Alternator Drive End Frame)
27441 27441-56090 Fan, Alternator
27441 27441-64030 Fan, Alternator
27700 27700-63010 Regulator Assy, Generator
27700 27700-64040 Regulator Assy, Generator
27700 27700-64110 Regulator Assy, Generator
27700 27700-72030 Regulator Assy, Generator
29342 90099-14055 Packing, Vacuum Pump
2737845020 27378-45020 Insulator, Alternator, No.1
2737854010 27378-54010 Insulator, Alternator, No.2
2744756130 27447-56130 Clip, Alternator Cord
9009900937 90099-00937 New Genuine Part
9009902208 90099-02208 New Genuine Part
9009904947 90099-04947 New Genuine Part
9009904948 90099-04948 New Genuine Part
9009905118 90099-05118 New Genuine Part
9009905119 90099-05119 New Genuine Part
9009905185 90099-05185 NUT
9009934013 90099-34013 Cap, Alternator Terminal
9010110231 90101-10231 Bolt(For Alternator)
9011908127 90119-08127 BOLT
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9020110283 90201-10283 Washer, Plate(For Steering Tilt Lever)
9331915008 93319-15008 SCREW
