Search › Model › LN109

LN109

Toyota HILUX-4RUNNER-TRUCK · 1994 · 4,292 parts · 205 categories

4,292 items

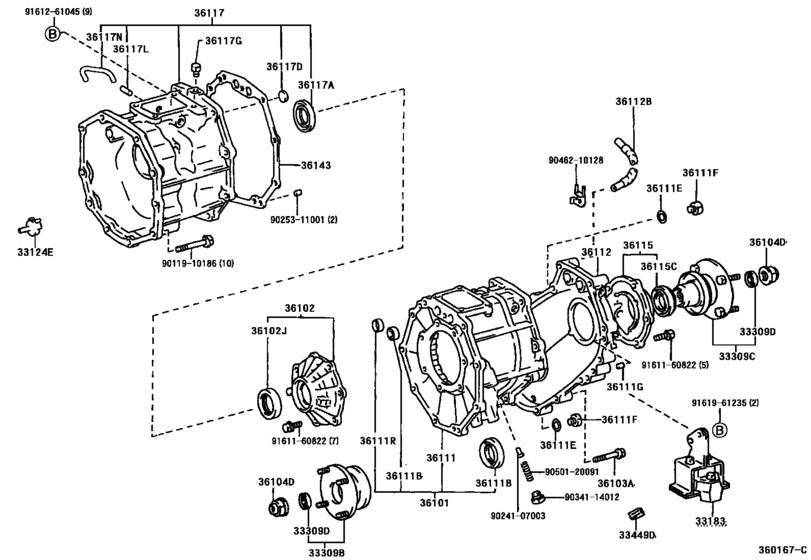

Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX) 53

#	OEM	Part name
33124	33124-35070	Pipe, Oil Receiver(For Transfer)
33124	33124-36010	Pipe, Oil Receiver(Mtm)
33183	33183-35020	Damper, Transfer Dynamic
33309	33309-35061	Flange Sub-Assy, Output Shaft Companion
33309	33309-35063	Flange Sub-assy, Transfer Output Shaft Companion
33309	90311-41013	Seal, Oil (For Transfer Case)
33309	90311-41017	Seal, Oil (For Transfer Case)
33309	33309-35080	Flange Sub-Assy, Output Shaft Companion
33309	33309-35100	Flange Sub-Assy, Output Shaft Companion
33309	90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)
33449	33449-32020	Magnet, Transmission
36101	36101-35070	Case Sub-Assy, Transfer
36101	36101-35130	Case Sub-Assy, Transfer
36101	36101-35131	Case Sub-assy, Transfer
36102	36102-35011	Cover Sub-Assy, Transfer Case
36102	36102-35012	Cover Sub-Assy, Transfer Case
36102	36102-35050	Cover Sub-Assy, Transfer Case
36102	36102-35051	Cover Sub-Assy, Transfer Case
36102	90311-40007	Seal, Oil(For Transfer Case Adapter Rear)
36102	90311-40021	Seal, Type T Oil (For Transfer Cover)
36103	90119-08A28	Bolt (For Transfer Case)
36104	90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)
36111	36111-35080	Case, Transfer
36111	90311-15008	Seal, Oil (For Transfer Case)
36111	90311-41008	Seal, Oil (For Transfer Case)
36111	90311-41012	Seal, Oil (For Transfer Case)
36111	90311-41011	Seal, Oil (For Transfer Case)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90341-18006	Plug (No magnet)
36111	90341-18057	Drain Plug (with Magnet)
36111	90250-10214	Pin, Straight(For End Plate)
36111	90331-25005	Plug, Tight (For Transfer Case)
36112	36112-35030	Case, Transfer, Rear
36112	36112-35080	Case, Transfer, Rear
36112	90445-08268	Hose, No.1 (For Transfer Rear Case)
36115	36105-35020	Housing, Transfer Extension
36115	36105-35040	Housing Sub-Assy, Transfer Extension, Front
36115	90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115	90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)
36117	36107-35120	Adapter, Transfer
36117	90930-03085	Plug, Breather
36117	90341-20010	Plug (For Shift Detent Ball)
36117	90445-08265	Hose(For Transfer Adapter)
9011910186	90119-10186	BOLT
9024107003	90241-07003	Pin, Slotted Spring (For Transfer Case)
9025311001	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
9034114012	90341-14012	Plug (For Transfer Case)
9046210128	90462-10128	New Genuine Part
9050120091	90501-20091	Spring, Compression (For Transfer Case)
9161160822	91611-60822	Bolt
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161961235	91619-61235	BOLT

OEM	Part name	Category
33124-35070	Pipe, Oil Receiver(For Transfer)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33124-36010	Pipe, Oil Receiver(Mtm)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33183-35020	Damper, Transfer Dynamic	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33309-35061	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33309-35063	Flange Sub-assy, Transfer Output Shaft Companion	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33309-35080	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33309-35100	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
33449-32020	Magnet, Transmission	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36101-35070	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36101-35130	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36101-35131	Case Sub-assy, Transfer	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36102-35011	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36102-35012	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36102-35050	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36102-35051	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36105-35020	Housing, Transfer Extension	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36105-35040	Housing Sub-Assy, Transfer Extension, Front	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36107-35120	Adapter, Transfer	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36111-35080	Case, Transfer	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36112-35030	Case, Transfer, Rear	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
36112-35080	Case, Transfer, Rear	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90119-08A28	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90119-10186	BOLT	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90241-07003	Pin, Slotted Spring (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-15008	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-40007	Seal, Oil(For Transfer Case Adapter Rear)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-40021	Seal, Type T Oil (For Transfer Cover)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41008	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41011	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41012	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41013	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41017	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90331-25005	Plug, Tight (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90341-14012	Plug (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90341-18057	Drain Plug (with Magnet)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90341-20010	Plug (For Shift Detent Ball)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90430-18008	Gasket	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90445-08265	Hose(For Transfer Adapter)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90445-08268	Hose, No.1 (For Transfer Rear Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90462-10128	New Genuine Part	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90501-20091	Spring, Compression (For Transfer Case)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
90930-03085	Plug, Breather	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
91611-60822	Bolt	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
91619-61235	BOLT	Transfer Case & Extension Housing ([01.1996 - ] (9601- )SSR,SSRX)
