Search › Model › LJ81P
LJ81P

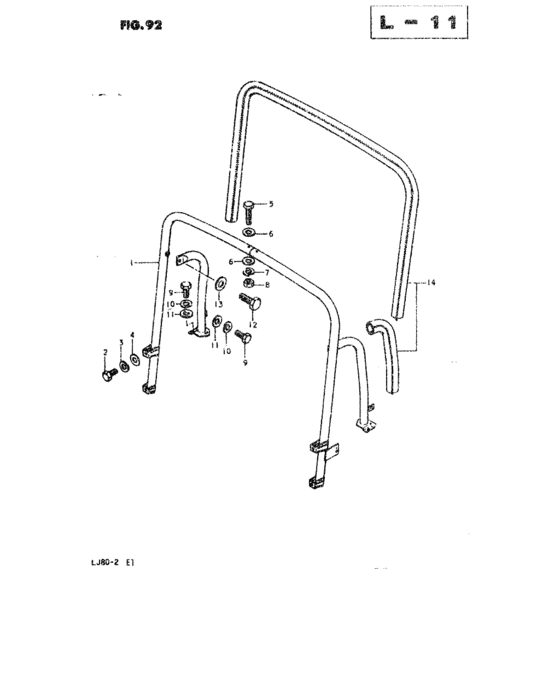

Roll bar (ROLL BAR) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 93600-73810-126 | Roll bar set |
| 2 | 01107-08168-000 | Bolt |
| 2 | 01500-0816B-000 | Bolt |
| 3 | 08321-21088-000 | Lock washer |
| 3 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 4 | 08322-11088-000 | Washer |
| 4 | 08322-01087-000 | WASHER - Lock washer |
| 5 | 01107-08558-000 | Bolt |
| 5 | 01500-08557-000 | Bolt |
| 8 | 08310-12088-000 | Nut |
| 8 | 08310-00087-000 | NUT |
| 12 | 09100-12015-000 | Bolt - 12x22 |
| 12 | 09103-12040-000 | BOLT(12X22) |
| 13 | 08322-11128-000 | Washer |
| 13 | 08322-01127-000 | WASHER - Washer, neutral sw |
| 14 | 93700-73810-000 | Pad set, roll bar |
| 14 | 99980-73820-000 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 01107-08168-000 | Bolt | Roll bar (ROLL BAR) |
| 01107-08558-000 | Bolt | Roll bar (ROLL BAR) |
| 01500-0816B-000 | Bolt | Roll bar (ROLL BAR) |
| 01500-08557-000 | Bolt | Roll bar (ROLL BAR) |
| 08310-00087-000 | NUT | Roll bar (ROLL BAR) |
| 08310-12088-000 | Nut | Roll bar (ROLL BAR) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Roll bar (ROLL BAR) |
| 08321-21088-000 | Lock washer | Roll bar (ROLL BAR) |
| 08322-01087-000 | WASHER - Lock washer | Roll bar (ROLL BAR) |
| 08322-01127-000 | WASHER - Washer, neutral sw | Roll bar (ROLL BAR) |
| 08322-11088-000 | Washer | Roll bar (ROLL BAR) |
| 08322-11128-000 | Washer | Roll bar (ROLL BAR) |
| 09100-12015-000 | Bolt - 12x22 | Roll bar (ROLL BAR) |
| 09103-12040-000 | BOLT(12X22) | Roll bar (ROLL BAR) |
| 93600-73810-126 | Roll bar set | Roll bar (ROLL BAR) |
| 93700-73810-000 | Pad set, roll bar | Roll bar (ROLL BAR) |
| 99980-73820-000 | New Genuine Part | Roll bar (ROLL BAR) |
