LJ81P

Suzuki LJ80 · 2,617 parts · 91 categories

2,617 items

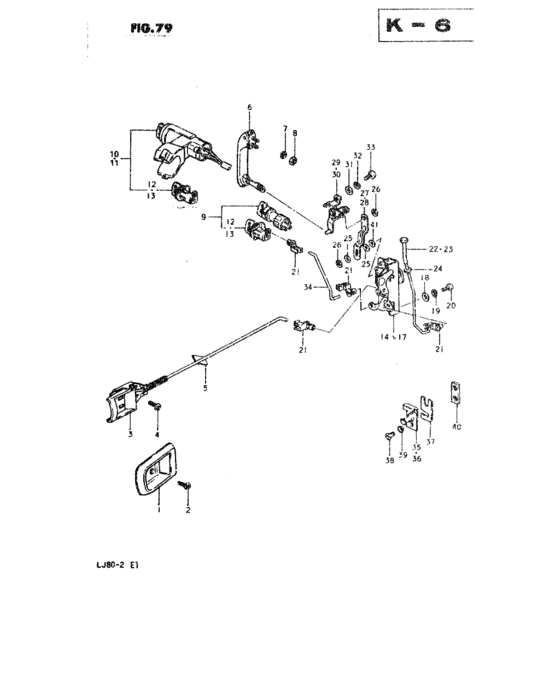

Front door lock (FRONT DOOR LOCK) 55

#	OEM	Part name
1	78261-70001-000	Case, inside handle
2	02142-05085-000	Screw
2	02142-0508A-000	SCREW - Screw, cap
3	77510-63121-000	Remote dontrol assy
4	02142-06108-000	6 x 10 screw
4	02142-06107-000	SCREW
5	77591-75000-000	PAD
6	78110-67060-000	Handle, outside
7	08321-21068-000	Lock washer
7	08321-01067-000	WASHER,LOCK
8	08310-11068-000	Nut
8	08310-00067-000	NUT
9	77401-63830-000	Key cylinder set
9	77401-63840-000	Key cylinder set
9	77400-63871-000	Key cylinder set
9	77400-73831-000	Key cylinder set
10	77400-73880-000	Key cylinder set
10	77400-73870-000	Key cylinder set
10	77400-73850-000	Key cylinder set
10	77400-73841-000	Key cylinder set
11	77400-73861-000	Key cylinder set
12	77400-70810-000	Key cylinder, door rh
12	77400-70812-000	CYLINDER,FR DR LATCH LOCK,R
13	77400-70830-000	Key cylinder, door lh
13	77400-70832-000	CYLINDER,FR DR LATCH LOCK,L
14	77101-70020-000	Lock assy, door rh
15	77201-70020-000	Lock assy, door rh
16	77202-70020-000	Lock assy, door lh
17	77102-70020-000	Lock assy, door lh
18	08322-21068-000	Washer
18	08322-01067-000	WASHER
20	02112-06108-000	Screw
20	02112-06107-000	SCREW
21	09209-05016-000	PIN
22	77381-63100-000	Rod, safety lock rh
23	77382-63100-000	Rod, safety lock lh
24	09308-05013-000	Grommet, rod
25	09161-06008-000	WASHER(6.5X13X1)
26	08332-11058-000	E ring
26	08332-1105A-000	E RING
27	78311-63100-000	Plate, link push rh
28	78316-63100-000	Plate, link push lh
29	78180-63121-000	Link, handle rh
30	78190-63121-000	Link, handle lh
34	77491-63100-000	Rod, key cylinder rh
34	77492-63100-000	Rod, key cylinder lh
35	77810-70020-000	Striker,door lock rh
36	77820-70020-000	Striker, door lock lh
37	77883-60000-000	Spacer, striker
38	02122-08188-000	Screw
38	09126-08004-XC0	SCREW(8X18)
39	08323-31088-000	Washer,lock
39	09163-08002-000	WASHER,LOCK - Rondelle
40	78191-63100-000	Retainer, striker
41	09161-04008-000	WASHER(4X12X2)

OEM	Part name	Category
02112-06107-000	SCREW	Front door lock (FRONT DOOR LOCK)
02112-06108-000	Screw	Front door lock (FRONT DOOR LOCK)
02122-08188-000	Screw	Front door lock (FRONT DOOR LOCK)
02142-05085-000	Screw	Front door lock (FRONT DOOR LOCK)
02142-0508A-000	SCREW - Screw, cap	Front door lock (FRONT DOOR LOCK)
02142-06107-000	SCREW	Front door lock (FRONT DOOR LOCK)
02142-06108-000	6 x 10 screw	Front door lock (FRONT DOOR LOCK)
08310-00067-000	NUT	Front door lock (FRONT DOOR LOCK)
08310-11068-000	Nut	Front door lock (FRONT DOOR LOCK)
08321-01067-000	WASHER,LOCK	Front door lock (FRONT DOOR LOCK)
08321-21068-000	Lock washer	Front door lock (FRONT DOOR LOCK)
08322-01067-000	WASHER	Front door lock (FRONT DOOR LOCK)
08322-21068-000	Washer	Front door lock (FRONT DOOR LOCK)
08323-31088-000	Washer,lock	Front door lock (FRONT DOOR LOCK)
08332-11058-000	E ring	Front door lock (FRONT DOOR LOCK)
08332-1105A-000	E RING	Front door lock (FRONT DOOR LOCK)
09126-08004-XC0	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09161-04008-000	WASHER(4X12X2)	Front door lock (FRONT DOOR LOCK)
09161-06008-000	WASHER(6.5X13X1)	Front door lock (FRONT DOOR LOCK)
09163-08002-000	WASHER,LOCK - Rondelle	Front door lock (FRONT DOOR LOCK)
09209-05016-000	PIN	Front door lock (FRONT DOOR LOCK)
09308-05013-000	Grommet, rod	Front door lock (FRONT DOOR LOCK)
77101-70020-000	Lock assy, door rh	Front door lock (FRONT DOOR LOCK)
77102-70020-000	Lock assy, door lh	Front door lock (FRONT DOOR LOCK)
77201-70020-000	Lock assy, door rh	Front door lock (FRONT DOOR LOCK)
77202-70020-000	Lock assy, door lh	Front door lock (FRONT DOOR LOCK)
77381-63100-000	Rod, safety lock rh	Front door lock (FRONT DOOR LOCK)
77382-63100-000	Rod, safety lock lh	Front door lock (FRONT DOOR LOCK)
77400-63871-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-70810-000	Key cylinder, door rh	Front door lock (FRONT DOOR LOCK)
77400-70812-000	CYLINDER,FR DR LATCH LOCK,R	Front door lock (FRONT DOOR LOCK)
77400-70830-000	Key cylinder, door lh	Front door lock (FRONT DOOR LOCK)
77400-70832-000	CYLINDER,FR DR LATCH LOCK,L	Front door lock (FRONT DOOR LOCK)
77400-73831-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-73841-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-73850-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-73861-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-73870-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77400-73880-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77401-63830-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77401-63840-000	Key cylinder set	Front door lock (FRONT DOOR LOCK)
77491-63100-000	Rod, key cylinder rh	Front door lock (FRONT DOOR LOCK)
77492-63100-000	Rod, key cylinder lh	Front door lock (FRONT DOOR LOCK)
77510-63121-000	Remote dontrol assy	Front door lock (FRONT DOOR LOCK)
77591-75000-000	PAD	Front door lock (FRONT DOOR LOCK)
77810-70020-000	Striker,door lock rh	Front door lock (FRONT DOOR LOCK)
77820-70020-000	Striker, door lock lh	Front door lock (FRONT DOOR LOCK)
77883-60000-000	Spacer, striker	Front door lock (FRONT DOOR LOCK)
78110-67060-000	Handle, outside	Front door lock (FRONT DOOR LOCK)
78180-63121-000	Link, handle rh	Front door lock (FRONT DOOR LOCK)
78190-63121-000	Link, handle lh	Front door lock (FRONT DOOR LOCK)
78191-63100-000	Retainer, striker	Front door lock (FRONT DOOR LOCK)
78261-70001-000	Case, inside handle	Front door lock (FRONT DOOR LOCK)
78311-63100-000	Plate, link push rh	Front door lock (FRONT DOOR LOCK)
78316-63100-000	Plate, link push lh	Front door lock (FRONT DOOR LOCK)
