Search › Model › LJ81K
LJ81K

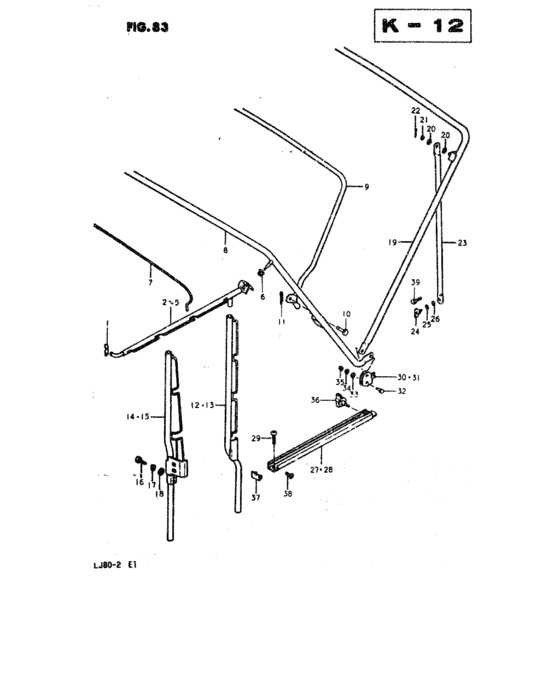

Top bow (LOW TYPE) 50
| # | OEM | Part name |
|---|---|---|
| 1 | 71751-63001-000 | SPRING,FRONT RAIL |
| 2 | 71680-73021-000 | Rail, roof side rh |
| 2 | 71680-73011-000 | Rail, roof side rh |
| 3 | 71690-73021-000 | Rail, roof side lh |
| 3 | 71690-73011-000 | Rail, roof side lh |
| 4 | 71680-73040-000 | Rail, roof side rh |
| 5 | 71690-73040-000 | Rail, roof side lh |
| 6 | 71758-73000-000 | BUSH,ROOF SIDE FR RAIL |
| 7 | 71611-73000-000 | Top bow, front |
| 8 | 71620-63002-000 | Top bow, front cross |
| 8 | 71620-73000-000 | Top bow, front cross |
| 9 | 71631-63001-000 | Top bow, middle cross |
| 9 | 71631-73000-000 | Top bow, middle cross |
| 10 | 09200-06016-000 | PIN |
| 11 | 04111-16158-000 | Cotter pin |
| 11 | 04111-1620A-000 | PIN |
| 12 | 71660-73010-000 | Pipe, center rh |
| 13 | 71670-73010-000 | Pipe, center lh |
| 14 | 71660-73031-000 | Pipe, center rh |
| 15 | 71670-73031-000 | Pipe, center lh |
| 16 | 01107-06168-000 | Bolt |
| 16 | 01500-06167-000 | Bolt - Bolt, fuel cooler |
| 17 | 08321-21068-000 | Lock washer |
| 17 | 08321-01067-000 | WASHER,LOCK |
| 18 | 08322-21068-000 | Washer |
| 18 | 08322-01067-000 | WASHER |
| 19 | 71650-63001-000 | Top bow, rear cross |
| 19 | 71651-73000-000 | Top bow, rear cross |
| 20 | 09164-08002-000 | WASHER |
| 21 | 08322-11088-000 | Washer |
| 21 | 08322-01087-000 | WASHER - Lock washer |
| 22 | 04111-25208-000 | 25 x 20 cotter - Cotter pin |
| 22 | 04111-2520A-000 | PIN |
| 23 | 71641-63001-000 | Holder, top bow cross |
| 24 | 09119-06007-000 | Bolt, rear |
| 24 | 09119-06017-XC0 | Bolt |
| 27 | 71710-63000-000 | Rail, top bow rh |
| 28 | 71720-63000-000 | Rail, top bow lh |
| 29 | 02142-06207-000 | SCREW |
| 30 | 71730-63001-000 | Slider, top bow rh |
| 31 | 71740-63001-000 | Slider, top bow lh |
| 32 | 71754-63000-000 | Bolt, top bow slider |
| 35 | 08310-11068-000 | Nut |
| 35 | 08310-00067-000 | NUT |
| 36 | 71753-63001-000 | Bolt, top bow rail |
| 37 | 71755-63000-000 | Lid, top bow rail |
| 38 | 03141-05128-000 | SCREW |
| 38 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 39 | 01517-06168-000 | Bolt |
| 39 | 01550-06167-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01107-06168-000 | Bolt | Top bow (LOW TYPE) |
| 01500-06167-000 | Bolt - Bolt, fuel cooler | Top bow (LOW TYPE) |
| 01517-06168-000 | Bolt | Top bow (LOW TYPE) |
| 01550-06167-000 | Bolt | Top bow (LOW TYPE) |
| 02142-06207-000 | SCREW | Top bow (LOW TYPE) |
| 03141-05128-000 | SCREW | Top bow (LOW TYPE) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Top bow (LOW TYPE) |
| 04111-16158-000 | Cotter pin | Top bow (LOW TYPE) |
| 04111-1620A-000 | PIN | Top bow (LOW TYPE) |
| 04111-25208-000 | 25 x 20 cotter - Cotter pin | Top bow (LOW TYPE) |
| 04111-2520A-000 | PIN | Top bow (LOW TYPE) |
| 08310-00067-000 | NUT | Top bow (LOW TYPE) |
| 08310-11068-000 | Nut | Top bow (LOW TYPE) |
| 08321-01067-000 | WASHER,LOCK | Top bow (LOW TYPE) |
| 08321-21068-000 | Lock washer | Top bow (LOW TYPE) |
| 08322-01067-000 | WASHER | Top bow (LOW TYPE) |
| 08322-01087-000 | WASHER - Lock washer | Top bow (LOW TYPE) |
| 08322-11088-000 | Washer | Top bow (LOW TYPE) |
| 08322-21068-000 | Washer | Top bow (LOW TYPE) |
| 09119-06007-000 | Bolt, rear | Top bow (LOW TYPE) |
| 09119-06017-XC0 | Bolt | Top bow (LOW TYPE) |
| 09164-08002-000 | WASHER | Top bow (LOW TYPE) |
| 09200-06016-000 | PIN | Top bow (LOW TYPE) |
| 71611-73000-000 | Top bow, front | Top bow (LOW TYPE) |
| 71620-63002-000 | Top bow, front cross | Top bow (LOW TYPE) |
| 71620-73000-000 | Top bow, front cross | Top bow (LOW TYPE) |
| 71631-63001-000 | Top bow, middle cross | Top bow (LOW TYPE) |
| 71631-73000-000 | Top bow, middle cross | Top bow (LOW TYPE) |
| 71641-63001-000 | Holder, top bow cross | Top bow (LOW TYPE) |
| 71650-63001-000 | Top bow, rear cross | Top bow (LOW TYPE) |
| 71651-73000-000 | Top bow, rear cross | Top bow (LOW TYPE) |
| 71660-73010-000 | Pipe, center rh | Top bow (LOW TYPE) |
| 71660-73031-000 | Pipe, center rh | Top bow (LOW TYPE) |
| 71670-73010-000 | Pipe, center lh | Top bow (LOW TYPE) |
| 71670-73031-000 | Pipe, center lh | Top bow (LOW TYPE) |
| 71680-73011-000 | Rail, roof side rh | Top bow (LOW TYPE) |
| 71680-73021-000 | Rail, roof side rh | Top bow (LOW TYPE) |
| 71680-73040-000 | Rail, roof side rh | Top bow (LOW TYPE) |
| 71690-73011-000 | Rail, roof side lh | Top bow (LOW TYPE) |
| 71690-73021-000 | Rail, roof side lh | Top bow (LOW TYPE) |
| 71690-73040-000 | Rail, roof side lh | Top bow (LOW TYPE) |
| 71710-63000-000 | Rail, top bow rh | Top bow (LOW TYPE) |
| 71720-63000-000 | Rail, top bow lh | Top bow (LOW TYPE) |
| 71730-63001-000 | Slider, top bow rh | Top bow (LOW TYPE) |
| 71740-63001-000 | Slider, top bow lh | Top bow (LOW TYPE) |
| 71751-63001-000 | SPRING,FRONT RAIL | Top bow (LOW TYPE) |
| 71753-63001-000 | Bolt, top bow rail | Top bow (LOW TYPE) |
| 71754-63000-000 | Bolt, top bow slider | Top bow (LOW TYPE) |
| 71755-63000-000 | Lid, top bow rail | Top bow (LOW TYPE) |
| 71758-73000-000 | BUSH,ROOF SIDE FR RAIL | Top bow (LOW TYPE) |
