LJ81K

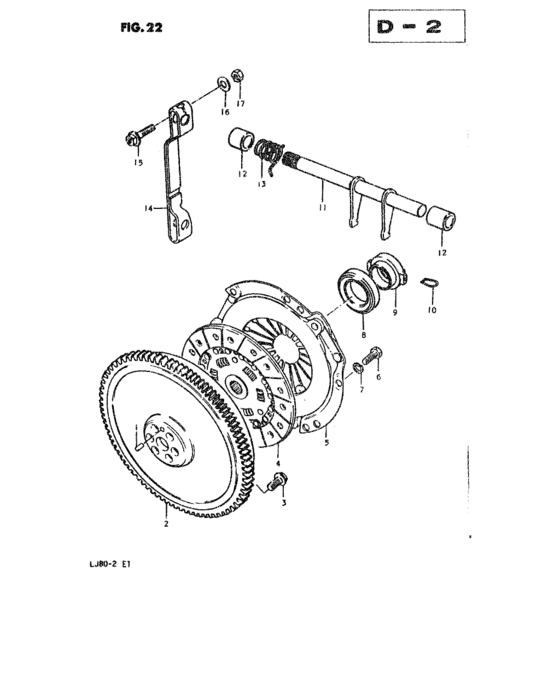

Clutch (CLUTCH) 31
| # | OEM | Part name |
|---|---|---|
| 1 | 04221-06129-000 | PIN |
| 2 | 12620-73000-000 | Flywheel |
| 2 | 12620-73003-000 | FLYWHEEL |
| 3 | 09103-10011-000 | Bolt, flywheel |
| 3 | 09103-10097-000 | BOLT(10X17) |
| 4 | 22400-72022-000 | Disk, clutch |
| 4 | 22400-85141-000 | DISC,CLUTCH |
| 5 | 22100-72022-000 | Cover assy, clutch |
| 5 | 22100-80021-000 | COVER ASSY,CLUTCH |
| 6 | 01107-08168-000 | Bolt |
| 6 | 01500-0816B-000 | Bolt |
| 7 | 08321-21088-000 | Lock washer |
| 7 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 8 | 09269-38001-000 | BEARING(38.1X67X16.5) |
| 9 | 23161-65002-000 | RETAINER,BEARING |
| 10 | 09448-12005-000 | SPRING |
| 11 | 23260-72003-000 | SHAFT,CLUTCH RELEASE |
| 11 | 23260-72002-000 | Shaft, clutch release |
| 12 | 09300-14009-000 | BUSH(14X24X15) |
| 12 | 09300-14010-000 | Bush, shaft - Od:22 |
| 12 | 09300-14017-000 | BUSH(14X22X15) |
| 13 | 09448-20003-000 | Spring |
| 13 | 09448-20008-XC0 | SPRING |
| 14 | 23266-72001-000 | Arm, clutch release |
| 14 | 23266-77302-000 | ARM,CLUTCH RELEASE |
| 15 | 01517-08358-000 | Bolt |
| 15 | 01550-08357-000 | Bolt |
| 16 | 08322-11088-000 | Washer |
| 16 | 08322-01087-000 | WASHER - Lock washer |
| 17 | 08310-12088-000 | Nut |
| 17 | 08310-00087-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01107-08168-000 | Bolt | Clutch (CLUTCH) |
| 01500-0816B-000 | Bolt | Clutch (CLUTCH) |
| 01517-08358-000 | Bolt | Clutch (CLUTCH) |
| 01550-08357-000 | Bolt | Clutch (CLUTCH) |
| 04221-06129-000 | PIN | Clutch (CLUTCH) |
| 08310-00087-000 | NUT | Clutch (CLUTCH) |
| 08310-12088-000 | Nut | Clutch (CLUTCH) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Clutch (CLUTCH) |
| 08321-21088-000 | Lock washer | Clutch (CLUTCH) |
| 08322-01087-000 | WASHER - Lock washer | Clutch (CLUTCH) |
| 08322-11088-000 | Washer | Clutch (CLUTCH) |
| 09103-10011-000 | Bolt, flywheel | Clutch (CLUTCH) |
| 09103-10097-000 | BOLT(10X17) | Clutch (CLUTCH) |
| 09269-38001-000 | BEARING(38.1X67X16.5) | Clutch (CLUTCH) |
| 09300-14009-000 | BUSH(14X24X15) | Clutch (CLUTCH) |
| 09300-14010-000 | Bush, shaft - Od:22 | Clutch (CLUTCH) |
| 09300-14017-000 | BUSH(14X22X15) | Clutch (CLUTCH) |
| 09448-12005-000 | SPRING | Clutch (CLUTCH) |
| 09448-20003-000 | Spring | Clutch (CLUTCH) |
| 09448-20008-XC0 | SPRING | Clutch (CLUTCH) |
| 12620-73000-000 | Flywheel | Clutch (CLUTCH) |
| 12620-73003-000 | FLYWHEEL | Clutch (CLUTCH) |
| 22100-72022-000 | Cover assy, clutch | Clutch (CLUTCH) |
| 22100-80021-000 | COVER ASSY,CLUTCH | Clutch (CLUTCH) |
| 22400-72022-000 | Disk, clutch | Clutch (CLUTCH) |
| 22400-85141-000 | DISC,CLUTCH | Clutch (CLUTCH) |
| 23161-65002-000 | RETAINER,BEARING | Clutch (CLUTCH) |
| 23260-72002-000 | Shaft, clutch release | Clutch (CLUTCH) |
| 23260-72003-000 | SHAFT,CLUTCH RELEASE | Clutch (CLUTCH) |
| 23266-72001-000 | Arm, clutch release | Clutch (CLUTCH) |
| 23266-77302-000 | ARM,CLUTCH RELEASE | Clutch (CLUTCH) |
