Search › Model › LJ80Q
LJ80Q

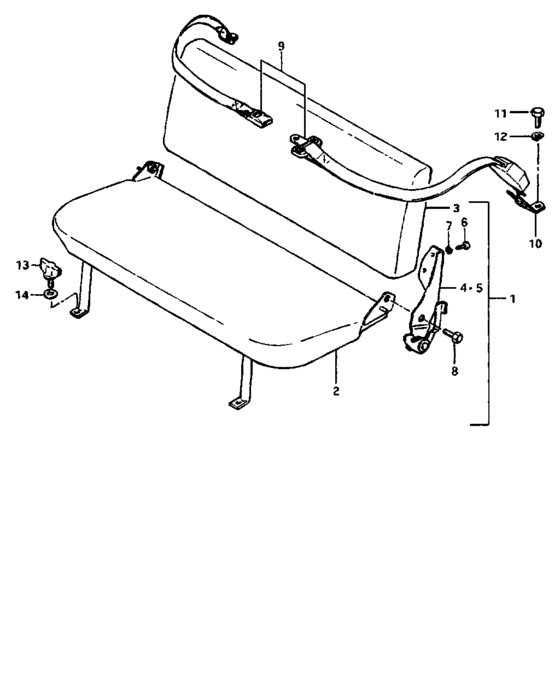

Rear seat (OPTIONAL) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 80004-73060-877 | Seat assy, rear |
| 1 | 80004-73061-877 | New Genuine Part |
| 2 | 83001-73060-877 | Cushion, rear seat |
| 3 | 83004-73060-877 | Back assy, rear seat |
| 3 | 83004-73061-877 | New Genuine Part |
| 4 | 83910-73040-000 | Lock, rear seat rh |
| 4 | 83910-73042-000 | New Genuine Part |
| 4 | 09111-08044-000 | BOLT(8X16) |
| 5 | 83940-73040-000 | Lock, rear seat lh |
| 5 | 83940-73041-000 | New Genuine Part |
| 6 | 02142-06128-000 | Bolt |
| 6 | 02142-06127-000 | SCREW |
| 7 | 08321-21068-000 | Lock washer |
| 7 | 08321-01067-000 | WASHER,LOCK |
| 8 | 09111-08045-000 | BOLT(8X15) |
| 9 | 87304-73010-382 | Belt assy, rear seat |
| 9 | 84904-80200-382 | New Genuine Part |
| 10 | 87334-73061-000 | Bracket, rear seat belt |
| 11 | 09100-12015-000 | Bolt - 12x22 |
| 11 | 09103-12040-000 | BOLT(12X22) |
| 12 | 08321-21128-000 | 12mm lock washe - Lock washer |
| 12 | 08321-01127-000 | WASHER,LOCK |
| 13 | 09119-06007-000 | Bolt, rear |
| 13 | 09119-06017-XC0 | Bolt |
| 14 | 09160-06020-000 | Washer |
| 14 | 09160-06066-000 | WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6) |
| OEM | Part name | Category |
|---|---|---|
| 02142-06127-000 | SCREW | Rear seat (OPTIONAL) |
| 02142-06128-000 | Bolt | Rear seat (OPTIONAL) |
| 08321-01067-000 | WASHER,LOCK | Rear seat (OPTIONAL) |
| 08321-01127-000 | WASHER,LOCK | Rear seat (OPTIONAL) |
| 08321-21068-000 | Lock washer | Rear seat (OPTIONAL) |
| 08321-21128-000 | 12mm lock washe - Lock washer | Rear seat (OPTIONAL) |
| 09100-12015-000 | Bolt - 12x22 | Rear seat (OPTIONAL) |
| 09103-12040-000 | BOLT(12X22) | Rear seat (OPTIONAL) |
| 09111-08044-000 | BOLT(8X16) | Rear seat (OPTIONAL) |
| 09111-08045-000 | BOLT(8X15) | Rear seat (OPTIONAL) |
| 09119-06007-000 | Bolt, rear | Rear seat (OPTIONAL) |
| 09119-06017-XC0 | Bolt | Rear seat (OPTIONAL) |
| 09160-06020-000 | Washer | Rear seat (OPTIONAL) |
| 09160-06066-000 | WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6) | Rear seat (OPTIONAL) |
| 80004-73060-877 | Seat assy, rear | Rear seat (OPTIONAL) |
| 80004-73061-877 | New Genuine Part | Rear seat (OPTIONAL) |
| 83001-73060-877 | Cushion, rear seat | Rear seat (OPTIONAL) |
| 83004-73060-877 | Back assy, rear seat | Rear seat (OPTIONAL) |
| 83004-73061-877 | New Genuine Part | Rear seat (OPTIONAL) |
| 83910-73040-000 | Lock, rear seat rh | Rear seat (OPTIONAL) |
| 83910-73042-000 | New Genuine Part | Rear seat (OPTIONAL) |
| 83940-73040-000 | Lock, rear seat lh | Rear seat (OPTIONAL) |
| 83940-73041-000 | New Genuine Part | Rear seat (OPTIONAL) |
| 84904-80200-382 | New Genuine Part | Rear seat (OPTIONAL) |
| 87304-73010-382 | Belt assy, rear seat | Rear seat (OPTIONAL) |
| 87334-73061-000 | Bracket, rear seat belt | Rear seat (OPTIONAL) |
