Search › Model › LJ80Q
LJ80Q

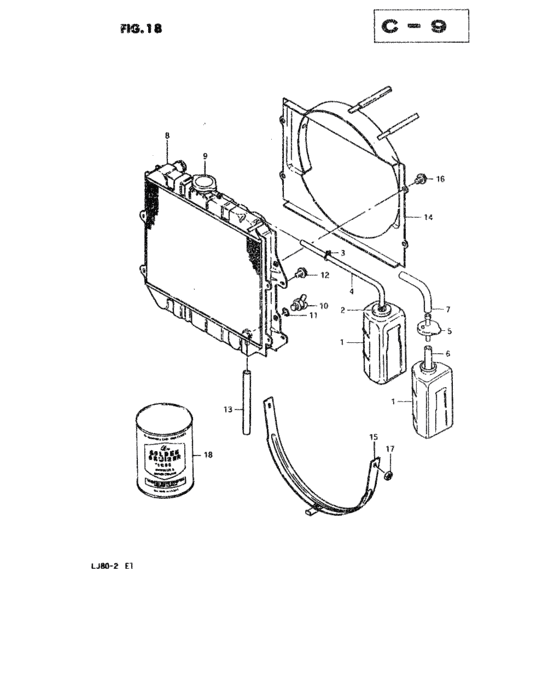

Radiator (RADIATOR) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 17931-72000-000 | WATER RESERVE TANK |
| 1 | 17931-80001-000 | TANK,WATER RESERVE |
| 2 | 17932-72000-000 | Cap,reserve tank |
| 3 | 09401-11404-000 | クリップ |
| 3 | 09401-11415-000 | CLIP |
| 3 | 09401-11407-000 | CLIP |
| 4 | 09343-07011-000 | Hose |
| 4 | 09352-70121-00B | HOSE(7X12.1X2000) - Hose, silencer |
| 5 | 17932-79000-000 | Cap,reserve tank |
| 8 | 17700-73000-000 | Radiator assy |
| 9 | 17920-63210-000 | Cap |
| 9 | 17920-78000-000 | CAP,RADIATOR 0.9 |
| 10 | 17751-72010-000 | PLUG,DRAIN |
| 11 | 17759-72010-000 | O-RING |
| 12 | 01517-06108-000 | Bolt 6x10 hexagon |
| 12 | 01550-06107-000 | Bolt |
| 13 | 09344-07012-000 | Tuyau |
| 13 | 09351-75111-600 | HOSE(7.5X11.5X600) |
| 14 | 17760-73001-000 | Shroud, fan upper |
| 15 | 17770-73002-000 | Shroud, fan lower |
| 17 | 08310-11068-000 | Nut |
| 17 | 08310-00067-000 | NUT |
| 18 | 99000-24120-000 | Golden crisher 1200 |
| 18 | 99000-99032-31X | LONG LIFE COOLANT |
| OEM | Part name | Category |
|---|---|---|
| 01517-06108-000 | Bolt 6x10 hexagon | Radiator (RADIATOR) |
| 01550-06107-000 | Bolt | Radiator (RADIATOR) |
| 08310-00067-000 | NUT | Radiator (RADIATOR) |
| 08310-11068-000 | Nut | Radiator (RADIATOR) |
| 09343-07011-000 | Hose | Radiator (RADIATOR) |
| 09344-07012-000 | Tuyau | Radiator (RADIATOR) |
| 09351-75111-600 | HOSE(7.5X11.5X600) | Radiator (RADIATOR) |
| 09352-70121-00B | HOSE(7X12.1X2000) - Hose, silencer | Radiator (RADIATOR) |
| 09401-11404-000 | クリップ | Radiator (RADIATOR) |
| 09401-11407-000 | CLIP | Radiator (RADIATOR) |
| 09401-11415-000 | CLIP | Radiator (RADIATOR) |
| 17700-73000-000 | Radiator assy | Radiator (RADIATOR) |
| 17751-72010-000 | PLUG,DRAIN | Radiator (RADIATOR) |
| 17759-72010-000 | O-RING | Radiator (RADIATOR) |
| 17760-73001-000 | Shroud, fan upper | Radiator (RADIATOR) |
| 17770-73002-000 | Shroud, fan lower | Radiator (RADIATOR) |
| 17920-63210-000 | Cap | Radiator (RADIATOR) |
| 17920-78000-000 | CAP,RADIATOR 0.9 | Radiator (RADIATOR) |
| 17931-72000-000 | WATER RESERVE TANK | Radiator (RADIATOR) |
| 17931-80001-000 | TANK,WATER RESERVE | Radiator (RADIATOR) |
| 17932-72000-000 | Cap,reserve tank | Radiator (RADIATOR) |
| 17932-79000-000 | Cap,reserve tank | Radiator (RADIATOR) |
| 99000-24120-000 | Golden crisher 1200 | Radiator (RADIATOR) |
| 99000-99032-31X | LONG LIFE COOLANT | Radiator (RADIATOR) |
