Search › Model › LJ80Q
LJ80Q

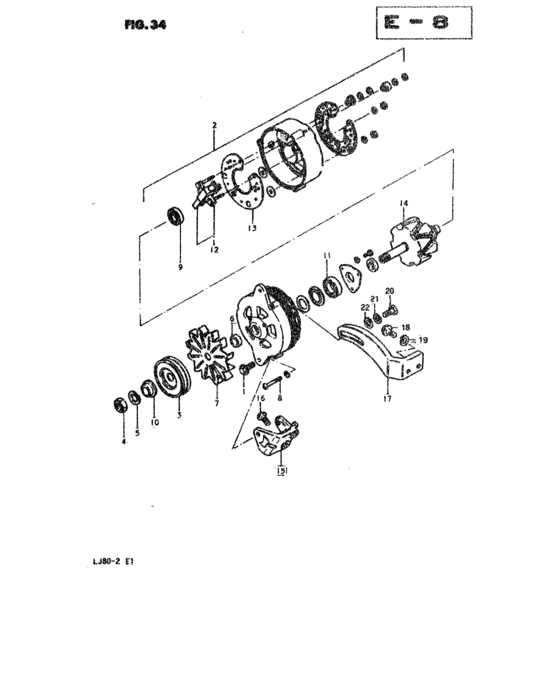

Generator (GENERATOR) 34
| # | OEM | Part name |
|---|---|---|
| 1 | 01517-08308-000 | Bolt |
| 1 | 01550-08307-000 | Bolt |
| 2 | 31400-72010-000 | Generator assy |
| 2 | 31400-72012-REM | New Genuine Part |
| 2 | 31400-72011-000 | Generator assy |
| 2 | 31400-72012-000 | GENERATOR ASSY |
| 3 | 31171-70010-000 | Pulley - Od:74 |
| 3 | 31171-71310-000 | PULLEY |
| 4 | 31775-55011-000 | Nut |
| 5 | 08321-21148-000 | Lock washer |
| 5 | 08321-0114A-000 | WASHER,LOCK |
| 6 | 31791-70010-000 | Spacer, fan |
| 7 | 31761-70010-000 | Fan |
| 8 | 31651-55012-000 | Screw |
| 9 | 08140-62010-000 | New Genuine Part |
| 9 | 31612-75110-000 | BEARING |
| 10 | 31791-66010-000 | Spacer |
| 11 | 08140-62020-000 | B1 15x35x11 bea - Bearing |
| 11 | 31582-60F12-000 | BEARING |
| 11 | 31582-82610-000 | BEARING DRIVE END |
| 12 | 31600-65840-000 | HOLDER SET,BRUSH |
| 13 | 31621-65011-000 | Rectifier |
| 14 | 31710-70010-000 | Rotor |
| 14 | 31710-72012-000 | New Genuine Part |
| 15 | 17911-73000-000 | Bracket, generator |
| 17 | 17921-73001-000 | Arm,generator adjust |
| 18 | 01107-08208-000 | Bolt |
| 18 | 01500-08207-000 | Bolt |
| 19 | 08321-21088-000 | Lock washer |
| 19 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 20 | 01107-08258-000 | Bolt |
| 20 | 01500-08257-000 | Bolt |
| 22 | 09160-08030-000 | Washer |
| 22 | 09160-08128-000 | WASHER(8.5X22X3.2) |
| OEM | Part name | Category |
|---|---|---|
| 01107-08208-000 | Bolt | Generator (GENERATOR) |
| 01107-08258-000 | Bolt | Generator (GENERATOR) |
| 01500-08207-000 | Bolt | Generator (GENERATOR) |
| 01500-08257-000 | Bolt | Generator (GENERATOR) |
| 01517-08308-000 | Bolt | Generator (GENERATOR) |
| 01550-08307-000 | Bolt | Generator (GENERATOR) |
| 08140-62010-000 | New Genuine Part | Generator (GENERATOR) |
| 08140-62020-000 | B1 15x35x11 bea - Bearing | Generator (GENERATOR) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Generator (GENERATOR) |
| 08321-0114A-000 | WASHER,LOCK | Generator (GENERATOR) |
| 08321-21088-000 | Lock washer | Generator (GENERATOR) |
| 08321-21148-000 | Lock washer | Generator (GENERATOR) |
| 09160-08030-000 | Washer | Generator (GENERATOR) |
| 09160-08128-000 | WASHER(8.5X22X3.2) | Generator (GENERATOR) |
| 17911-73000-000 | Bracket, generator | Generator (GENERATOR) |
| 17921-73001-000 | Arm,generator adjust | Generator (GENERATOR) |
| 31171-70010-000 | Pulley - Od:74 | Generator (GENERATOR) |
| 31171-71310-000 | PULLEY | Generator (GENERATOR) |
| 31400-72010-000 | Generator assy | Generator (GENERATOR) |
| 31400-72011-000 | Generator assy | Generator (GENERATOR) |
| 31400-72012-000 | GENERATOR ASSY | Generator (GENERATOR) |
| 31400-72012-REM | New Genuine Part | Generator (GENERATOR) |
| 31582-60F12-000 | BEARING | Generator (GENERATOR) |
| 31582-82610-000 | BEARING DRIVE END | Generator (GENERATOR) |
| 31600-65840-000 | HOLDER SET,BRUSH | Generator (GENERATOR) |
| 31612-75110-000 | BEARING | Generator (GENERATOR) |
| 31621-65011-000 | Rectifier | Generator (GENERATOR) |
| 31651-55012-000 | Screw | Generator (GENERATOR) |
| 31710-70010-000 | Rotor | Generator (GENERATOR) |
| 31710-72012-000 | New Genuine Part | Generator (GENERATOR) |
| 31761-70010-000 | Fan | Generator (GENERATOR) |
| 31775-55011-000 | Nut | Generator (GENERATOR) |
| 31791-66010-000 | Spacer | Generator (GENERATOR) |
| 31791-70010-000 | Spacer, fan | Generator (GENERATOR) |
