LJ77

Toyota LAND-CRUISER · 1990 · 6,436 parts · 229 categories
LJ77 ×

← Back to categories

6,436 items

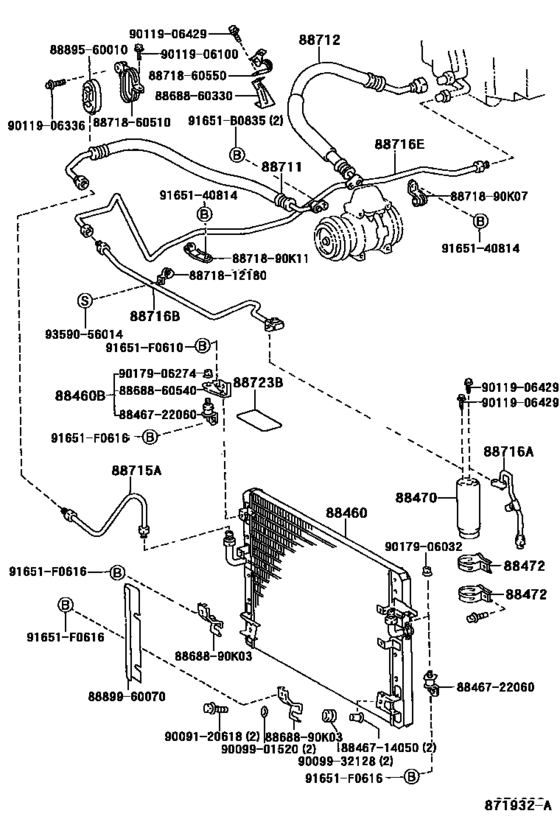

Heating & Air Conditioning - Cooler Piping ([01.1990 - 04.1996] MAKER OPTION (9001-9604)LJ7#,RJ7#..LHD) 39
#OEMPart name
88460 88460-60080 Condenser Assy, Cooler
88470 88471-12020 Receiver & Dryer Assy, Cooler
88470 88471-12060 Receiver & Dryer Assy, Cooler
88472 88472-60080 Bracket, Receiver Tank, No.1
88711 88711-60180 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-60240 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60030 Pipe, Cooler Refrigerant Discharge, A
88716 88716-60520 Pipe, Cooler Refrigerant Liquid, A
88716 88716-60490 Pipe, Cooler Refrigerant Liquid, B
88716 88716-60570 Pipe, Cooler Refrigerant Liquid, E
88723 88723-22050 Label, Cooler Service Caution
91651 91651-B0835 BOLT
91651 91651-F0610 New Genuine Part
91651 91651-F0616 BOLT
8868890 88688-90K03 Bracket, Cooler Condenser, No.2
8871890 88718-90K07 Pipe, Cooler Refrigerant Suction, No.2
8871890 88718-90K11 Pipe, Cooler Refrigerant Suction, No.2
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846722060 88467-22060 Cushion, Cooler Condenser, No.1
8868860330 88688-60330 Bracket, Cooler Diaphragm
8868860540 88688-60540 Bracket, Cooler Diaphragm
8871812180 88718-12180 Pipe, Cooler Refrigerant Suction, No.2
8871860510 88718-60510 Pipe, Cooler Refrigerant Suction, No.2
8871860550 88718-60550 Pipe, Cooler Refrigerant Suction, No.2
8889560010 88895-60010 Holder, Fuse
8889960070 88899-60070 Cover, Evaporator
9009120618 90091-20618 New Genuine Part
9009901520 90099-01520 New Genuine Part
9009932128 90099-32128 Grommet
9011906100 90119-06100 BOLT
9011906336 90119-06336 SCREW
9011906429 90119-06429 New Genuine Part
9011906429 90119-06553 New Genuine Part
9011906429 91651-F0625 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9359056014 93590-56014 New Genuine Part
