LJ77

Toyota LAND-CRUISER · 1990 · 6,436 parts · 229 categories
LJ77 ×

← Back to categories

6,436 items

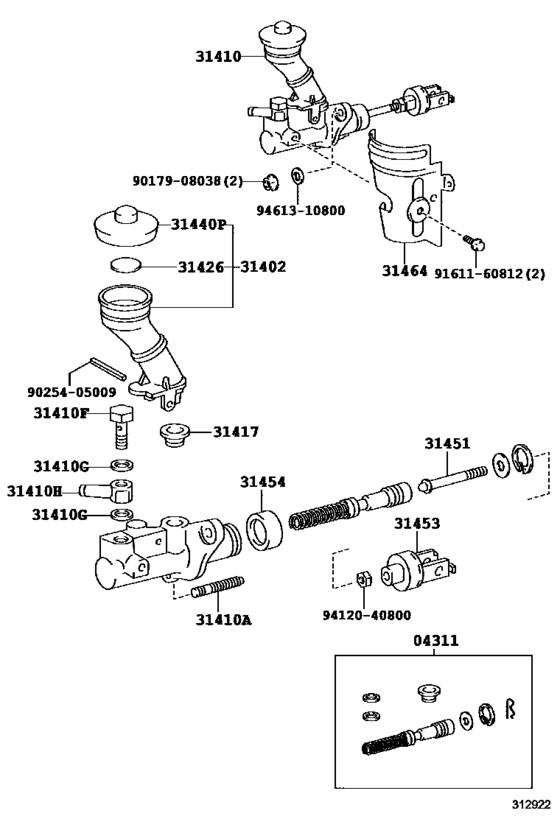

Clutch Master Cylinder ([01.1990 - 05.1993] (9001-9305)LJ70,77..RHD) 22
#OEMPart name
4311 04311-60120 Cylinder Kit, Clutch Master
31402 31402-60040 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-60460 Cylinder Assy, Clutch Master
31410 90116-08146 Bolt(For Clutch Master Cylinder Setting)
31410 90401-10046 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
31410 90401-10056 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
31410 90430-10074 Gasket(For Oil Pressure Regulator)
31410 90405-10165 Union(For Clutch Master Cylinder To Flexible Hose Tube)
31417 31417-35010 Grommet
31426 31426-22020 Float, Clutch Master Cylinder Reservoir
31440 47230-20040 Cap, Clutch Master Cylinder Reservoir Filler
31451 31451-35080 Rod, Clutch Master Cylinder Push
31453 31404-35011 Clevis, Clutch Master Cylinder Push Rod
31453 31404-35013 Clevis, Clutch Master Cylinder Push Rod
31454 31454-60030 Boot, Clutch Master Cylinder
31464 31464-60100 Insulator, Clutch Master Cylinder Heat
9017908038 90179-08038 Nut
9025405009 90254-05009 New Genuine Part
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
