LJ77

Toyota LAND-CRUISER · 1990 · 6,436 parts · 229 categories

6,436 items

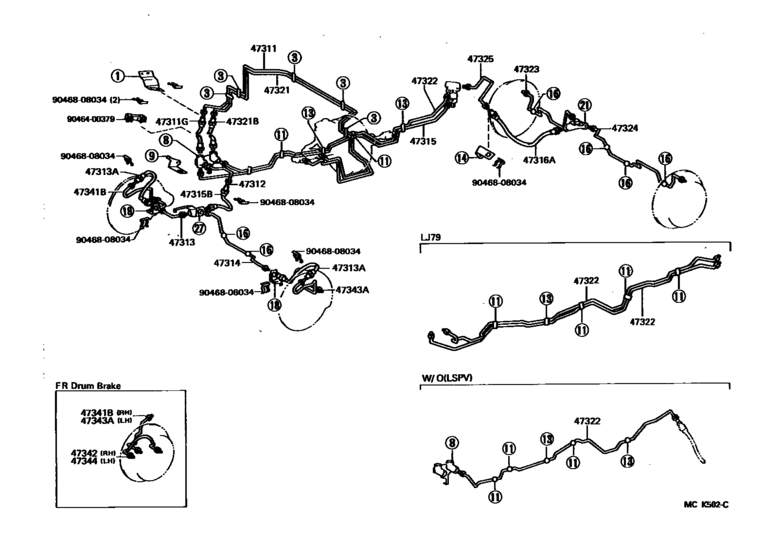

Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD) 24

#	OEM	Part name
47311	47312-60551	Tube, Front Brake, No.1
47311	96940-32406	Hose, Flexible(For Brake Tube)
47311	96940-32407	Hose, Flexible(For Brake Tube)
47311	96940-32756	Hose, Flexible(For Brake Tube)
47311	96940-32755	Hose, Flexible(For Brake Tube)
47312	47313-60161	Tube, Front Brake, No.2
47313	47314-60200	Tube, Front Brake, No.3
47313	96940-39855	Hose, Flexible, No.1(For Front)
47314	47315-60350	Tube, Front Brake, No.4
47315	47316-60350	Tube, Front Brake, No.5
47316	96940-34305	Hose, Flexible(For Brake Tube)
47321	47322-60441	Tube, Rear Brake, No.1
47321	96940-32106	Hose, Flexible(For Rear Rh)
47321	96940-32105	Hose, Flexible(For Rear Rh)
47321	96940-32306	Hose, Flexible(For Rear Brake Tube)
47321	96940-32305	Hose, Clutch, No.1
47322	47323-60440	Tube, Rear Brake, No.2
47323	47324-60180	Tube, Rear Brake, No.3
47324	47325-60140	Tube, Rear Brake, No.4
47325	47326-60071	Tube, Rear Brake, No.5
47341	47341-60060	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-60060	Tube, Wheel Cylinder, Front Lh No.1
9046400379	90464-00379	Clamp
9046808034	90468-08034	CLIP

OEM	Part name	Category
47312-60551	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47313-60161	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47314-60200	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47315-60350	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47316-60350	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47322-60441	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47323-60440	Tube, Rear Brake, No.2	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47324-60180	Tube, Rear Brake, No.3	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47325-60140	Tube, Rear Brake, No.4	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47326-60071	Tube, Rear Brake, No.5	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47341-60060	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
47343-60060	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
90464-00379	Clamp	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
90468-08034	CLIP	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32105	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32106	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32305	Hose, Clutch, No.1	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32306	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32406	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32407	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32755	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-32756	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-34305	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
96940-39855	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.1990 - 04.1996] (9001-9604)LJ7#..LHD)
