LJ71

Toyota LAND-CRUISER · 1985 · 5,924 parts · 225 categories
LJ71 ×

← Back to categories

5,924 items

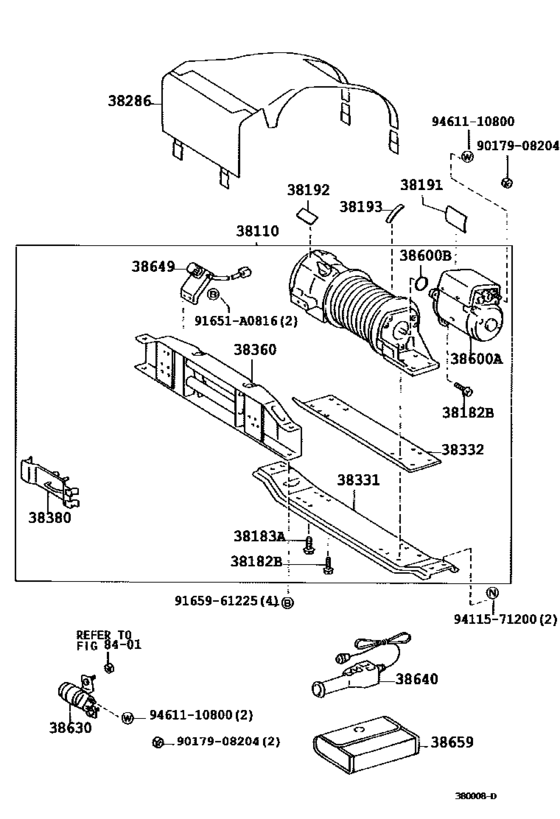

Winch ([04.1990 - 04.1996] ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ (9004-9604)KZJ7#,LJ7#) 70
#OEMPart name
28199 28199-15090 Cover, Starter End Frame
38110 38110-60210 Winch Assy
38110 38110-60214 Winch Assy
38110 38110-60211 Winch Assy
38110 38110-60212 Winch Assy
38182 38182-41018 Bolt, Winch, No.1
38182 38182-60830 Bolt, Winch, No.1
38182 38182-61025 Bolt, Winch, No.1
38182 38182-61022 Bolt, Winch, No.1
38182 38183-61235 Bolt, Winch, No.1
38182 91651-A0816 Bolt, Winch, No.1
38191 38191-60061 Plate, Winch Caution, No.1
38191 38191-60112 Plate, Winch Caution, No.1
38286 38286-60110 Cover, Winch
38331 38331-60210 Base, Winch, No.1
38332 38332-60210 Base, Winch, No.2
38332 38332-60170 Base, Winch, No.2
38360 38360-60030 Bracket Assy, Winch Roller
38360 38360-60032 Bracket Assy, Winch Roller
38360 38380-60021 Holder Assy, Winch Hook
38360 38380-60022 Holder Assy, Winch Hook
38360 38360-60031 Bracket Assy, Winch Roller
38380 38380-60020 Holder Assy, Winch Hook
38600 38600-60080 Motor Assy, W/magnet Switch, Winch
38600 38600-60091 Motor Assy, W/magnet Switch, Winch
38600 90301-59044 Ring, O (For Winch Gear Case Cover)
38601 38601-60050 Yoke Sub-Assy, Winch Motor
38603 38603-60050 Armature Sub-Assy, Winch Motor
38603 90099-10130 Bearing, No.1 (For Winch Motor Armature)
38603 90099-10201 Bearing, No.2 (For Winch Motor Armature)
38604 38604-60050 Holder Assy, Winch Motor Brush
38604 38604-60051 Holder Assy, Winch Motor Brush
38610 38610-60080 Motor Assy, Winch
38610 38610-60081 Motor Assy, Winch
38611 38611-60010 Switch, Magnet, No.2 (For Winch Motor)
38611 38611-60011 Switch, Magnet, No.2 (For Winch Motor)
38612 38612-60050 Frame, Winch Motor End
38612 38612-60060 Frame, Winch Motor End
38613 38613-60010 Brush, Winch Motor
38613 38613-60011 Brush, Winch Motor
38613 28143-46012 Spring, Winch Motor Brush
38614 90099-14023 Ring, O(For Starter Cover)
38618 38618-60080 Frame, Winch Motor Commutator End
38621 38621-60050 Cover, Magnet Switch Winch
38623 38623-60010 Stopper, Wimch Motor
38625 38625-60010 Bolt, Stud Winch Motor
38626 38626-60010 Bushing, Stepped Female Winch Motor
38627 38627-60011 Bushing, Stepped Male Winch Motor
38629 38629-60050 Wire, Winch Motor
38630 38630-60100 Switch Assy, Magnet, No.1
38639 38639-60050 Wire (For Winch Motor)
38640 38640-35010 Switch Assy, Winch Control
38649 38649-60020 Wire, Winch Control
38659 38659-60010 Cover, Winch Control Switch
9009300811 90093-00811 New Genuine Part
9009400606 90094-00606 New Genuine Part
9009900222 90099-00222 New Genuine Part
9009904584 90099-04584 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9165961225 91659-61225 BOLT
9321914008 93219-14008 Screw, W/washer(For Bearing Cover Setting)
9331116014 93311-16014 Screw
9338516016 93385-16016 New Genuine Part
9411571200 94115-71200 Nut(For Backing Plate To Steering Knuckle Setting)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451100400 94511-00400 WASHERSPRING
9451100800 94511-00800 WASHERSPRING
9461110800 94611-10800 Washer, Plate (For Transmission Control Cable)
9461240601 94612-40601 Washer
