Search › Model › LJ71

LJ71

Toyota LAND-CRUISER · 1985 · 5,924 parts · 225 categories

5,924 items

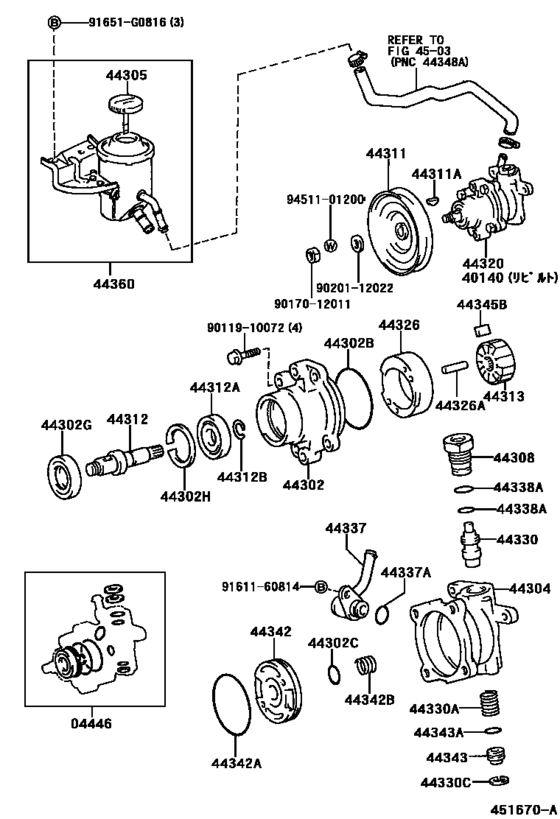

Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#) 66

#	OEM	Part name
4446	04446-60030	Gasket Kit, Power Steering Pump
40140	40140-60201	Pump Assy,vane Rebuilt
40140	44320-60201	Pump Assy, Vane
44302	44302-12010	Housing Sub-Assy, Vane Pump, Front
44302	90301-60001	Ring, O, No.1(For Vane Pump Housing)
44302	96711-19016	Ring, O (For 5Th Shift Arm Shaft)
44302	90311-24001	Seal, Oil, No.1(For Vane Pump Housing)
44302	90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)
44304	44304-35041	Housing Sub-Assy, Vane Pump, Rear
44305	44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-35030	Union Sub-Assy, Pressure Port
44311	44311-35030	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12010	Shaft, Vane Pump
44312	90363-17004	Bearing(For Vane Pump Shaft)
44312	90520-15001	Ring, Snap, No.1(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-60200	Pump Assy, Vane
44326	44325-12010	Ring, Cam(For Vane Pump)
44326	44325-12020	Ring, Cam(For Vane Pump)
44326	44325-12030	Ring, Cam(For Vane Pump)
44326	44325-12040	Ring, Cam(For Vane Pump)
44326	44325-12050	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-35131	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-35141	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-35151	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-35161	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-35171	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-35181	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-60040	Union, Power Steering Suction Port
44337	96711-19013	Ring, O(For Power Steering Suction Port)
44338	90301-22001	Ring, O(For Pressure Port Union)
44338	96711-19014	O-Ring
44342	44341-12010	Plate, Vane Pump Side, Front
44342	90301-53002	Ring, O(For Vane Pump Side Plate Rear)
44342	90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)
44343	44343-12040	Seat, Flow Control Spring
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-60110	Reservoir Assy, Vane Pump Oil
44360	44360-60111	Reservoir Assy, Vane Pump Oil
91651	91651-G0816	New Genuine Part
91651	90119-08856	BOLT W-WASHER
9011910072	90119-10072	New Genuine Part
9017012011	90170-12011	Nut(For Vane Pump Pulley)
9020112022	90201-12022	New Genuine Part
9161160814	91611-60814	Bolt
9451101200	94511-01200	WASHER

OEM	Part name	Category
04446-60030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
40140-60201	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44302-12010	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44304-35041	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44308-35030	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44311-35030	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44312-12010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44320-60200	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44320-60201	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44325-12010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44325-12020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44325-12030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44325-12040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44325-12050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35131	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35141	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35151	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35161	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35171	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44330-35181	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44337-60040	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44341-12010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44343-12040	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44360-60110	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
44360-60111	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90119-08856	BOLT W-WASHER	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90170-12011	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90201-12022	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90301-53002	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90301-60001	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90311-24001	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90363-17004	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90520-15001	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
90521-44002	Ring, Hole Snap(For Power Steering Gear Housing)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
91651-G0816	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
94511-01200	WASHER	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)
96711-19016	Ring, O (For 5Th Shift Arm Shaft)	Vane Pump & Reservoir (Power Steering) ([04.1990 - 05.1993] (9004-9305)LJ7#)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 225
Collected: 2026-08-02
