Search › Model › LJ70

LJ70

Toyota LAND-CRUISER · 1984 · 6,334 parts · 205 categories

6,334 items

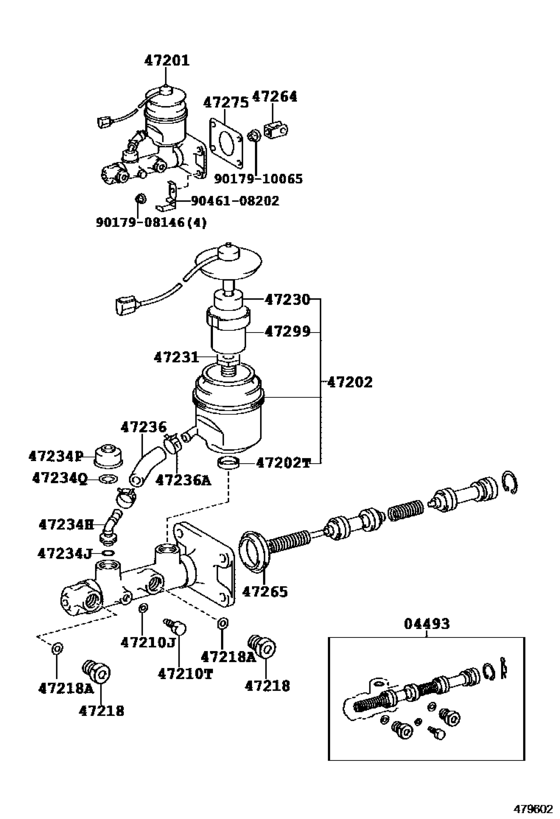

Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD) 41

#	OEM	Part name
4493	04493-60160	Cylinder Kit, Brake Master
4493	04493-60170	Cylinder Kit, Brake Master
4493	04493-60230	Cylinder Kit, Brake Master
4493	04493-60270	Cylinder Kit, Brake Master
47201	47201-60291	Cylinder Sub-Assy, Brake Master
47201	47201-60420	Cylinder Sub-Assy, Brake Master
47201	47201-60521	Cylinder Sub-Assy, Brake Master
47201	47201-60600	Cylinder Sub-Assy, Brake Master
47202	47202-60160	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-60030	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-60050	Reservoir Sub-Assy, Brake Master Cylinder
47202	90562-18151	Ring(For Clutch Master Cylinder Reservoir)
47210	90430-06104	Gasket(For Brake Actuator)
47210	90109-06008	Bolt(For Brake Master Cylinder)
47210	90109-06077	Bolt(For Brake Master Cylinder)
47218	47218-12040	Plug, Master Cylinder Fluid Outlet
47218	90430-09253	Gasket(For Clutch Master Cylinder Accumulator)
47230	47230-20100	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-47090	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-20140	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	84460-12070	Cap Assy, Brake Master Cylinder Reservoir Filler
47231	47231-20010	Bolt, Clutch Master Cylinder Reservoir Set
47234	90407-10004	Union, Reservoir(For Brake Master Cylinder Side)
47234	90301-14001	Ring, O(For Clutch Master Cylinder Union)
47234	47265-20060	Boot, Reservoir, No.1(For Brake Master Cylinder Side)
47234	96151-02000	Ring, Snap (For Low Coast Shift Control Valve)
47236	47234-14010	Tube, Reservoir, No.1
47236	90467-16001	Clamp, Oil Cooler Hose
47236	96133-41500	Clamp Or Clip(For Air Hose, No.5)
47264	47264-22010	Clevis, Master Cylinder Push Rod
47264	47264-28010	Clevis, Master Cylinder Push Rod
47264	47264-30040	Clevis, Master Cylinder Push Rod
47265	47265-20050	Boot, Clutch Master Cylinder
47275	47275-22010	Gasket, Brake Master Cylinder
47275	47275-24010	Gasket, Brake Master Cylinder
47299	47299-24010	Strainer, Brake Master Cylinder Reservoir
47299	47299-32010	Strainer, Brake Master Cylinder Reservoir
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9046108202	90461-08202	Clamp(For Brake Master Cylinder)

OEM	Part name	Category
04493-60160	Cylinder Kit, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
04493-60170	Cylinder Kit, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
04493-60230	Cylinder Kit, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
04493-60270	Cylinder Kit, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47201-60291	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47201-60420	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47201-60521	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47201-60600	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47202-60160	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47218-12040	Plug, Master Cylinder Fluid Outlet	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47220-60030	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47220-60050	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47230-20100	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47230-20140	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47230-47090	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47231-20010	Bolt, Clutch Master Cylinder Reservoir Set	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47234-14010	Tube, Reservoir, No.1	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47264-22010	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47264-28010	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47264-30040	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47265-20050	Boot, Clutch Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47265-20060	Boot, Reservoir, No.1(For Brake Master Cylinder Side)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47275-22010	Gasket, Brake Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47275-24010	Gasket, Brake Master Cylinder	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47299-24010	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
47299-32010	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
84460-12070	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90109-06008	Bolt(For Brake Master Cylinder)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90109-06077	Bolt(For Brake Master Cylinder)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90179-08146	Nut	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90179-08204	Nut	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90301-14001	Ring, O(For Clutch Master Cylinder Union)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90407-10004	Union, Reservoir(For Brake Master Cylinder Side)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90430-06104	Gasket(For Brake Actuator)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90430-09253	Gasket(For Clutch Master Cylinder Accumulator)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90461-08202	Clamp(For Brake Master Cylinder)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90467-16001	Clamp, Oil Cooler Hose	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
90562-18151	Ring(For Clutch Master Cylinder Reservoir)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)
96151-02000	Ring, Snap (For Low Coast Shift Control Valve)	Brake Master Cylinder ([01.1990 - 01.1995] (9001-9108)HZJ7#,PZJ7# ; (9001-9309)BJ73,RJ7# ; (9001-9501)LJ7#..LHD)

Source: Public OEM parts-catalog data
Variants: 2 / 33
Category: 205
Collected: 2026-08-02
