Search › Model › LJ150

LJ150

Toyota LAND-CRUISER-PRADO · 2009 · 7,037 parts · 281 categories
LJ150 ×

← Back to categories

7,037 items

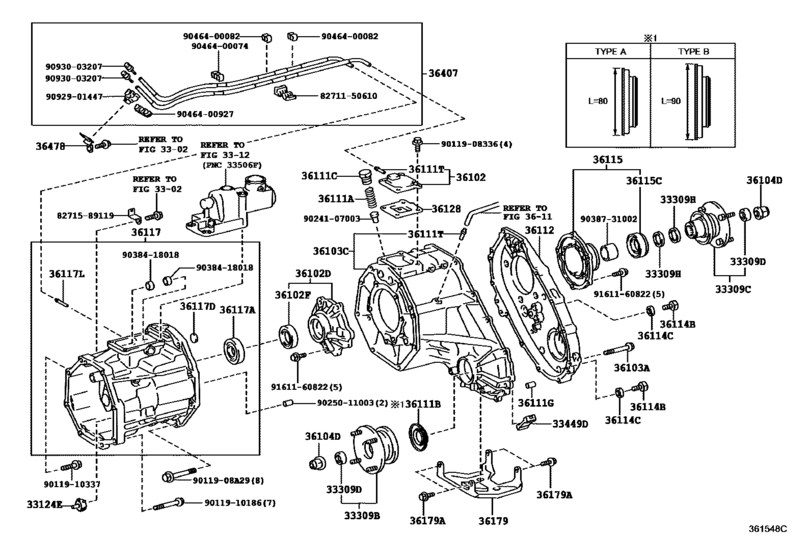

Transfer Case & Extension Housing ([08.2009 - ] (0908- )LJ150) 51
#OEMPart name
33124 33124-36010 Pipe, Oil Receiver(Mtm)
33309 33309-35111 Flange Sub-Assy, Output Shaft Companion
33309 33309-35112 Flange Sub-Assy, Output Shaft Companion
33309 33309-35113 Flange Sub Assembly Out
33309 90311-41017 Seal, Oil (For Transfer Case)
33309 33309-35120 Flange Sub-Assy, Output Shaft Companion
33309 90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)
33309 36275-35030 Washer, Transfer Output Shaft
33449 33449-32020 Magnet, Transmission
36102 36102-35040 Cover Sub-Assy, Transfer Case
36102 36102-35060 Retainer Sub-Assy, Transfer Rh Bearing
36102 90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36103 90119-08A28 Bolt (For Transfer Case)
36103 36103-35070 Case, Transfer, Front
36104 90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)
36111 90501-20091 Spring, Compression (For Transfer Case)
36111 90311-41013 Seal, Oil (For Transfer Case)
36111 90341-14012 Plug (For Transfer Case)
36111 90250-10214 Pin, Straight(For End Plate)
36111 90441-05001 Tube (For Transfer Case)
36112 36112-35090 Case, Transfer, Rear
36114 90341-18006 Plug (No magnet)
36114 90430-18008 Gasket
36114 90430-T0021 Gasket(For Manual Transmission Filler Plug)
36115 36105-35050 Housing Sub-Assy, Transfer Extension, Front
36115 90311-41007 Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115 90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)
36117 36107-60050 Adapter, Transfer
36117 90311-43007 Seal, Oil(For Transfer Case Adapter Rear)
36117 90331-21003 Plug(For Transfer Adapter)
36128 36128-35060 Deflector Sub-Assy, Breather Oil
36179 36179-60030 Protector, Transfer Case Lower
36179 91611-G0820 Bolt
36407 36407-60280 Hose Sub-Assy, Transfer Breather
36478 36478-60110 Bracket, Transfer Breather
9011908 90119-08A29 Bolt(For Head To Camshaft Bearing Cap)
8271150610 82711-50610 Wire, Fuse To Fuse(for Combustion Heater)
8271589119 82715-89119 Bracket,wiring Harness Clamp
9011908336 90119-08336 BOLT
9011910186 90119-10186 BOLT
9011910337 90119-10337 BOLT
9024107003 90241-07003 Pin, Slotted Spring (For Transfer Case)
9025011003 90250-11003 Pin, Ring(For Transfer Case)
9038418018 90384-18018 Bush(For Shift Outer Lever)
9038731002 90387-31002 COLLAR
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400927 90464-00927 New Genuine Part
9092901447 90929-01447 New Genuine Part
9093003207 90930-03207 New Genuine Part
9161160822 91611-60822 Bolt
