LJ150

Toyota LAND-CRUISER-PRADO · 2009 · 7,037 parts · 281 categories

← Back to categories

7,037 items

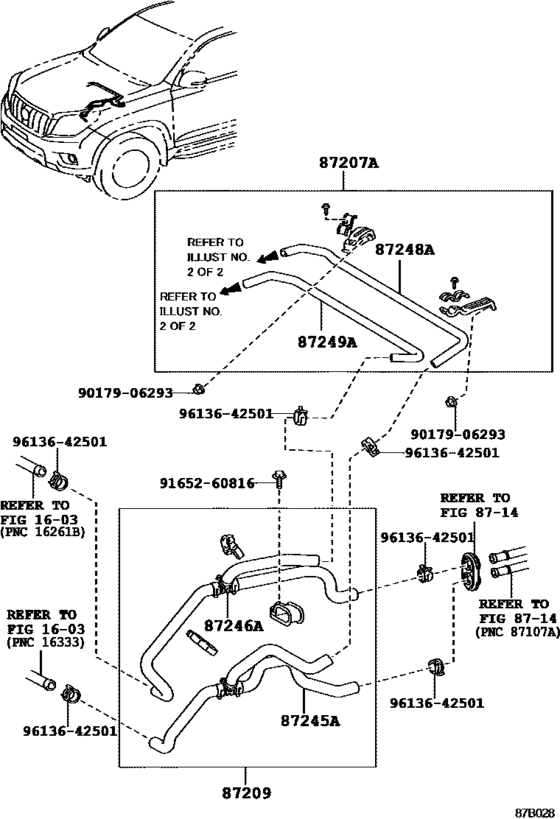

Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150) 15

#	OEM	Part name
87207	87207-60160	Pipe & Hose Sub-Assy, Water A
87209	87209-60D20	Hose Sub-Assy, Water
87209	87209-60D70	Hose Sub-Assy, Water
87209	87209-60D71	Hose Sub-Assy, Water
87245	87209-60E90	Hose, Heater Water, Inlet A
87245	87209-60E91	Hose, Heater Water, Inlet A
87245	87245-60G70	Hose, Heater Water, Inlet A
87246	87209-60E80	Hose, Heater Water, Outlet A
87246	87209-60E81	Hose, Heater Water, Outlet A
87246	87245-60G60	Hose, Heater Water, Outlet A
87248	87208-60860	Pipe, Heater Water Inlet, A
87249	87208-60850	Pipe, Heater Water Outlet, A
9017906293	90179-06293	NUT
9165260816	91652-60816	New Genuine Part
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
87207-60160	Pipe & Hose Sub-Assy, Water A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87208-60850	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87208-60860	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60D20	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60D70	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60D71	Hose Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60E80	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60E81	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60E90	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87209-60E91	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87245-60G60	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
87245-60G70	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
90179-06293	NUT	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
91652-60816	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
96136-42501	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([08.2009 - ] FRONT,W(REAR HEATAER) (0908- )LJ150)
