Search › Model › LJ125
LJ125

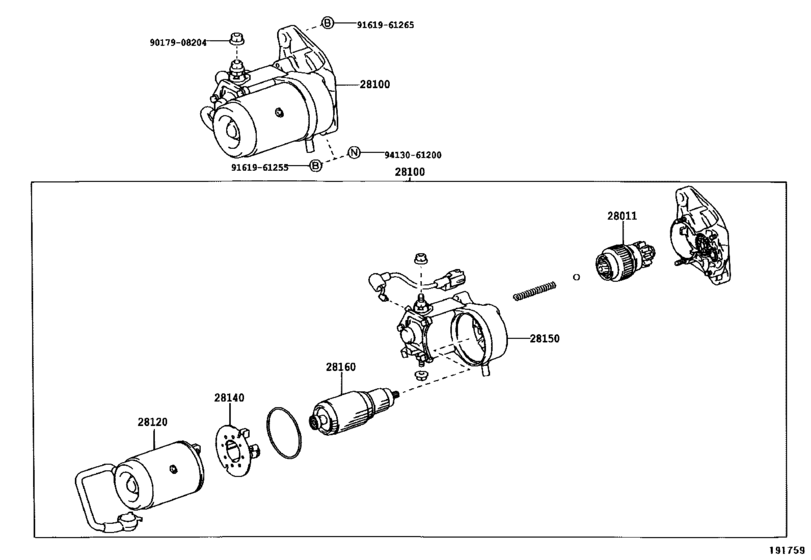

Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) 12
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-54450 | Clutch Sub-Assy, Starter |
| 28100 | 28100-54450 | Starter Assy |
| 28100 | 28100-54451 | Starter Assy |
| 28120 | 28120-64040 | Yoke Assy, Starter |
| 28140 | 28140-64040 | Holder Assy, Starter Brush |
| 28150 | 28150-54330 | Switch Assy, Magnet Starter |
| 28160 | 28160-64041 | Armature Assy, Starter |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161961255 | 91619-61255 | Bolt(For Transaxle & Engine Setting) |
| 9161961265 | 91619-61265 | Bolt(For Transaxle & Engine Setting) |
| 9413061200 | 94130-61200 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 28011-54450 | Clutch Sub-Assy, Starter | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28100-54450 | Starter Assy | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28100-54451 | Starter Assy | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28120-64040 | Yoke Assy, Starter | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28140-64040 | Holder Assy, Starter Brush | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28150-54330 | Switch Assy, Magnet Starter | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 28160-64041 | Armature Assy, Starter | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 90080-18070 | NUT, WWASHER | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 90179-08204 | Nut | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 91619-61255 | Bolt(For Transaxle & Engine Setting) | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 91619-61265 | Bolt(For Transaxle & Engine Setting) | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
| 94130-61200 | Nut | Starter ([09.2002 - ] 12V 2.2KW (0209- )5LE) |
