Search › Model › LJ125

LJ125

Toyota LAND-CRUISER-PRADO · 2002 · 4,599 parts · 209 categories
LJ125 ×

← Back to categories

4,599 items

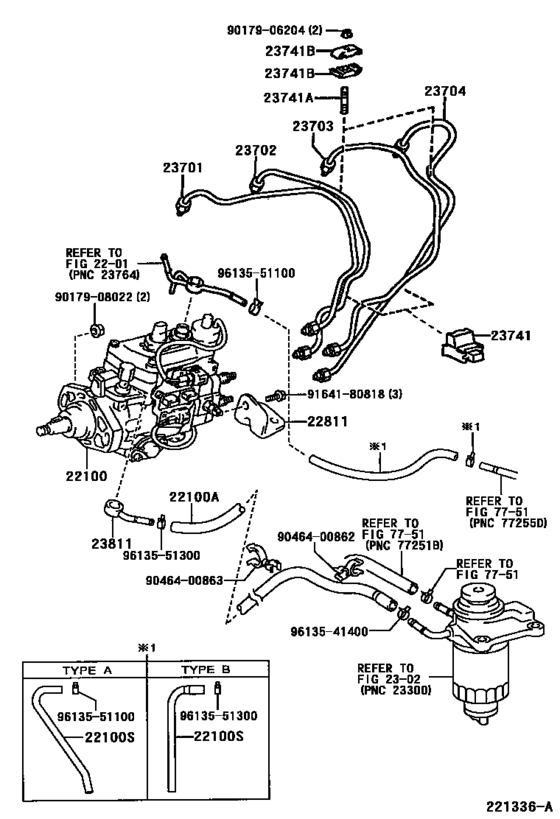

Injection Pump Assembly ([09.2002 - ] (0209- )5LE) 23
#OEMPart name
22100 22100-5D180 Pump Assy, Injection Or Supply
22100 23271-54210 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23273-54140 Hose, Fuel(For Injection Pump To Fuel Pipe)
22811 22811-05020 Stay, Injection Pump, No.1
22811 22811-05021 Stay, Injection Pump, No.1
23701 23701-54140 Pipe Sub-Assy, Injection, No.1
23702 23702-54140 Pipe Sub-Assy, Injection, No.2
23703 23703-54100 Pipe Sub-Assy, Injection, No.3
23703 23703-05011 Pipe Sub-Assy, Injection, No.3
23704 23704-54100 Pipe Sub-Assy, Injection, No.4
23704 23704-05010 Pipe Sub-Assy, Injection, No.4
23741 23741-54030 Clamp, Injection Pipe, No.1
23741 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
23741 23741-56010 Clamp, Injection Pipe, No.1
23811 23811-54220 Pipe, Fuel(For Fuel Filter To Injection Pump)
9017906204 90179-06204 NUT
9017908022 90179-08022 NUT
9046400862 90464-00862 Clip, Fuel Hose
9046400863 90464-00863 New Genuine Part
9164180818 91641-80818 BOLT WWASHER
9613541400 96135-41400 Clip(For Water By-Pass Hose No.1)
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9613551300 96135-51300 Clamp, Hose
Source
Public OEM parts-catalog data
