Search › Model › LJ125
LJ125

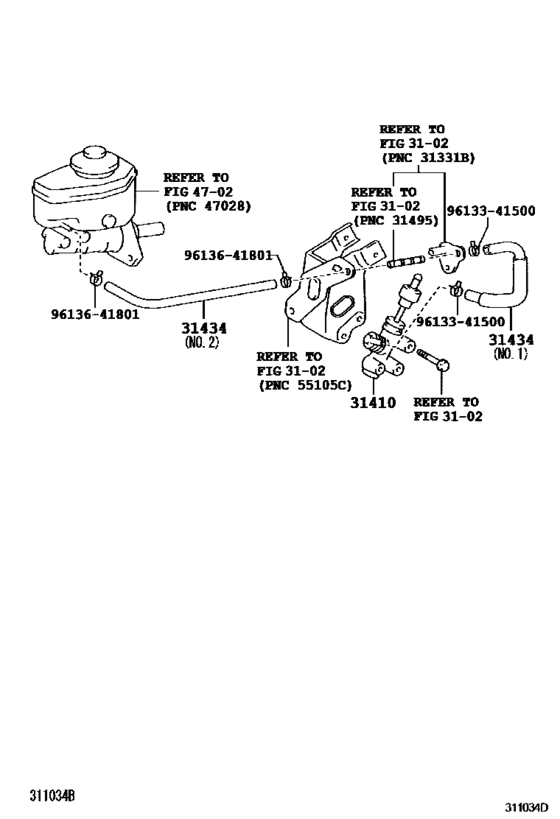

Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) 6
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-60030 | Cylinder Assy, Clutch Master |
| 31410 | 31420-60032 | Cylinder Assy, Clutch Master |
| 31434 | 31434-60010 | Tube, Clutch Reservoir |
| 31434 | 31434-60020 | Tube, Clutch Reservoir |
| 9613341500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| 9613641801 | 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) |
| OEM | Part name | Category |
|---|---|---|
| 31420-60030 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
| 31420-60032 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
| 31434-60010 | Tube, Clutch Reservoir | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
| 31434-60020 | Tube, Clutch Reservoir | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
| 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) | Clutch Master Cylinder ([09.2002 - ] (0209- )LHD..MTM) |
