Search › Model › LJ125
LJ125

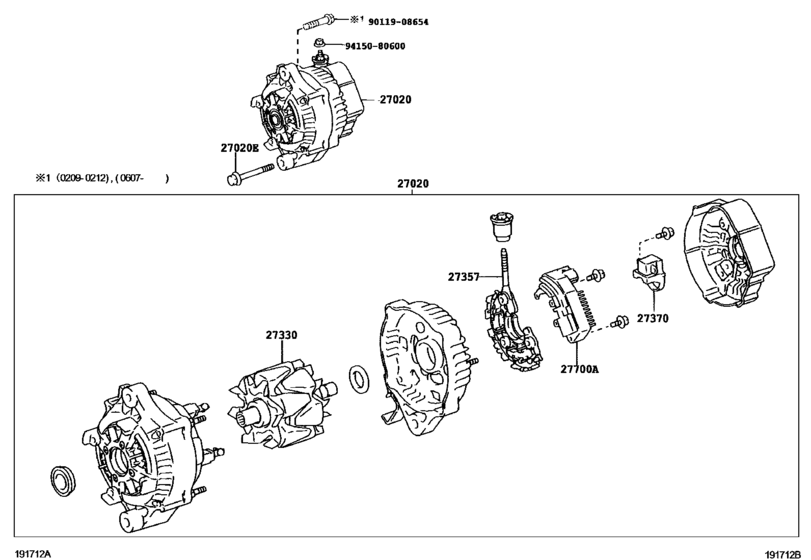

Alternator ([09.2002 - ] 12V 90A (0209- )5LE) 8
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-54430 | Alternator Assy |
| 27020 | 90105-10287 | Bolt(For Alternator) |
| 27330 | 27330-64300 | Rotor Assy, Alternator |
| 27357 | 27357-16310 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27700 | 27700-50030 | Regulator Assy, Generator |
| 9011908654 | 90119-08654 | BOLT WWASHER |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-54430 | Alternator Assy | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 27330-64300 | Rotor Assy, Alternator | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 27357-16310 | Holder, Alternator, W/rectifier | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 27700-50030 | Regulator Assy, Generator | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 90105-10287 | Bolt(For Alternator) | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 90119-08654 | BOLT WWASHER | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
| 94150-80600 | NUT FLANGE | Alternator ([09.2002 - ] 12V 90A (0209- )5LE) |
