Search › Model › LH85

LH85

Toyota HIACE · 1985 · 5,323 parts · 207 categories

5,323 items

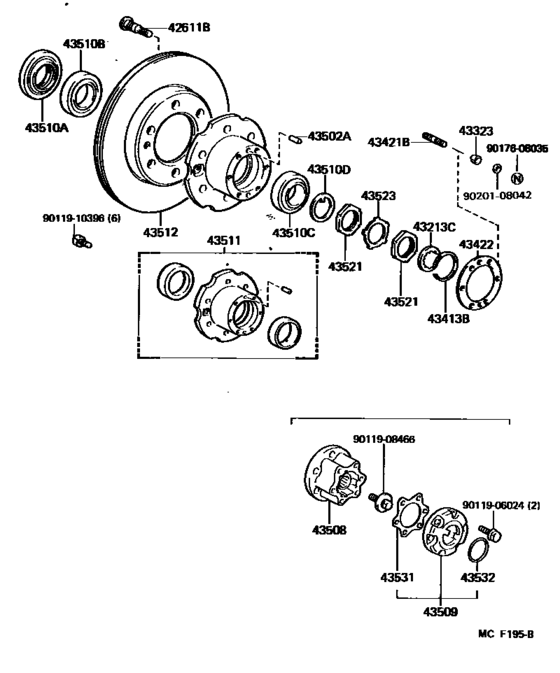

Front Axle Hub ([11.1987 - ] (8711- )LH85) 34

#	OEM	Part name
42611	90942-02049	Bolt, Hub
42611	90942-02082	Bolt, Hub
43213	90560-27005	Spacer (For Drive Shaft)
43323	42323-60010	Washer, Cone (For Axle Shaft)
43413	90520-27023	Ring, Snap (For Front Drive Shaft)
43421	90116-08325	Bolt, Stud (For Axle Hub)
43422	43422-60020	Gasket, Axle Shaft
43422	43422-60010	Gasket, Axle Shaft
43502	90250-07057	Pin, Straight (For Axle Hub)
43508	43508-35010	Body Sub-Assy, Free Wheel Hub
43508	43508-35050	Body Sub-Assy, Free Wheel Hub
43509	43509-35030	Cover Sub-Assy, Free Wheel Hub
43510	90311-66001	Seal, Oil (For Front Axle Hub)
43510	90311-66003	Seal, Oil (For Front Axle Hub )
43510	90080-36064	Bearing (For Rear Axle Shaft Inner)
43510	90368-49084	Bearing (For Axle Shaft Inner)
43510	90080-36067	Bearing (For Rear Axle Shaft Outer)
43510	90368-45087	Bearing (For Axle Shaft Outer)
43510	90214-42030	Washer, Claw (For Rear Axle Shaft)
43511	43511-35904	Hub Sub-Assy, Front Axle
43511	43502-29095	Hub Sub-Assy, Front Axle
43511	43511-35905	Hub Sub-Assy, Front Axle, Rh
43511	43511-39015	Hub Sub-Assy, Front Axle
43512	43512-26081	Disc, Front
43521	43521-60011	Nut, Front Wheel Adjusting
43523	90215-42025	Washer, Front Wheel Adjusting Lock
43531	43531-60010	Gasket, Free Wheel Hub - (manual free-wheel hub)
43532	43532-60010	Ring, Free Wheel Hub
9011906024	90119-06024	BOLTWWASHER
9011906024	91641-80616	BOLT W-WASHER
9011908466	90119-08466	BOLT
9011910396	90119-10396	Bolt(For Backing Plate To Rear Axle Housing Setting)
9017608035	90176-08035	Nut
9020108042	90201-08042	WASHER

OEM	Part name	Category
42323-60010	Washer, Cone (For Axle Shaft)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43422-60010	Gasket, Axle Shaft	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43422-60020	Gasket, Axle Shaft	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43502-29095	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43508-35010	Body Sub-Assy, Free Wheel Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43508-35050	Body Sub-Assy, Free Wheel Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43509-35030	Cover Sub-Assy, Free Wheel Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43511-35904	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43511-35905	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43511-39015	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43512-26081	Disc, Front	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43521-60011	Nut, Front Wheel Adjusting	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43531-60010	Gasket, Free Wheel Hub - (manual free-wheel hub)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
43532-60010	Ring, Free Wheel Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90080-36064	Bearing (For Rear Axle Shaft Inner)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90080-36067	Bearing (For Rear Axle Shaft Outer)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90116-08325	Bolt, Stud (For Axle Hub)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90119-06024	BOLTWWASHER	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90119-08466	BOLT	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90119-10396	Bolt(For Backing Plate To Rear Axle Housing Setting)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90176-08035	Nut	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90201-08042	WASHER	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90214-42030	Washer, Claw (For Rear Axle Shaft)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90215-42025	Washer, Front Wheel Adjusting Lock	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90250-07057	Pin, Straight (For Axle Hub)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90311-66001	Seal, Oil (For Front Axle Hub)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90311-66003	Seal, Oil (For Front Axle Hub )	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90368-45087	Bearing (For Axle Shaft Outer)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90368-49084	Bearing (For Axle Shaft Inner)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90520-27023	Ring, Snap (For Front Drive Shaft)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90560-27005	Spacer (For Drive Shaft)	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90942-02049	Bolt, Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
90942-02082	Bolt, Hub	Front Axle Hub ([11.1987 - ] (8711- )LH85)
91641-80616	BOLT W-WASHER	Front Axle Hub ([11.1987 - ] (8711- )LH85)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 207
Collected: 2026-08-03
