Search › Model › LH85

LH85

Toyota HIACE · 1985 · 5,323 parts · 207 categories

5,323 items

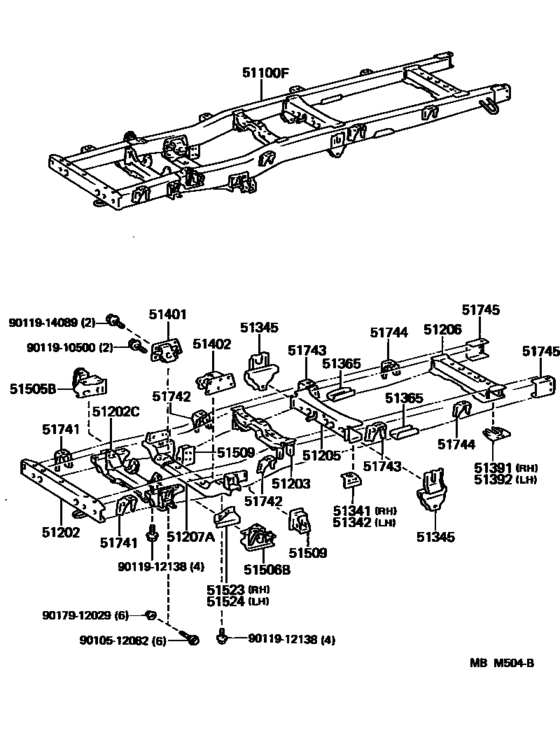

Frame ([11.1987 - ] (8711- )LH85) 43

#	OEM	Part name
51100	51001-26530	Frame Sub-Assy
51100	44410-26340	Tube Assy, Pressure Feed
51100	45310-25090	Housing Assy, Steering Gear
51100	45312-26160	Bracket, Steering Gear Housing
51100	51001-26531	Frame Sub-Assy
51100	90105-12234	New Genuine Part
51100	90105-14085	New Genuine Part
51100	90105-14086	New Genuine Part
51100	90170-14012	Nut, Rack End Lock
51100	90179-14019	Nut
51100	90461-12389	New Genuine Part
51100	90949-01770	New Genuine Part
51100	94621-11200	New Genuine Part
51100	94621-11400	WASHER
51202	51201-26081	Crossmember Sub-Assy, Frame, No.1
51202	51202-26050	Crossmember Sub-Assy, Front Suspension, Lower
51203	51203-26130	Crossmember Sub-Assy, Frame, No.2
51203	51203-26132	Crossmember Sub-Assy, Frame, No.3
51203	51203-26131	Crossmember Sub-Assy, Frame, No.2
51205	51204-26020	Crossmember Sub-Assy, Frame, No.4
51205	51204-26021	Crossmember Sub-Assy, Frame, No.4
51206	51209-26030	Crossmember Sub-Assy, Frame, No.5
51206	51209-26040	Crossmember Sub-Assy, Frame, No.5
51207	51207-26010	Member Sub-Assy, Differential Support
51341	51342-26020	Gusset, Frame No.4 Crossmember, Rh
51345	51345-26030	Bracket, Rear Spring, Front
51365	51365-26020	Stopper, Rear Bumper
51391	51393-26010	Gusset, Frame Rear Crossmember, Rh
51401	51401-26020	Bracket Sub-Assy, Engine Front Mounting, Rh
51402	51402-26010	Bracket Sub-Assy, Engine Front Mounting, Lh
51505	51505-26020	Support Sub-Assy, Upper Control Arm
51506	51506-26020	Support Sub-Assy, Upper Control Arm
51509	51509-26010	Support Sub-Assy, Stabilizer
51523	51523-26030	Reinforcement, Upper Control Arm Support, Rh
51524	51524-26030	Reinforcement, Upper Control Arm Support, Lh
51741	51711-26080	Bracket Sub-Assy, Cab Mounting, No.1 Rh
51742	51743-26010	Bracket, Rear Body Mounting, No.1
51745	51744-26011	Bracket, Body Mounting, No.5
9010512082	90105-12082	Bolt(For Strut Rod)
9011910500	90119-10500	New Genuine Part
9011912138	90119-12138	New Genuine Part
9011914089	90119-14089	BOLT WWASHER
9017912029	90179-12029	Nut (For Absorber Setting)

OEM	Part name	Category
44410-26340	Tube Assy, Pressure Feed	Frame ([11.1987 - ] (8711- )LH85)
45310-25090	Housing Assy, Steering Gear	Frame ([11.1987 - ] (8711- )LH85)
45312-26160	Bracket, Steering Gear Housing	Frame ([11.1987 - ] (8711- )LH85)
51001-26530	Frame Sub-Assy	Frame ([11.1987 - ] (8711- )LH85)
51001-26531	Frame Sub-Assy	Frame ([11.1987 - ] (8711- )LH85)
51201-26081	Crossmember Sub-Assy, Frame, No.1	Frame ([11.1987 - ] (8711- )LH85)
51202-26050	Crossmember Sub-Assy, Front Suspension, Lower	Frame ([11.1987 - ] (8711- )LH85)
51203-26130	Crossmember Sub-Assy, Frame, No.2	Frame ([11.1987 - ] (8711- )LH85)
51203-26131	Crossmember Sub-Assy, Frame, No.2	Frame ([11.1987 - ] (8711- )LH85)
51203-26132	Crossmember Sub-Assy, Frame, No.3	Frame ([11.1987 - ] (8711- )LH85)
51204-26020	Crossmember Sub-Assy, Frame, No.4	Frame ([11.1987 - ] (8711- )LH85)
51204-26021	Crossmember Sub-Assy, Frame, No.4	Frame ([11.1987 - ] (8711- )LH85)
51207-26010	Member Sub-Assy, Differential Support	Frame ([11.1987 - ] (8711- )LH85)
51209-26030	Crossmember Sub-Assy, Frame, No.5	Frame ([11.1987 - ] (8711- )LH85)
51209-26040	Crossmember Sub-Assy, Frame, No.5	Frame ([11.1987 - ] (8711- )LH85)
51342-26020	Gusset, Frame No.4 Crossmember, Rh	Frame ([11.1987 - ] (8711- )LH85)
51345-26030	Bracket, Rear Spring, Front	Frame ([11.1987 - ] (8711- )LH85)
51365-26020	Stopper, Rear Bumper	Frame ([11.1987 - ] (8711- )LH85)
51393-26010	Gusset, Frame Rear Crossmember, Rh	Frame ([11.1987 - ] (8711- )LH85)
51401-26020	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([11.1987 - ] (8711- )LH85)
51402-26010	Bracket Sub-Assy, Engine Front Mounting, Lh	Frame ([11.1987 - ] (8711- )LH85)
51505-26020	Support Sub-Assy, Upper Control Arm	Frame ([11.1987 - ] (8711- )LH85)
51506-26020	Support Sub-Assy, Upper Control Arm	Frame ([11.1987 - ] (8711- )LH85)
51509-26010	Support Sub-Assy, Stabilizer	Frame ([11.1987 - ] (8711- )LH85)
51523-26030	Reinforcement, Upper Control Arm Support, Rh	Frame ([11.1987 - ] (8711- )LH85)
51524-26030	Reinforcement, Upper Control Arm Support, Lh	Frame ([11.1987 - ] (8711- )LH85)
51711-26080	Bracket Sub-Assy, Cab Mounting, No.1 Rh	Frame ([11.1987 - ] (8711- )LH85)
51743-26010	Bracket, Rear Body Mounting, No.1	Frame ([11.1987 - ] (8711- )LH85)
51744-26011	Bracket, Body Mounting, No.5	Frame ([11.1987 - ] (8711- )LH85)
90105-12082	Bolt(For Strut Rod)	Frame ([11.1987 - ] (8711- )LH85)
90105-12234	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90105-14085	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90105-14086	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90119-10500	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90119-12138	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90119-14089	BOLT WWASHER	Frame ([11.1987 - ] (8711- )LH85)
90170-14012	Nut, Rack End Lock	Frame ([11.1987 - ] (8711- )LH85)
90179-12029	Nut (For Absorber Setting)	Frame ([11.1987 - ] (8711- )LH85)
90179-14019	Nut	Frame ([11.1987 - ] (8711- )LH85)
90461-12389	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
90949-01770	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
94621-11200	New Genuine Part	Frame ([11.1987 - ] (8711- )LH85)
94621-11400	WASHER	Frame ([11.1987 - ] (8711- )LH85)
