LH82

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 1999 · 4,131 parts · 180 categories

4,131 items

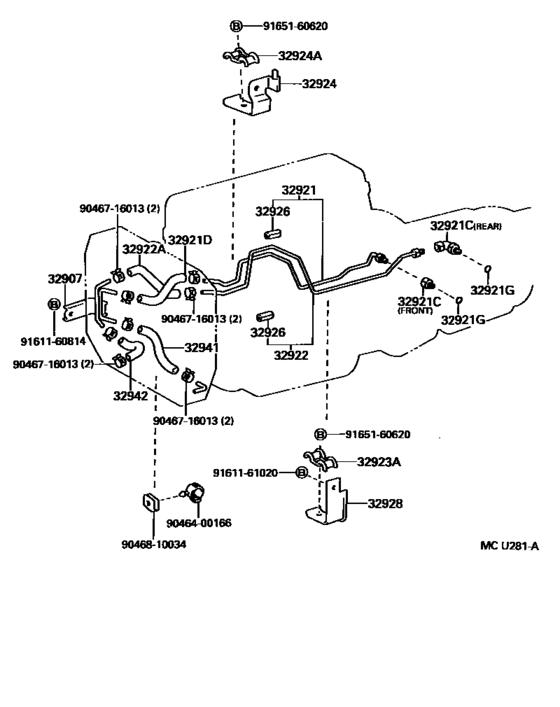

Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM) 22

#	OEM	Part name
32907	32907-25010	Tube Sub-Assy, Oil Cooler Outlet, No.2
32921	32921-25022	Tube, Oil Cooler Inlet, No.1
32921	90404-16021	Union(For Oil Cooler Tube)
32921	90407-16010	Union(For Oil Cooler Tube)
32921	32941-22181	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	32922-25022	Tube, Oil Cooler Outlet, No.1
32922	32942-25040	Hose(For Oil Cooler Outlet)
32923	90462-12044	Clamp, Automatic Transmission Oil Cooler Tube
32924	32924-26061	Clamp, Oil Cooler Tube, No.2
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	32928-26021	Clamp, Oil Cooler Tube, No.2
32941	32941-25020	Hose, Oil Cooler Inlet, No.1
32942	32942-25020	Hose, Oil Cooler Outlet, No.1
9046400166	90464-00166	Clamp, Automatic Transmission Oil Cooler Tube, No.7
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9046810034	90468-10034	CLIP
9161160814	91611-60814	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165160620	91651-60620	BOLTWWASHER

OEM	Part name	Category
32907-25010	Tube Sub-Assy, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32921-25022	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32922-25022	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32924-26061	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32928-26021	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32941-22181	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32941-25020	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32942-25020	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
32942-25040	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90404-16021	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90462-12044	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90464-00166	Clamp, Automatic Transmission Oil Cooler Tube, No.7	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
90468-10034	CLIP	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
91611-60814	Bolt	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
91611-61020	Bolt(For Transaxle & Engine Setting)	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
91651-60620	BOLTWWASHER	Oil Cooler & Tube (Atm) ([05.1995 - ] A44DE (9505- )ATM)
