LH81

Toyota QUICK-DELIVERY-URBAN-SUPPORTER · 1995 · 4,299 parts · 180 categories

← Back to categories

4,299 items

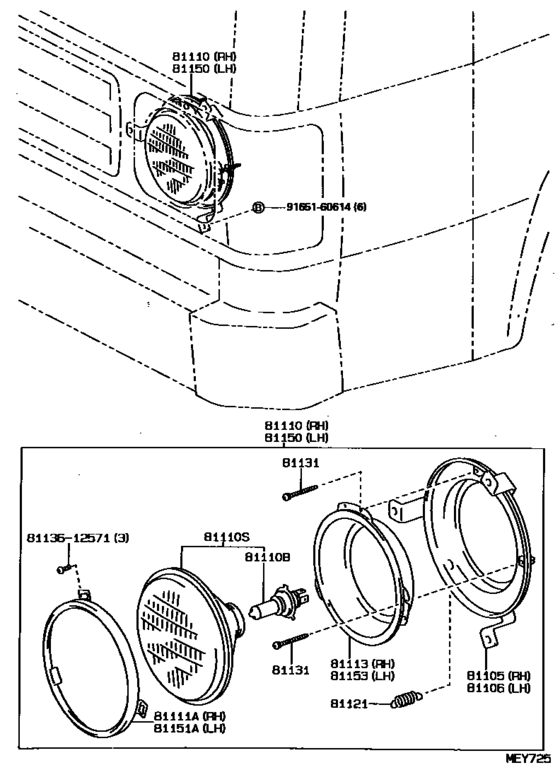

Headlamp ([05.1995 - ] (9505- )LH8#,LY15#) 18

#	OEM	Part name
81105	81105-90D00	Housing Sub-Assy, Headlamp, Rh
81106	81106-90D00	Housing Sub-Assy, Headlamp, Lh
81110	81110-25130	Headlamp Assy, Rh
81110	81110-25131	Headlamp Assy, Rh
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90981-22004	Bulb(For Headlamp, No.1)
81110	90981-01050	Sealed Beam Unit, No.1
81110	90981-01054	Sealed Beam Unit, No.1
81111	81111-89117	Ring, Sealed Beam Retaining
81113	81113-90A02	Ring, Sealed Beam Mounting, No.1 Rh
81121	81121-62010	Spring, Headlamp Tension
81131	81131-10031	Screw, Headlamp Adjusting
81150	81150-25110	Headlamp Assy, Lh
81150	81150-25111	Headlamp Assy, Lh
81153	81153-90A02	Ring, Sealed Beam Mounting, No.1 Rh
8113612571	81136-12571	Screw
9165160614	91651-60614	Bolt

OEM	Part name	Category
81105-90D00	Housing Sub-Assy, Headlamp, Rh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81106-90D00	Housing Sub-Assy, Headlamp, Lh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81110-25130	Headlamp Assy, Rh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81110-25131	Headlamp Assy, Rh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81111-89117	Ring, Sealed Beam Retaining	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81113-90A02	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81121-62010	Spring, Headlamp Tension	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81131-10031	Screw, Headlamp Adjusting	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81136-12571	Screw	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81150-25110	Headlamp Assy, Lh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81150-25111	Headlamp Assy, Lh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
81153-90A02	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
90981-01050	Sealed Beam Unit, No.1	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
90981-01054	Sealed Beam Unit, No.1	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
90981-22004	Bulb(For Headlamp, No.1)	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
91651-60614	Bolt	Headlamp ([05.1995 - ] (9505- )LH8#,LY15#)
