Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories

5,200 items

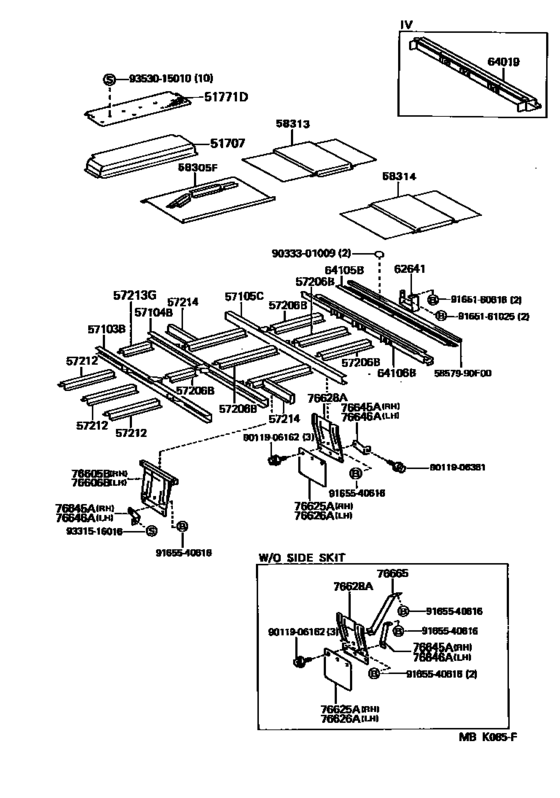

Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- )) 45

#	OEM	Part name
51707	51707-90D01	Step Sub-Assy, Rh
51771	51771-90D01	Plate, Step Rh
57103	57103-90D06	Crossmember Sub-Assy, Floor, No.3
57104	57104-90D05	Crossmember Sub-Assy, Floor, No.4
57104	57104-90D04	Crossmember Sub-Assy, Floor, No.4
57105	57105-90D04	Crossmember Sub-Assy, Floor, No.5
57105	57105-90D03	Crossmember Sub-Assy, Floor, No.5
57206	57206-90D04	Strength Sub-Assy, Anchor
57206	57206-90D05	Strength Sub-Assy, Anchor
57206	57206-90D06	Strength Sub-Assy, Anchor
57206	57215-90D04	Strength Sub-Assy, Anchor
57212	57201-26010	Strength, Anchor, No.2
57212	57212-90D02	Strength, Anchor, No.2
57213	57213-90D04	Strength, Anchor, No.3
57214	57214-90D02	Strength, Anchor, No.4
58305	58305-90D01	Panel Sub-Assy, Rear Floor Side, Rh
58313	58313-90D02	Panel, Rear Floor Side, Rh
64105	64105-26020	Rail Sub-Assy, Lower Back, Outer
64105	64105-90D07	Rail Sub-Assy, Lower Back, Outer
64105	64105-90D11	Rail Sub-Assy, Lower Back, Outer
64105	64105-26010	Rail Sub-Assy, Lower Back, Outer
64105	64105-90D06	Rail Sub-Assy, Lower Back, Outer
64105	64105-90D10	Rail Sub-Assy, Lower Back, Outer
64106	64106-90D06	Rail Sub-Assy, Lower Back, Inner
64106	64106-90D09	Rail Sub-Assy, Lower Back, Inner
64106	64106-90D11	Rail Sub-Assy, Lower Back, Inner
76605	76605-90D04	Mudguard Sub-Assy, Rear Body, Front Rh
76606	76606-90D02	Mudguard Sub-Assy, Rear Body, Front Lh
76625	76625-90D00	Mudguard, Rear Body, Rh
76628	76628-90D02	Mudguard, Rear Body, Rear
76628	76628-90D04	Mudguard, Rear Body, Rear
76645	76645-90D01	Bracket, Rear Body Mudguard No.1, Rh
76646	76646-90D01	Bracket, Rear Body Mudguard No.1, Lh
5857990	58579-90F00	Set Plate, Rear Floor Carpet, No.1
9011906162	90119-06162	New Genuine Part
9011906162	90119-06361	BOLT WWASHER
9011906381	90119-06381	New Genuine Part
9011906381	90119-06294	BOLT
9033301009	90333-01009	New Genuine Part
9165160616	91651-60616	BOLT
9165161025	91651-61025	Bolt with washer
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9331516016	93315-16016	New Genuine Part
9353015010	93530-15010	New Genuine Part

OEM	Part name	Category
51707-90D01	Step Sub-Assy, Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
51771-90D01	Plate, Step Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57103-90D06	Crossmember Sub-Assy, Floor, No.3	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57104-90D04	Crossmember Sub-Assy, Floor, No.4	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57104-90D05	Crossmember Sub-Assy, Floor, No.4	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57105-90D03	Crossmember Sub-Assy, Floor, No.5	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57105-90D04	Crossmember Sub-Assy, Floor, No.5	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57201-26010	Strength, Anchor, No.2	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57206-90D04	Strength Sub-Assy, Anchor	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57206-90D05	Strength Sub-Assy, Anchor	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57206-90D06	Strength Sub-Assy, Anchor	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57212-90D02	Strength, Anchor, No.2	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57213-90D04	Strength, Anchor, No.3	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57214-90D02	Strength, Anchor, No.4	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
57215-90D04	Strength Sub-Assy, Anchor	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
58305-90D01	Panel Sub-Assy, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
58313-90D02	Panel, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
58579-90F00	Set Plate, Rear Floor Carpet, No.1	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-26010	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-26020	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-90D06	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-90D07	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-90D10	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64105-90D11	Rail Sub-Assy, Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64106-90D06	Rail Sub-Assy, Lower Back, Inner	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64106-90D09	Rail Sub-Assy, Lower Back, Inner	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
64106-90D11	Rail Sub-Assy, Lower Back, Inner	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76605-90D04	Mudguard Sub-Assy, Rear Body, Front Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76606-90D02	Mudguard Sub-Assy, Rear Body, Front Lh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76625-90D00	Mudguard, Rear Body, Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76628-90D02	Mudguard, Rear Body, Rear	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76628-90D04	Mudguard, Rear Body, Rear	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76645-90D01	Bracket, Rear Body Mudguard No.1, Rh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
76646-90D01	Bracket, Rear Body Mudguard No.1, Lh	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
90119-06162	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
90119-06294	BOLT	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
90119-06361	BOLT WWASHER	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
90119-06381	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
90333-01009	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
91651-60614	Bolt	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
91651-60616	BOLT	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
91651-61025	Bolt with washer	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
91655-40616	Bolt	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
93315-16016	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
93530-15010	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1985 - ] (8508- ))
