Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories

5,200 items

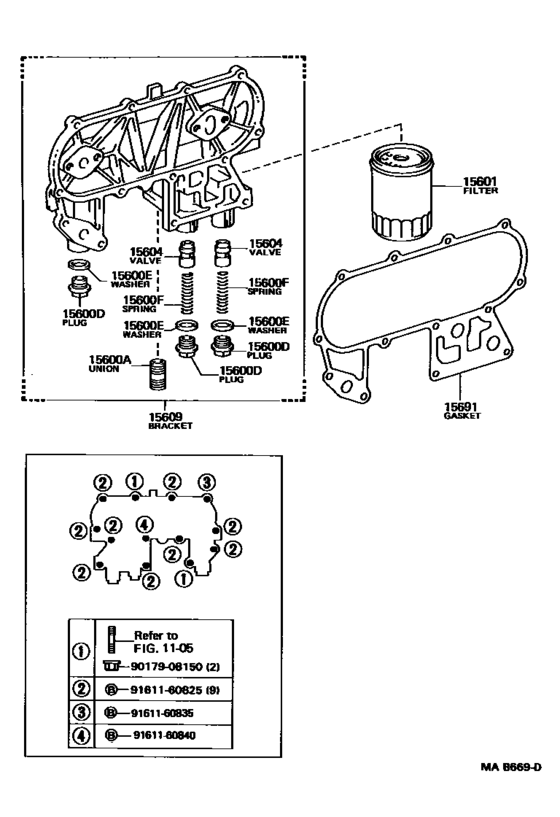

Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85) 22

#	OEM	Part name
15600	15116-54010	Screw, Oil Cooler Set
15600	90404-19011	Union(For Oil Filter)
15600	90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)
15600	90430-18001	Gasket, Straight Screw Plug No.1(For Cylinder Block)
15600	90430-18011	Washer(For Oil Filter)
15600	90430-18021	Washer(For Oil Filter)
15600	90430-18029	Washer(For Oil Filter)
15600	90501-16026	Spring, Compression(For Oil Filter)
15601	15600-41010	Filter Assy, Oil
15601	90915-40002	Filter Assy, Oil
15604	15131-54010	Valve, Oil Pump Relief
15609	15609-54012	Bracket Sub-Assy, Oil Filter
15609	15609-54013	Bracket Sub-Assy, Oil Filter
15691	15692-54020	Gasket, Oil Filter
15691	15692-54040	Gasket, Oil Filter
15691	15692-54030	Gasket, Oil Filter
15691	15692-54050	Gasket, Oil Filter
9017908150	90179-08150	NUT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161160840	91611-60840	BOLT

OEM	Part name	Category
15116-54010	Screw, Oil Cooler Set	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15131-54010	Valve, Oil Pump Relief	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15600-41010	Filter Assy, Oil	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15609-54012	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15609-54013	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15692-54020	Gasket, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15692-54030	Gasket, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15692-54040	Gasket, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
15692-54050	Gasket, Oil Filter	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90179-08150	NUT	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90404-19011	Union(For Oil Filter)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90430-18001	Gasket, Straight Screw Plug No.1(For Cylinder Block)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90430-18011	Washer(For Oil Filter)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90430-18021	Washer(For Oil Filter)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90430-18029	Washer(For Oil Filter)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90501-16026	Spring, Compression(For Oil Filter)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
90915-40002	Filter Assy, Oil	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
91611-60840	BOLT	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Oil Filter ([08.1985 - 08.1988] (8508-8808) ; (8808-8910)2L..LH85)
