Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories
LH80 ×

← Back to categories

5,200 items

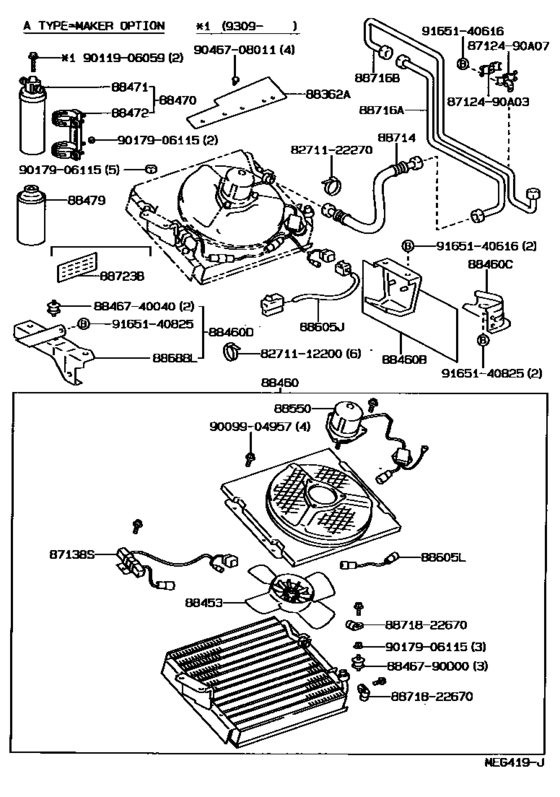

Heating & Air Conditioning - Cooler Piping ([08.1985 - ] (8508- )LH80) 60
#OEMPart name
87138 87138-95410 Resistor, Blower
88362 88362-90D04 Plate,seal
88453 88453-95A01 Fan, Cooling (For Condenser)
88460 88460-26200 Condenser Assy, Cooler
88460 88460-90D05 Condenser Assy, Cooler
88460 88409-90D06 Bracket, Cooler Condenser, No.1
88460 88688-90D09 Bracket, Cooler Condenser, No.2
88460 88409-90D07 Bracket, Cooler Condenser, No.3
88460 88409-90D08 Bracket, Cooler Condenser, No.3
88470 88470-26080 Receiver & Dryer Assy, Cooler
88470 88470-90D00 Receiver & Dryer Assy, Cooler
88471 88470-14010 Receiver & Dryer Assy, Cooler
88471 04884-33110 New Genuine Part
88471 88471-20050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88473-37010 Bracket, Receiver Tank, No.1
88472 88473-90D00 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88479 90986-02006 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550 87104-95406 Motor Assy, Blower (For Condenser)
88605 88605-90D07 Harness Sub-Assy, Air Conditioner Wiring
88605 88605-26660 Harness Sub-Assy, Wiring Air Conditioner
88688 88688-90D11 Bracket, Cooler Condenser, No.3
88714 88721-26190 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-90D02 Hose, Cooler Refrigerant Liquid, No.1
88716 88716-26530 Pipe, Cooler Refrigerant Liquid, A
88716 88716-90D17 Pipe, Cooler Refrigerant Liquid, A
88716 88716-26520 Pipe, Cooler Refrigerant Liquid, B
88716 88716-90D16 Pipe, Cooler Refrigerant Liquid, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
8712490 87124-90A03 Clamp, Heater
8712490 87124-90A07 Clamp, Heater
8846790 88467-90D00 Cushion, Cooler Condenser, No.1
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
8846740040 88467-40040 Insulator, Cooler Condenser Mounting
8871822670 88718-22670 Clamp(For Cooler Refrigerant Hose), No.1
9009904957 90099-04957 New Genuine Part
9011906059 90119-06059 New Genuine Part
9011906059 91621-B0625 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046708011 90467-08011 Clip(For Headlamp Cover Seal)
9046708011 90467-08011-TH CLIP
9046708011 90467-08011-83 Clip(For Headlamp Cover Seal)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9338116010 93381-16010 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338556025 93385-56025 New Genuine Part
