LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories

← Back to categories

5,200 items

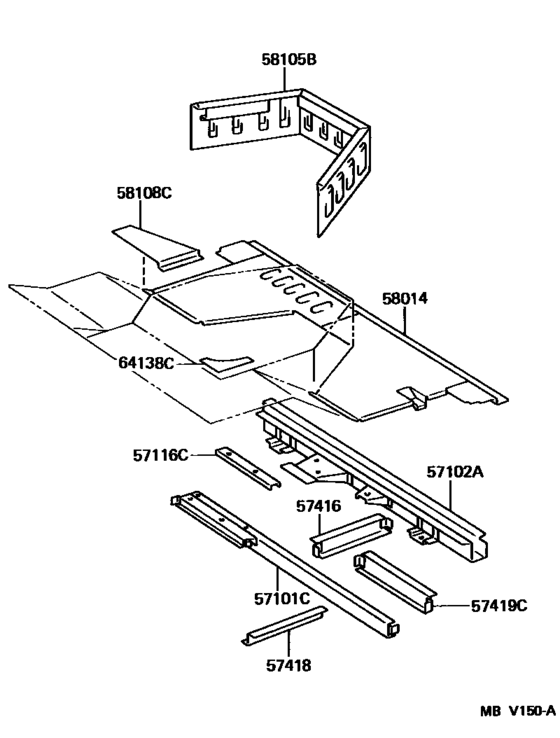

Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- )) 17

#	OEM	Part name
57101	57101-90D01	Crossmember Sub-Assy, Floor, No.1
57102	57102-26210	Crossmenber Sub-Assy, Floor, No.2
57102	57102-26270	Crossmenber Sub-Assy, Floor, No.2
57102	57102-90D03	Crossmenber Sub-Assy, Floor, No.2
57116	57116-90D00	Crossmember, Floor, No.6
57416	57416-90D00	Rail, Floor Side, Rear Lh
57418	57418-90D01	Reinforcement, Front Floor Under, Lh
57419	57419-90D00	Reinforcement, Front Floor Under, Lh No.2
58014	58014-26050	Panel Sub-Assy, Front Floor, Rear Lower
58014	58014-26060	Panel Sub-Assy, Front Floor, Rear Lower
58014	58014-90D20	Panel Sub-Assy, Front Floor, Rear Lower
58014	58014-90D21	Panel Sub-Assy, Front Floor, Rear Lower
58105	58105-90D12	Panel Sub-Assy, Front Floor Rear Upper Sub
58105	58105-90D13	Panel Sub-Assy, Front Floor Rear Upper Sub
58105	91651-40614	Bolt
58108	58108-90D01	Panel Sub-Assy, Footrest
64138	64138-90500	Patch, Back Body, Inner

OEM	Part name	Category
57101-90D01	Crossmember Sub-Assy, Floor, No.1	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57102-26210	Crossmenber Sub-Assy, Floor, No.2	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57102-26270	Crossmenber Sub-Assy, Floor, No.2	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57102-90D03	Crossmenber Sub-Assy, Floor, No.2	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57116-90D00	Crossmember, Floor, No.6	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57416-90D00	Rail, Floor Side, Rear Lh	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57418-90D01	Reinforcement, Front Floor Under, Lh	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
57419-90D00	Reinforcement, Front Floor Under, Lh No.2	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58014-26050	Panel Sub-Assy, Front Floor, Rear Lower	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58014-26060	Panel Sub-Assy, Front Floor, Rear Lower	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58014-90D20	Panel Sub-Assy, Front Floor, Rear Lower	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58014-90D21	Panel Sub-Assy, Front Floor, Rear Lower	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58105-90D12	Panel Sub-Assy, Front Floor Rear Upper Sub	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58105-90D13	Panel Sub-Assy, Front Floor Rear Upper Sub	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
58108-90D01	Panel Sub-Assy, Footrest	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
64138-90500	Patch, Back Body, Inner	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))
91651-40614	Bolt	Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 196
Collected: 2026-08-03
