Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories
LH80 ×

← Back to categories

5,200 items

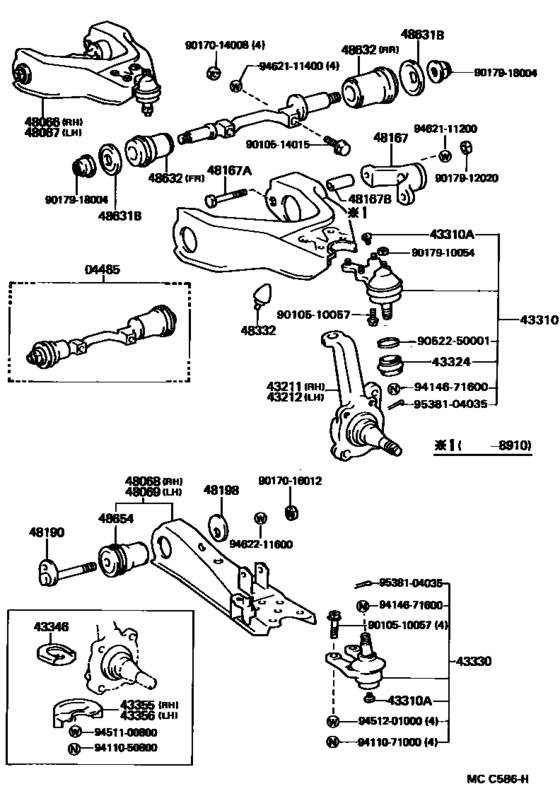

Front Axle Arm & Steering Knuckle ([08.1985 - ] (8508- )LH80) 60
#OEMPart name
4485 04485-26040 Shaft Kit, Upper Suspension Arm
4485 04485-26120 Shaft Kit, Upper Suspension Arm - FRONT SUSPENSION UPPER ARM, RH
4485 04485-26050 Shaft Kit, Upper Suspension Arm
43211 43211-26051 Knuckle, Steering, Rh
43212 43212-26021 Knuckle, Steering, Lh
43310 43350-29055 Joint Assy, Upper Ball
43310 43350-29056 Joint Assy, Upper Ball
43310 43350-29065 Joint Assy, Upper Ball
43310 43350-29095 Joint Assy, Upper Ball
43310 43360-29075 Joint Assy, Upper Ball
43310 43360-29076 Joint Assy, Upper Ball
43310 90345-06014 Plug (For Ball Joint)
43324 43324-26020 Cover, Upper Joint Dust
43330 43330-29155 Joint Assy, Lower Ball, Front
43330 43330-29535 Joint Assy, Lower Ball, Front
43346 43346-26010 Protector, Lower Ball Joint Dust Cover
43355 43355-26010 Deflector, Lower Arm Ice, Rh
48066 48610-26041 Arm Sub-Assy, Front Suspension, Upper Rh
48066 48610-29015 Arm Sub-Assy, Front Suspension, Upper Rh
48066 48610-29085 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48630-26041 Arm Sub-Assy, Front Suspension, Upper Lh
48067 48630-29015 Arm Sub-Assy, Front Suspension, Upper Lh
48067 48630-29075 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48068-26022 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069 48069-26022 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-26011 Arm, Torque
48167 48106-26050 Arm, Torque
48167 90101-12131 Bolt(For Torque Arm Setting)
48167 90105-12183 Bolt(For Alternator)
48167 90105-12200 Bolt(For Torque Arm Setting)
48167 90440-20010 Tube(For Torque Arm Setting Bolt)
48190 48190-26010 Cam Assy, Camber Adjust
48190 48190-26020 Cam Assy, Camber Adjust
48198 48198-26010 Cam, Camber Adjust, No.2
48332 48332-35020 Bumper, Front Spring, No.2
48631 90948-02065 Retainer, Cushion(For Front Suspension Upper Arm Rh)
48631 90948-02066 Retainer, Cushion(For Front Suspension Upper Arm Rh)
48631 90948-02142 Retainer, Cushion(For Front Suspension Upper Arm Rh) - REAR (refer to scheme)
48631 90948-02143 Retainer, Cushion(For Front Suspension Upper Arm) - FRONT (refer to scheme)
48632 48632-26010 Bush, Upper Arm - FRONT (refer to scheme)
48632 48635-26010 Bush, Upper Arm
48654 48061-26010 Bush, Lower Arm
9010510057 90105-10057 Bolt (For Front Lower Ball Joint)
9010514015 90105-14015 Bolt, Upper Arm Set
9017014008 90170-14008 NUT
9017016012 90170-16012 NUT
9017016012 90170-16023 NUT
9017910054 90179-10054 Nut, No.1 (For Center Support Bearing)
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9017918004 90179-18004 Nut
9052250001 90522-50001 Ring, Set (For Dust Cover)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9411071000 94110-71000 Nut(For Backing Plate To Rear Axle Housing Setting)
9414671600 94146-71600 Nut, Castle (For Front Lower Ball Joint Setting)
9451100800 94511-00800 WASHERSPRING
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9462111200 94621-11200 New Genuine Part
9462111400 94621-11400 WASHER
9462211600 94622-11600 WASHER
9538104035 95381-04035 PIN
