Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories

5,200 items

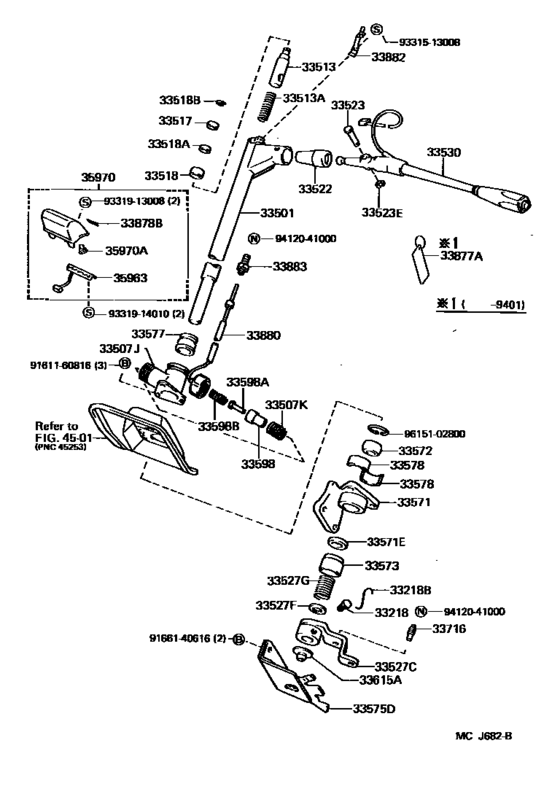

Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC) 58

#	OEM	Part name
33218	33218-35010	Bolt, Shift Lever Lock
33218	90580-14002	Wire(For Shift Lever Lock Bolt)
33501	33501-26230	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-26240	Shaft Sub-Assy, Control (For Column Shift)
33507	33507-26010	Support Sub-Assy, Control Shaft (For Column Shift)
33507	90501-10137	Spring, Compression (For Control Shaft Support)
33513	33513-26020	Shaft, Control Shaft Bracket, Upper
33513	33513-36020	Shaft, Control Shaft Bracket, Upper
33513	90501-14395	Spring, Compression (For Bracket Upper Shaft)
33517	33517-30010	Retainer, Control Shaft Upper Spring
33518	33518-35010	Bush, Upper Control Shaft Piece
33518	33518-36010	Bush, Upper Control Shaft Piece
33518	33515-30010	Seat, Control Shaft Upper
33518	90523-06019	Ring, E (For Upper Control Shaft Piece Bush)
33522	33522-36010	Seat, Shift Lever Plate (For Column Shift)
33523	90249-07001	Pin, Shift Lever (For Column Shift)
33523	96160-00500	Ring, E(For Over Center Lever)
33527	33527-26090	Lever, Control Shift (For Column Shift)
33527	90201-17044	Washer, Plate (For Control Shift Lever)
33527	90201-17048	Washer, Shift Lever Shaft Housing, No.2
33527	90501-12115	Spring, Compression (For Control Shift Lever)
33530	33530-26020	Lever Assy, Shift (For Column Shift)
33530	33530-26050	Lever Assy, Shift (For Column Shift)
33571	33571-26040	Bracket, Control Shaft, Lower (For Column Shift)
33571	90303-17001	Seal, Dust (For Control Shaft Lower Bracket)
33571	90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)
33572	33572-28010	Bush, Control Shaft Lower (For Column Shift)
33573	33573-26050	Cover, Control Shaft Dust, Lower
33575	33575-26070	Retainer, Control Shift Lever (For Column Shift)
33577	33577-27010	Cover, Control Shaft Hole
33577	33577-27020	Cover, Control Shaft Hole
33578	33578-28010	Seat, Control Shaft Lower Bush, No.1
33598	33598-35010	Holder, Select Shatt Lock Pin (For Column Shift)
33598	90249-06124	Pin (For Column Shift Select Shaft Lock Pin Holder)
33598	90501-05020	Spring, Compression (For Select Shaft Lock Pin Holder)
33615	33615-26010	Bush (For Column Shift Control Shaft)
33716	33716-26010	Pin, Control Shaft Lever Stopper
33877	33877-27010	Label, Shift Lock Information
33878	33878-27020	Label, Shift Lock Information, No.2
33880	33880-26010	Cable Assy, Parking Lock (For Column Shift)
33882	33882-26011	Piece, Control Shaft, Upper
33882	33882-27010	Piece, Control Shaft, Upper
33883	33883-35010	Holder, Cable End Rod
33883	33883-35020	Holder, Cable End Rod
35963	35963-26030	Plate, Indicator Lamp Earth (For Column Shift)
35970	35970-26050-26	Housing Assy, Position Indicator (For Column Shift)
35970	35970-26070-06	Housing Assy, Position Indicator (For Column Shift)
35970	35970-26070-B0	Housing Assy, Position Indicator (For Column Shift)
35970	90981-11024	Bulb (For Column Shift Position Indicator Lamp)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9166140616	91661-40616	New Genuine Part
9331513008	93315-13008	New Genuine Part
9331913008	93319-13008	New Genuine Part
9331914010	93319-14010	SCREW
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9615102800	96151-02800	Ring, Snap (For Control Shaft Lower Bush Seat)

OEM	Part name	Category
33218-35010	Bolt, Shift Lever Lock	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33501-26230	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33501-26240	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33507-26010	Support Sub-Assy, Control Shaft (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33513-26020	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33513-36020	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33515-30010	Seat, Control Shaft Upper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33517-30010	Retainer, Control Shaft Upper Spring	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33518-35010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33518-36010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33522-36010	Seat, Shift Lever Plate (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33527-26090	Lever, Control Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33530-26020	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33530-26050	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33571-26040	Bracket, Control Shaft, Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33572-28010	Bush, Control Shaft Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33573-26050	Cover, Control Shaft Dust, Lower	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33575-26070	Retainer, Control Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33577-27010	Cover, Control Shaft Hole	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33577-27020	Cover, Control Shaft Hole	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33578-28010	Seat, Control Shaft Lower Bush, No.1	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33598-35010	Holder, Select Shatt Lock Pin (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33615-26010	Bush (For Column Shift Control Shaft)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33716-26010	Pin, Control Shaft Lever Stopper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33877-27010	Label, Shift Lock Information	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33878-27020	Label, Shift Lock Information, No.2	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33880-26010	Cable Assy, Parking Lock (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33882-26011	Piece, Control Shaft, Upper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33882-27010	Piece, Control Shaft, Upper	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33883-35010	Holder, Cable End Rod	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
33883-35020	Holder, Cable End Rod	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
35963-26030	Plate, Indicator Lamp Earth (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
35970-26050-26	Housing Assy, Position Indicator (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
35970-26070-06	Housing Assy, Position Indicator (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
35970-26070-B0	Housing Assy, Position Indicator (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90170-A0002	Nut	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90201-17044	Washer, Plate (For Control Shift Lever)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90201-17048	Washer, Shift Lever Shaft Housing, No.2	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90249-06124	Pin (For Column Shift Select Shaft Lock Pin Holder)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90249-07001	Pin, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90303-17001	Seal, Dust (For Control Shaft Lower Bracket)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90501-05020	Spring, Compression (For Select Shaft Lock Pin Holder)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90501-10137	Spring, Compression (For Control Shaft Support)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90501-12115	Spring, Compression (For Control Shift Lever)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90501-14395	Spring, Compression (For Bracket Upper Shaft)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90523-06019	Ring, E (For Upper Control Shaft Piece Bush)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90580-14002	Wire(For Shift Lever Lock Bolt)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
90981-11024	Bulb (For Column Shift Position Indicator Lamp)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
91611-B0816	Bolt	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
91661-40616	New Genuine Part	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
93315-13008	New Genuine Part	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
93319-13008	New Genuine Part	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
93319-14010	SCREW	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
94120-41000	Nut(For Clutch Pedal Stopper)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
96151-02800	Ring, Snap (For Control Shaft Lower Bush Seat)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
96160-00500	Ring, E(For Over Center Lever)	Control Shaft & Crossshaft ([10.1989 - ] (8910- )4HC)
