Search › Model › LH80

LH80

Toyota HIACE · 1985 · 5,200 parts · 196 categories

5,200 items

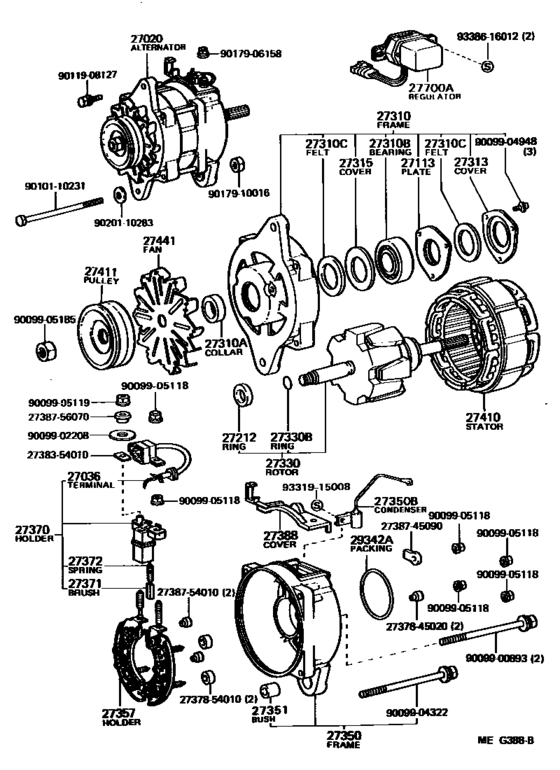

Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85) 62

#	OEM	Part name
27020	27020-54200	Alternator Assy
27020	27020-54380	Alternator Assy
27020	27020-54381	Alternator Assy
27020	27020-54382	Alternator Assy
27020	27020-54383	Alternator Assy
27036	27036-54010	Terminal Sub-Assy, Lead Wire, Alternator
27113	27312-57060	Plate, Bearing Retainer, Alternator
27212	27333-57060	Ring, Space(For Alternator Rotor)
27310	27310-54110	Frame Assy, Drive End, Alternator
27310	27310-54111	Frame Assy, Drive End, Alternator
27310	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-54200	Rotor Assy, Alternator
27330	27330-54201	Rotor Assy, Alternator
27330	27330-54202	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27350	27350-54190	Frame Assy, Rectifier End
27350	90099-52082	Condenser, Alternator
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27357	27357-54190	Holder, Alternator, W/rectifier
27370	27370-54010	Holder Assy, Alternator Brush
27370	27370-54250	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27388	27388-54200	Cover, Frame Brush
27388	27388-54341	Cover, Alternator Brush
27388	27388-64010	Cover, Frame Brush
27410	27410-64090	Stator Assy, Alternator
27410	27410-54380	Stator Assy, Alternator
27411	27411-54170	Pulley, Alternator
27411	27411-54171	Pulley, Alternator
27411	27411-54350	Pulley, Alternator
27411	27411-54351	Pulley, Alternator
27441	27441-56090	Fan, Alternator
27700	27700-35030	Regulator Assy, Generator
27700	27700-13040	Regulator Assy, Generator
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9009900893	90099-00893	BOLT
9009902208	90099-02208	New Genuine Part
9009904322	90099-04322	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905185	90099-05185	NUT
9010110231	90101-10231	Bolt(For Alternator)
9011908127	90119-08127	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9331915008	93319-15008	SCREW
9338616012	93386-16012	New Genuine Part

OEM	Part name	Category
27020-54200	Alternator Assy	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27020-54380	Alternator Assy	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27020-54381	Alternator Assy	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27020-54382	Alternator Assy	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27020-54383	Alternator Assy	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27036-54010	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27310-54110	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27310-54111	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27330-54200	Rotor Assy, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27330-54201	Rotor Assy, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27330-54202	Rotor Assy, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27350-54190	Frame Assy, Rectifier End	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27357-54190	Holder, Alternator, W/rectifier	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27370-54010	Holder Assy, Alternator Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27370-54250	Holder Assy, Alternator Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27371-54412	Brush, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27371-56070	Brush, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27372-56070	Spring, Alternator Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27378-45020	Insulator, Alternator, No.1	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27378-54010	Insulator, Alternator, No.2	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27387-45090	Insulator, Terminal	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27387-54010	Insulator, Terminal	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27387-56070	Insulator, Terminal	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27388-54200	Cover, Frame Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27388-54341	Cover, Alternator Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27388-64010	Cover, Frame Brush	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27410-54380	Stator Assy, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27410-64090	Stator Assy, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27411-54170	Pulley, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27411-54171	Pulley, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27411-54350	Pulley, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27411-54351	Pulley, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27441-56090	Fan, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27700-13040	Regulator Assy, Generator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
27700-35030	Regulator Assy, Generator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-00893	BOLT	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-02208	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-04322	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-04948	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-05118	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-05119	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-05185	NUT	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-14055	Packing, Vacuum Pump	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90099-52082	Condenser, Alternator	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90101-10231	Bolt(For Alternator)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90119-08127	BOLT	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90179-10132	Nut	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
93319-15008	SCREW	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
93386-16012	New Genuine Part	Alternator ([08.1985 - ] 12V 45A (8508- ) ; (8708-8808)2L..LH80..4HC ; (8708-8 808)2L..LH80..5H..D ; (8711- )2L ..LH85)
