LH66V

Toyota HIACE · 1986 · 4,167 parts · 175 categories

4,167 items

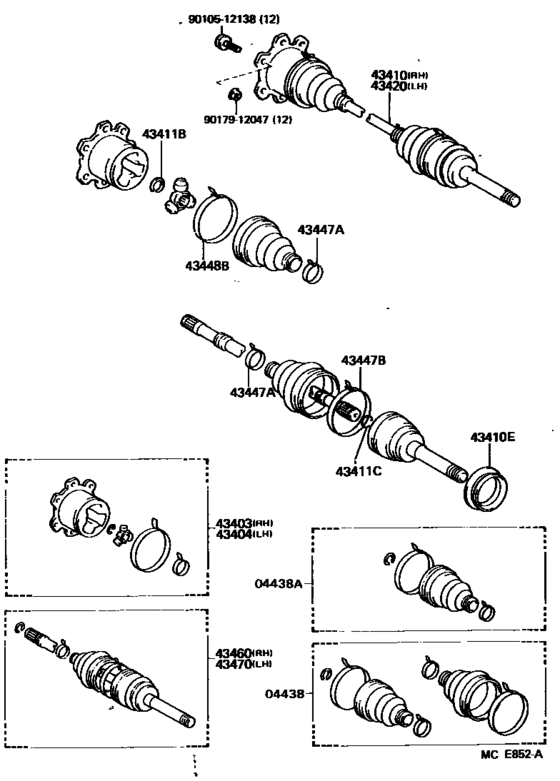

Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57) 20

#	OEM	Part name
4438	04438-35021	Boot Kit, Front Drive Shaft
4438	04428-35010	Boot Kit, Front Drive Shaft
4438	04438-35011	Boot Kit, Front Drive Shaft Inboard Joint
4438	04437-25011	Boot Kit, Front Drive Shaft Inboard Joint
43403	43403-39035	Joint Set, Front Axle Inboard
43403	43403-26010	Joint Assy, Front Drive Inboard
43410	43430-26011	Shaft Assy, Front Drive, Rh
43410	43430-26015	Shaft Assy, Front Drive
43410	90316-60004	Seal, Oil (For Steering Knuckle)
43410	90304-76002	Cover, Dust (For Front Drive Shaft)
43410	90304-76005	Seal, Dust(For Front Axle Outer Shaft)
43411	90520-29028	Ring, Snap (For Rear Drive Shaft)
43411	90520-27091	Ring, Shaft Snap (For Rear Drive Shaft Outboard Joint)
43447	90949-01221	Clamp, Rear Drive Shaft Boot
43447	90949-01135	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)
43448	90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43460	43460-29065	Shaft Assy, Front Drive Outboard Joint
43460	43460-29068	Shaft Assy, Front Drive Outboard Joint
9010512138	90105-12138	Bolt
9017912047	90179-12047	Nut(For Front Stabilizer Link)

OEM	Part name	Category
04428-35010	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
04437-25011	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
04438-35011	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
04438-35021	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43403-26010	Joint Assy, Front Drive Inboard	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43403-39035	Joint Set, Front Axle Inboard	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43430-26011	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43430-26015	Shaft Assy, Front Drive	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43460-29065	Shaft Assy, Front Drive Outboard Joint	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
43460-29068	Shaft Assy, Front Drive Outboard Joint	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90105-12138	Bolt	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90179-12047	Nut(For Front Stabilizer Link)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90304-76002	Cover, Dust (For Front Drive Shaft)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90304-76005	Seal, Dust(For Front Axle Outer Shaft)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90316-60004	Seal, Oil (For Steering Knuckle)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90520-27091	Ring, Shaft Snap (For Rear Drive Shaft Outboard Joint)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90520-29028	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90949-01135	Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90949-01221	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
90949-01222	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1987 - ] (8708- )LH56,66,YH57)
