Search › Model › LH61

LH61

Toyota HIACE · 1984 · 4,503 parts · 166 categories

4,503 items

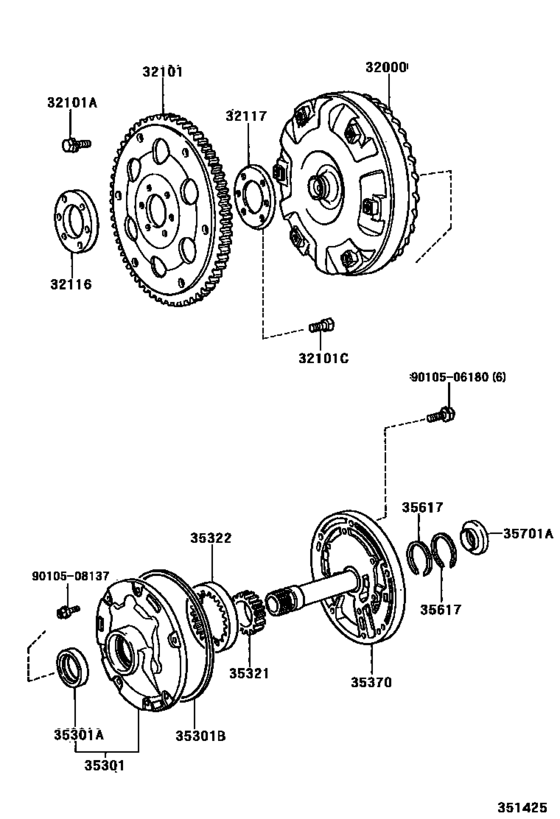

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM) 31

#	OEM	Part name
32000	32000-26010	Converter Assy, Torque
32000	32000-28011	Converter Assy, Torque
32101	32101-30051	Gear Sub-Assy, Drive Plate & Ring
32101	32101-30052	Gear Sub-Assy, Drive Plate & Ring
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08554	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12014	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-30020	Spacer, Drive Plate, Front
32116	32116-35010	Spacer, Drive Plate, Front
32117	32117-30020	Spacer, Drive Plate, Rear
32117	32117-35010	Spacer, Drive Plate, Rear
35301	35301-14010	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99010	Ring, O (For Front Oil Pump Body)
35321	35321-14010	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22020	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22030	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22040	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22050	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22060	Gear Sub-Assy, Front Oil Pump Drive
35322	35322-14010	Gear, Front Oil Pump Driven
35322	35322-22020	Gear, Front Oil Pump Driven
35322	35322-22030	Gear, Front Oil Pump Driven
35322	35322-22040	Gear, Front Oil Pump Driven
35322	35322-22050	Gear, Front Oil Pump Driven
35322	35322-22060	Gear, Front Oil Pump Driven
35370	35370-14012	Shaft Sub-Assy, Stator
35617	35617-16010	Ring, Oil Seal (For Overdrive Case)
35701	90374-25003	Bearing, Thrust (For Input Shaft Front)
9010506180	90105-06180	New Genuine Part
9010508137	90105-08137	Bolt (For Front Oil Pump Setting)

OEM	Part name	Category
32000-26010	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32000-28011	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32101-30051	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32101-30052	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32116-30020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32116-35010	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32117-30020	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
32117-35010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35301-14010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-14010	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-22020	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-22030	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-22040	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-22050	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35321-22060	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-14010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-22020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-22030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-22040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-22050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35322-22060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35370-14012	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90105-06180	New Genuine Part	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90105-08137	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90105-12014	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90119-08554	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90301-99010	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
90374-25003	Bearing, Thrust (For Input Shaft Front)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] (8708- )A44DL,A45DL (8708- )ATM)
