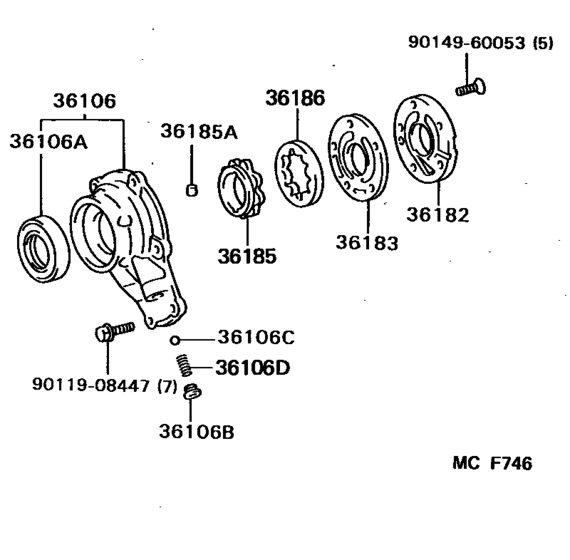

| 36106-25010 |
Body Sub-Assy, Transfer Oil Pump |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36106-28020 |
Body Sub-Assy, Transfer Oil Pump |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36182-28010 |
Cover, Transfer Oil Pump |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36183-28010 |
Plate, Transfer Oil Pump |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36185-25010 |
Rotor, Transfer Oil Pump Drive |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36185-28010 |
Rotor, Transfer Oil Pump Drive |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36186-25010 |
Rotor, Transfer Oil Pump Driven |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 36186-28010 |
Rotor, Transfer Oil Pump Driven |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90119-08447 |
Bolt(For Intake Manifold To Exhaust Manifold) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90149-60053 |
Screw(For Transmission Oil Pump Cover) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90250-05025 |
Pin, Straight(For Transfer Oil Pump Drive Rotor) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90310-40002 |
Seal, Oil (For Transfer Oil Pump Body) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90310-40005 |
Seal, Oil (For Transfer Oil Pump Body) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90341-12014 |
Plug, W/head Straight Screw, No.1(For Cylinder Block) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90360-10003 |
Ball(For Transmission Oil Pump Cover) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 90501-09068 |
Spring, Compression (For Transfer Oil Pump Body) |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
| 91611-60822 |
Bolt |
Transfer Oil Pump ([08.1987 - ] (8708- )LH56,66,YH57) |
