Search › Model › LH50G

LH50G

Toyota HIACE · 1982 · 4,852 parts · 168 categories

4,852 items

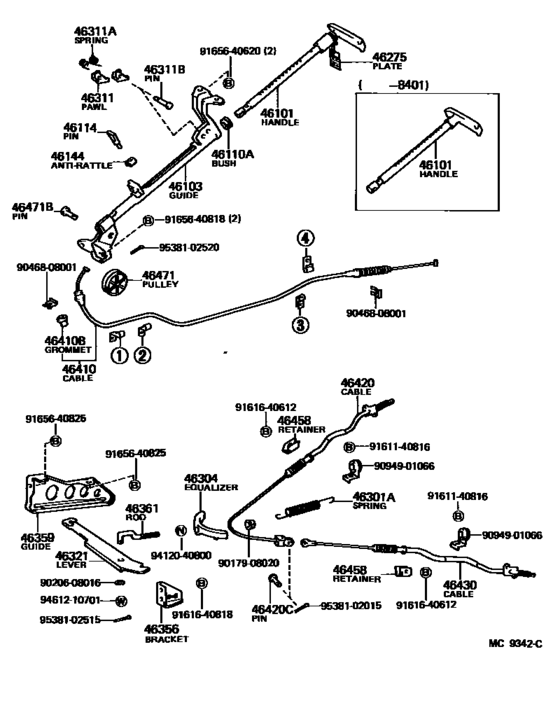

Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG) 47

#	OEM	Part name
46101	46101-26060	Handle Sub-Assy, Parking Brake Control
46101	46101-26061	Handle Sub-Assy, Parking Brake Control
46101	46120-26010	Handle Sub-Assy, Parking Brake Control
46103	46103-26080	Guide Sub-Assy, Parking Brake Plunger
46110	90386-12048	Bush Or Ring, O (For Parking Brake Plunger)
46114	46114-20010	Pin(For Parking Brake Handle Set)
46144	46144-20010	Anti-Rattle, Parking Brake Plunger
46275	46275-26010	Plate, Parking Brake Release Caution
46301	90506-23002	Spring, Tension(For Intermediate Lever)
46304	46341-27010	Equalizer Sub-Assy, Parking Brake
46311	46311-26010	Pawl, Parking Brake
46311	46311-30041	Pawl, Parking Brake
46311	90508-08106	Spring, Torsion(For Parking Brake Plunger)
46311	46313-40010	Pin, Parking Brake Pawl
46321	46321-26050	Lever, Parking Brake Intermediate
46356	46356-26060	Bracket, Equalizer Support
46359	46359-26050	Guide, Parking Brake Intermediate Lever
46361	46361-26010	Rod, Parking Brake Pull
46410	46410-26170	Cable Assy, Parking Brake, No.1
46410	90480-20004	Grommet(For Parking Brake Front Cable)
46420	46420-26120	Cable Assy, Parking Brake, No.2
46420	90240-06032	Pin(For Parking Brake Front Cable)
46430	46430-26080	Cable Assy, Parking Brake, No.3
46458	46458-20020	Retainer, Cable
46458	46458-50010	Retainer, Cable
46471	46471-20010	Pulley, Wire
46471	90240-08017	Pin, W/hole(For Parking Brake Cable)
9017908020	90179-08020	Nut, Wire Adjusting, No.1
9020608016	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
9046808001	90468-08001	CLIP
9094901066	90949-01066	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161640612	91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161640612	91611-G0612	Bolt
9161640818	91616-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9165640620	91656-40620	Bolt(For Oil Receiver Pipe)
9165640620	91651-60618	Bolt(For Oil Receiver Pipe)
9165640818	91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818	91651-B0814	Bolt with washer
9165640825	91656-40825	New Genuine Part
9165640825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9461210701	94612-10701	New Genuine Part
9538102015	95381-02015	New Genuine Part
9538102515	95381-02515	PIN
9538102520	95381-02520	PINCOTTER

OEM	Part name	Category
46101-26060	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46101-26061	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46103-26080	Guide Sub-Assy, Parking Brake Plunger	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46120-26010	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46144-20010	Anti-Rattle, Parking Brake Plunger	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46275-26010	Plate, Parking Brake Release Caution	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46311-26010	Pawl, Parking Brake	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46311-30041	Pawl, Parking Brake	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46313-40010	Pin, Parking Brake Pawl	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46321-26050	Lever, Parking Brake Intermediate	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46341-27010	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46356-26060	Bracket, Equalizer Support	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46359-26050	Guide, Parking Brake Intermediate Lever	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46361-26010	Rod, Parking Brake Pull	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46410-26170	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46420-26120	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46430-26080	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46458-20020	Retainer, Cable	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46458-50010	Retainer, Cable	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
46471-20010	Pulley, Wire	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90179-08020	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90240-06032	Pin(For Parking Brake Front Cable)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90240-08017	Pin, W/hole(For Parking Brake Cable)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90386-12048	Bush Or Ring, O (For Parking Brake Plunger)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90468-08001	CLIP	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90480-20004	Grommet(For Parking Brake Front Cable)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90506-23002	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90508-08106	Spring, Torsion(For Parking Brake Plunger)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
90949-01066	New Genuine Part	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91611-B0816	Bolt	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91611-G0612	Bolt	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91616-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91651-60618	Bolt(For Oil Receiver Pipe)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91651-B0814	Bolt with washer	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91656-40620	Bolt(For Oil Receiver Pipe)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
91656-40825	New Genuine Part	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
94120-40800	Nut(For Clutch Pedal Stopper)	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
94612-10701	New Genuine Part	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
95381-02015	New Genuine Part	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
95381-02515	PIN	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
95381-02520	PINCOTTER	Parking Brake & Cable ([12.1982 - ] (8212- )LH50,51,YH51..WG)
