Search › Model › LH20

LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

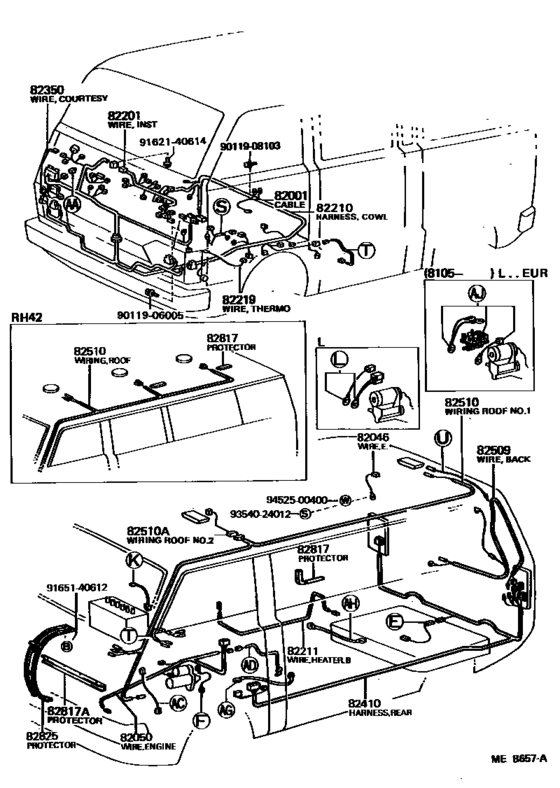

Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42) 35

#	OEM	Part name
82001	90980-07051	Cable, Bond, No.1
82001	90980-07162	Cable, Bond, No.1
82001	82046-95J00	Cable, Bond, No.1
82050	82320-95A15	Wire Assy, Engine
82050	82320-95A18	Wire Assy, Engine
82201	82201-95A09	Wiring Sub-Assy, Instrument Panel
82210	82220-95A50	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82220-95A70	Harness Assy, Wiring Cowl To Headlamp, No.1
82210	82220-95A75	Harness Assy, Wiring Cowl To Headlamp, No.1
82350	82301-95A00	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
82350	82301-95A02	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
82350	82301-95A07	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
82350	82301-95A08	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
82350	82301-95A09	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)
82410	82430-95A01	Harness Assy, Wiring To Rear Lamp
82410	82430-95A32	Harness Assy, Wiring To Rear Lamp
82410	82430-95A22	Harness Assy, Wiring To Rear Lamp
82410	82430-95A34	Harness Assy, Wiring To Rear Lamp
82410	82430-95A35	Harness Assy, Wiring To Rear Lamp
82509	82501-95A01	Wiring Sub-Assy, Back Door
82509	82401-95A01	Wire Assy, License Lamp Feed
82509	82501-95A03	Wiring Sub-Assy, Back Door
82509	82501-95A06	Wiring Sub-Assy, Back Door
82510	82510-95A10	Wiring Assy, Roof
82510	82510-95A19	Wiring Assy, Roof
82510	82510-95A25	Wiring Assy, Roof
82817	82717-95A03	Protector, Wiring Harness, No.2
82825	82707-95A02	Protector, Wiring Harness
9011906005	90119-06005	New Genuine Part
9011908103	90119-08103	New Genuine Part
9162140614	91621-40614	BOLT
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9354024012	93540-24012	New Genuine Part
9452500400	94525-00400	New Genuine Part

OEM	Part name	Category
82046-95J00	Cable, Bond, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82201-95A09	Wiring Sub-Assy, Instrument Panel	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82220-95A50	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82220-95A70	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82220-95A75	Harness Assy, Wiring Cowl To Headlamp, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82301-95A00	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82301-95A02	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82301-95A07	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82301-95A08	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82301-95A09	Wiring Assy, Courtesy Lamp Switch (For Fr Or Rr Door)	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82320-95A15	Wire Assy, Engine	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82320-95A18	Wire Assy, Engine	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82401-95A01	Wire Assy, License Lamp Feed	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82430-95A01	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82430-95A22	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82430-95A32	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82430-95A34	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82430-95A35	Harness Assy, Wiring To Rear Lamp	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82501-95A01	Wiring Sub-Assy, Back Door	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82501-95A03	Wiring Sub-Assy, Back Door	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82501-95A06	Wiring Sub-Assy, Back Door	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82510-95A10	Wiring Assy, Roof	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82510-95A19	Wiring Assy, Roof	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82510-95A25	Wiring Assy, Roof	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82707-95A02	Protector, Wiring Harness	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
82717-95A03	Protector, Wiring Harness, No.2	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
90080-11225	New Genuine Part	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
90119-06005	New Genuine Part	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
90119-08103	New Genuine Part	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
90980-07051	Cable, Bond, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
90980-07162	Cable, Bond, No.1	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
91621-40614	BOLT	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
91651-40612	BOLT	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
93540-24012	New Genuine Part	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)
94525-00400	New Genuine Part	Wiring & Clamp ([12.1980 - ] (8012- )LH20,30,RH20,22,3#,42)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 146
Collected: 2026-08-03
